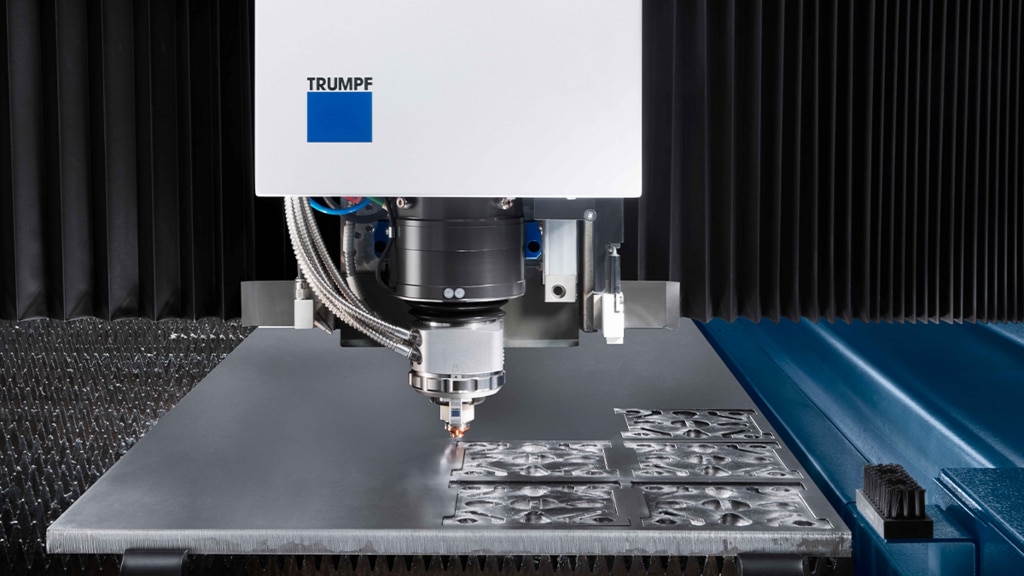

24 kW of laser cutting power

Discover the highest laser cutting power from TRUMPF. 24 kW of laser cutting power is fully utilized with the TruDisk 24001. This solid-state laser achieves the highest-productivity in the standard cutting process with the ability to cut through thick materials up to three times faster than 6 kW of power.

Productive Processing

Cut up to 3x faster compared to a 6 kW machine.

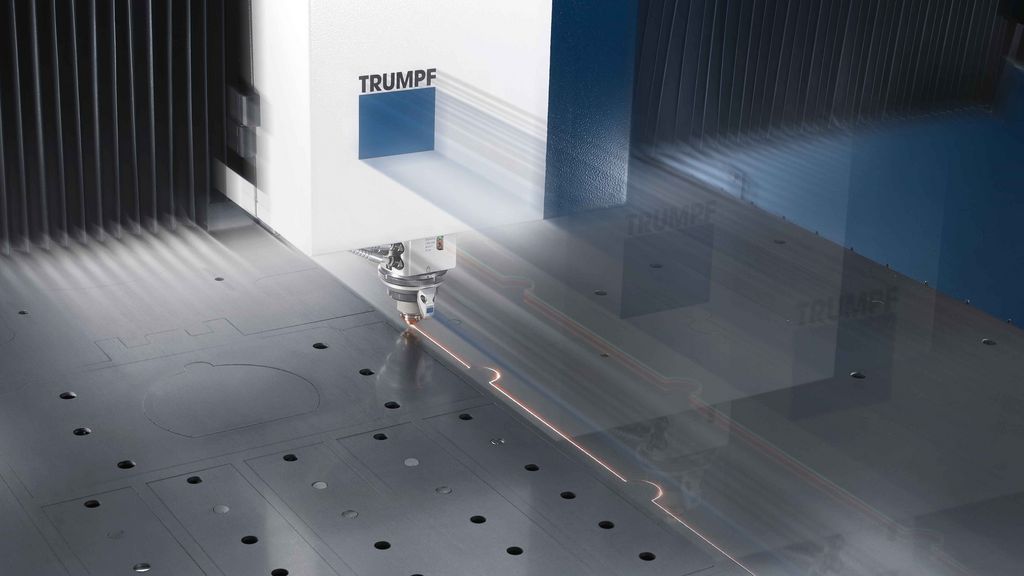

Highspeed Eco

A new nozzle design reduces nitrogen consumption by up to 70% for double the sheet throughput.

Perfect Part Quality

BrightLine fiber facilitates excellent part quality and seamless part removal.

Intricate Cutting Even in Thick Mild Steel

Create fine contours in thick mild steel with the CoolLine function.

Through Thick and Thin

Powerful cutting capabilites through material thicknesses up to 2 inches.

High Speed

The TruDisk 24001 utilizes nitrogen to cut faster than traditional cutting gasses.

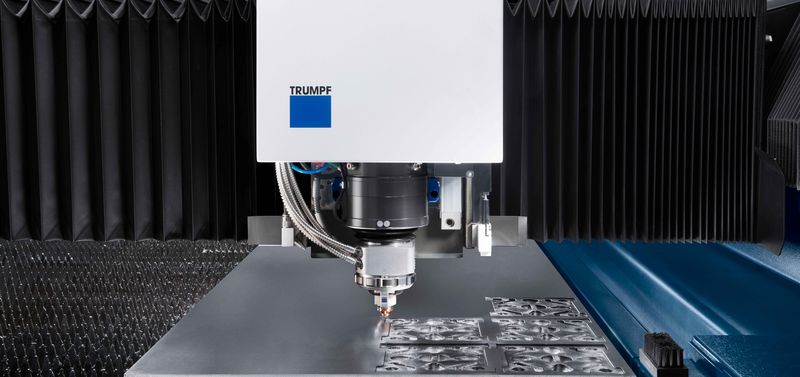

Optical Chain

The TruLaser Series 5000 fiber with 24000 watts of power is the only optical chain built specifically for ultra high-power cutting.

High Tech & High Power

TRUMPF laser cutting technology such as CoolLine, HighSpeed Eco, BrightLine fiber, and FlexLine are all optional technologies on the TruLaser Series 5000 machines to assist you in all your cutting needs.

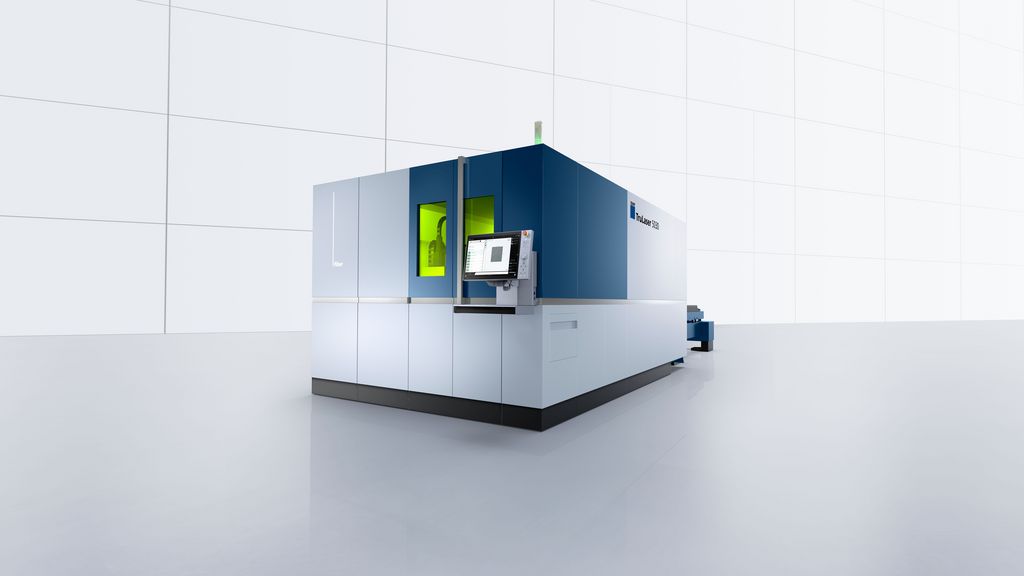

Available on the TruLaser Series 5000 machines

Equip your TruLaser Series 5000 machine with 24 kW of cutting power.

Find out more

Cutting Capabilities with 24 kW of power

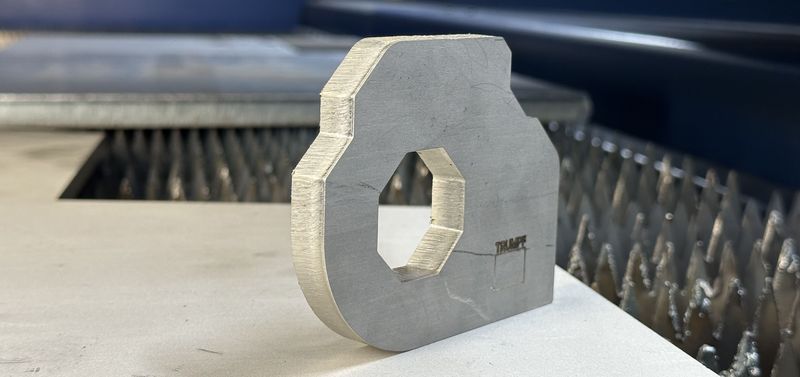

1/2 inch stainless steel

The TruDisk 24001 facilitates excellent part quality and seamless part removal. The high-power laser boosts productivity with exceptionally fast cutting, especially in thin materials.

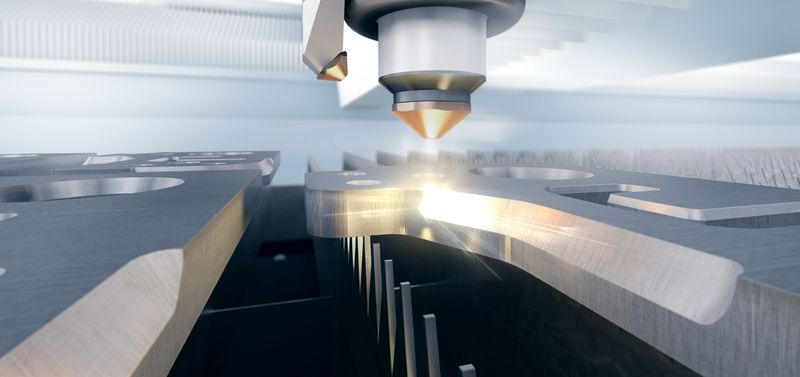

EdgeLine Bevel

Weld preparation made easy directly on your TruLaser machine. Cut chamfers, countersinks, and radii with a laser.

1 inch steel cut with mixed gas

Cutting one inch material with mixed gas results in quality cuts. The solid-state laser allows for intricate cutting even in thick mild steel.

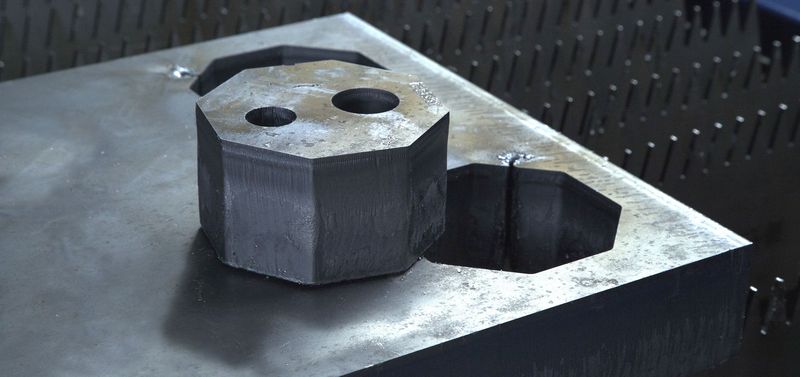

2 inch steel

The laser's full power is utilized in every cut. Our machines are designed so that every single kilowatt hits the sheet, achieving higher feed rates and higher productivity.

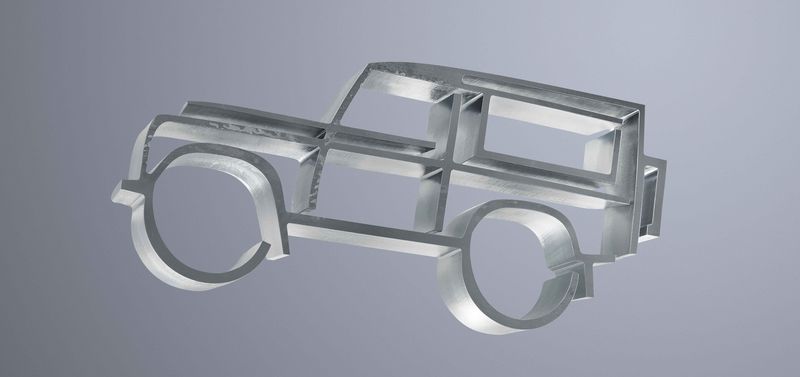

FlexLine

FlexLine technology introduces a new nozzle design for a highly reliable cutting process when handling different materials and material qualities.

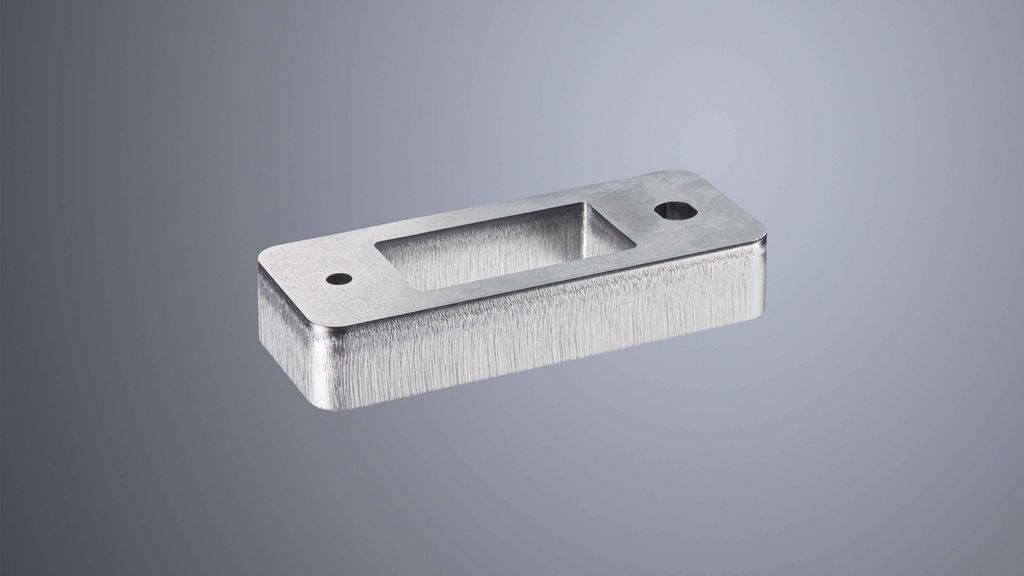

2 inch stainless steel

24 kW of cutting power gives you the best results even in difficult parts and thick material.

TruDisk 24001 Technical Data

Laser-Specific Data
Available Machines	TruLaser 5030 fiber	TruLaser 5040 fiber	TruLaser 5060 fiber
Maximum Laser Power	24000 W	24000 W	24000 W
Maximum Sheet Thickness, Mild Steel	1.5 in.	1.5 in.	1.5 in.
Maximum Mild Steel Sheet Thickness with Cutting Package for Thick Sheets	2.4 in.	2.4 in.	2.4 in.
Maximum Sheet Thickness, Stainless Steel	1.5 in.	1.5 in.	1.5 in.
Maximum Stainless Steel Thickness with Cutting Package for Thick Sheets	2.4 in.	2.4 in.	2.4 in.
Maximum Sheet Thickness, Aluminum	1.5 in.	1.5 in.	1.5 in.
Maximum Sheet Thickness, Copper	0.6 in.	0.6 in.	0.6 in.
Maximum Sheet Thickness, Brass	0.5 in.	0.5 in.	0.5 in.

Download the technical data sheet

pdf

232 KB

TruDisk 24001 Technical Data Sheet
