You can operate the TruLaser Cell 3000 intuitively and easily with the interface developed by TRUMPF on the basis of the Siemens 840D solutionline. During cutting, you can use the cutting parameters stored on the control system and optimized by TRUMPF for the most common laser types, material types, and material thicknesses.
Highly productive and versatile 5-axis laser machine
With the compact and high-precision 5-axis laser machine TruLaser Cell 3000 you can weld and cut in two or three dimensions. In addition, the 3D laser machine is also ideal for laser metal deposition (LMD). From prototypes to large-scale series production with extensive automation, this multi-talented machine displays its superiority across the board. This applies in particular to cost-effective laser processing of small to medium-sized components with top quality.
Welding, cutting, and LMD through simple and fast process adapter changes
For higher quantities the machine can be automated very simply in line with the customer's specific requirements.
Tailor-made fixture concepts with sophisticated clamping systems and sensor systems from a single source.
Easy to retrofit or upgrade with a large number of options and processing optics.
The repetition accuracy of up to < 5 µm sets new standards.
Use the full work area for large installations and comprehensive automation systems.
The 3D laser machine, TruLaser Cell 3000, is well-suited for deep welding where a very high power density, of approximately 1 megawatt per square centimeter is required. Deep welding offers high efficiency and high welding speeds. The high speed means that the heat-affected zone is small and distortion is minimal. This process is used for applications requiring high welding depths or in cases where multiple material layers are to be welded at the same time. A typical example in which this process is used is the laser welding of an automotive gear differential.
Laser-welded control gear
If a component is worn as a result of high temperatures, pressure, abrasion, or moisture, it is not always necessary to replace the entire component. Laser metal deposition is a fast and cost-effective alternative to manufacturing a new part.
Laser cutting and welding
The TruLaser Cell 3000 is used both to cut slots and to perform welding on the electromagnetic water pump coupling. The fast process adapter change means that the TruLaser Cell 3000 is extremely flexible in terms of processes.
Laser-cut stator plates
Laser cutting makes almost any contour shape possible – even intricate and complex ones – without the need for tool changes. The edges are smooth and burr-free, so there is no need for post-processing. Due to the small size of the heat-affected zone, there is virtually no distortion. Laser cutting is used particularly on metals: steels, aluminum, and alloys.
Components such as the head plate of an operating table used to be milled in a lengthy and complex process. With the aid of the TruLaser Cell 3000, the component can now be welded together from two laser-cut components, offering up cost savings in the process.
Laser-cut kitchen knives
Kitchen knives used to be stamped. This led to high tool wear and high tool costs. In addition, whenever the contour was changed the tool had to be changed. The result of this was extensive non-productive time and downtime. Today, lasers are a universal, wear-free tool that bring significant reductions in terms of cost and time. If the contour is changed, e.g. to a different knife geometry, then all that needs to be done is to change the program. In addition, there is no tool wear.
Heat protection sheet
Using the 3D laser processing of the TruLaser Cell 3000, heat protection sheets for exhaust gas systems can be laser cut, for example. As a result of the precise light from the tool, neat edges are produced and there is no heat distortion.
TruLaser Cell 3000
|Axis travel range|
|X axis travel range||800 mm|
|Y axis travel range||600 mm|
|Z axis travel range||400 mm|
|B axis travel range||± 135 °|
|Maximum axis speeds|
|Maximum axis speed, axially parallel in X||50 m/min|
|Maximum axis speed, axially parallel in Y||50 m/min|
|Maximum axis speed, axially parallel in Z||50 m/min|
|Maximum axis speed, simultaneous||85 m/min|
|Maximum axis speed of B axis||120 1/min|
|Maximum axis accelerations|
|Maximum axis acceleration, axially parallel in X||10 m/s²|
|Maximum axis acceleration, axially parallel in Y||10 m/s²|
|Maximum axis acceleration, axially parallel in Z||10 m/s²|
|Maximum axis acceleration, simultaneous||17 m/s²|
|Maximum axis acceleration of B axis||130 rad/s²|
|Positioning accuracy of linear axes (X, Y, Z)||0.015 mm|
|Positioning accuracy of rotary axes (B)||0.02 °|
|Maximum laser power||8000 W|
TruTops Cell Basic
TruTops Cell Basic enables you to edit the cutting program directly at the machine. You no longer have to make changes in the NC program manually, meaning your processes are faster. All the changes you make using TruTops Cell Basic are visualized online and shown on the machine monitor.
TruTops Cell is an offline programming system for 3D laser processing. With this system you can create programs parallel to production, i.e. while production is running on the machine. TruTops Cell works with a large amount of 3D CAD data and includes the entire technological knowledge of TRUMPF. Important simulations such as collision checks or path optimization are performed directly in the programming system. The software is compatible with all TRUMPF 3D machines and machining processes.
With TruTops Boost you can get the best out of your TruLaser Cell 3000 for 2D processing. Automated processes and wizards make day-to-day working with TruTops simple and efficient. The system autonomously generates, for example, looping or roundings on corners, and generates piercing points and approach and return paths. The software positions the parts to be cut in the best possible way. In the process, TruTops Boost means that the laser machine automatically uses appropriate parameters. Interfaces to leading CAD systems allow parts drawings to be quickly imported. However, with an integrated design module you can also create drawings yourself in no time at all.
Visual Online Support (VOS)
Resolve even the most complex issues via the app – without the need for on-site deployment. Visual Online Support (VOS) enables you to exchange image, audio, and video files conveniently, quickly, and reliably, and thus avoid long machine downtimes.
The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.
Depending on the application you can choose from a wide range of solid-state lasers and select the perfect one for your needs. The TruLaser Cell 3000 can be equipped with all fiber-guided TRUMPF solid-state lasers with laser powers up to 8 kW. Higher laser power performance is available on request.
Numerous options make working with the TruLaser Cell 3000 not only easier, but, due to reduced non-productive times, also noticeably quicker and therefore more productive.
The rotational changer enables loading and unloading parallel to production at quantities above 100,000 pieces/a. The resulting two-station operation leads to high-yielding production. As a result, two-station operation enables highly productive manufacturing: cycle times are shortened and non-productive times are reduced.
The intuitively operated image processing system VisionLine automatically detects geometric features on the component, such as joint gaps or edges. If required, it then corrects the NC program, providing you with maximized process reliability, increased quality for your components, and savings in terms of time and costs.
With the additional workpiece axis (positioning axis in Z direction, 12 in. stroke) you can also process large 3D components, which can be up to 250% larger. The maximum 3D component size is increased as a result to a diameter of 600 x 520 mm. This allows you to make the best possible use of the work area and provides maximum flexibility for your production.
With the ergonomic teach panel you can program quickly and intuitively directly on the workpiece. The axes are precisely actuated via the 6D mouse. In the process, the integrated display will visualize all pending actions for you, and due to the utility programs you can create the tool path safely and quickly.
The variable clamping system of the TruLaser Cell 3000 allows you to take full advantage of all of the options of a unique and flexible workspace management system. The hole matrix system helps you to achieve reproducible fixture set ups. Not only can you easily adjust the working height to suit your own requirements and the processing task in hand, but for applications with large space requirements you can remove the clamping system quickly and easily.

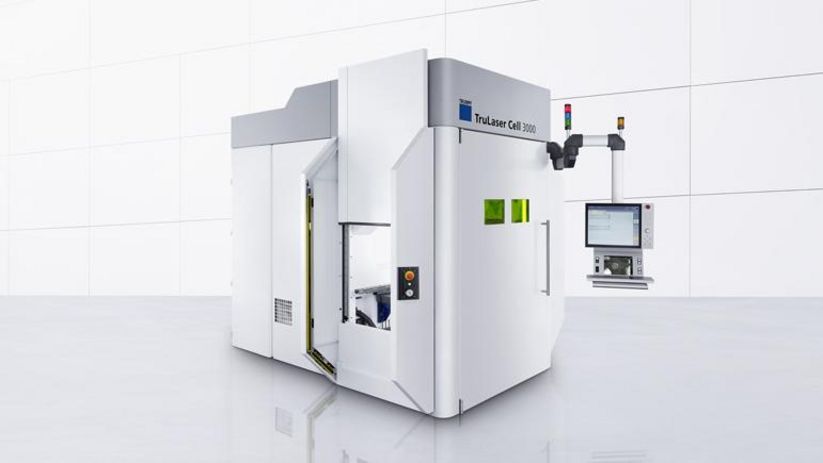

For loading and unloading from the side you can equip the TruLaser Cell 3000 with automatic side lifting doors. This enables the unit to be connected to transfer systems or for components to be loaded by a robot. The short opening and closing times ensure that non-productive time is minimized while productivity is maximized in automated working environments.
Due to a special measurement and compensation process in the axis system, the machine is capable of operating with the same accuracy as a measuring machine. This enables you to implement high-precision laser processing tasks. The repetition accuracy is below 5 µm.
The Central Link is an interface package with which you can network your machinery and use Industry 4.0 applications. The communication standard OPC-UA enables you to transport machine data, such as control variables, measured values or parameters, and to describe them in machine-readable form.
Focusing optics adapt the properties of the laser beam to the relevant task. The diverse modular optics kit has proven itself over years of use and is a perfect match for the TruLaser Cell 3000 due to its compact design.
Regardless of whether you are welding, cutting, ablating, heat treating, or drilling, you can count on high-quality process results with robust focusing optics from TRUMPF.
Programmable focusing optics
The ideal optics for remote processing
