Perfect for dismantling work

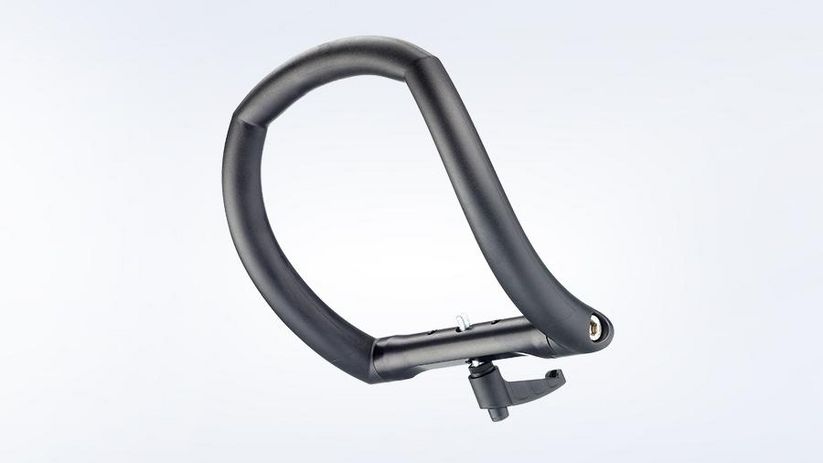

With its light weight of just 22 lbs., the TruTool N 700 can cut sheet thicknesses of 0.25 in. It cuts through doubled sheets as well as bends of up to 90° and is, therefore, perfect for dismantling work. The two handles can be quickly swapped, making it easy to perform work in a wide range of situations. The compact handle is ideal for restricted spaces and the bow-handle is well-suited to all work situations.
The machine can be turned through 360° in 4 steps of 90°.
Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.
You work without feed force so the required force is reduced to a minimum.
Unbeatable weight-performance ratio of 22 lbs. against a sheet thickness of 0.25 in.
The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 2260200
1 unit 1884878
1 unit 1279590
1 unit 1279618
1 unit 0067857
1 unit 0344696
1 unit 1411767
1 unit 1763686
Find the right consumables and accessories for your machine here.

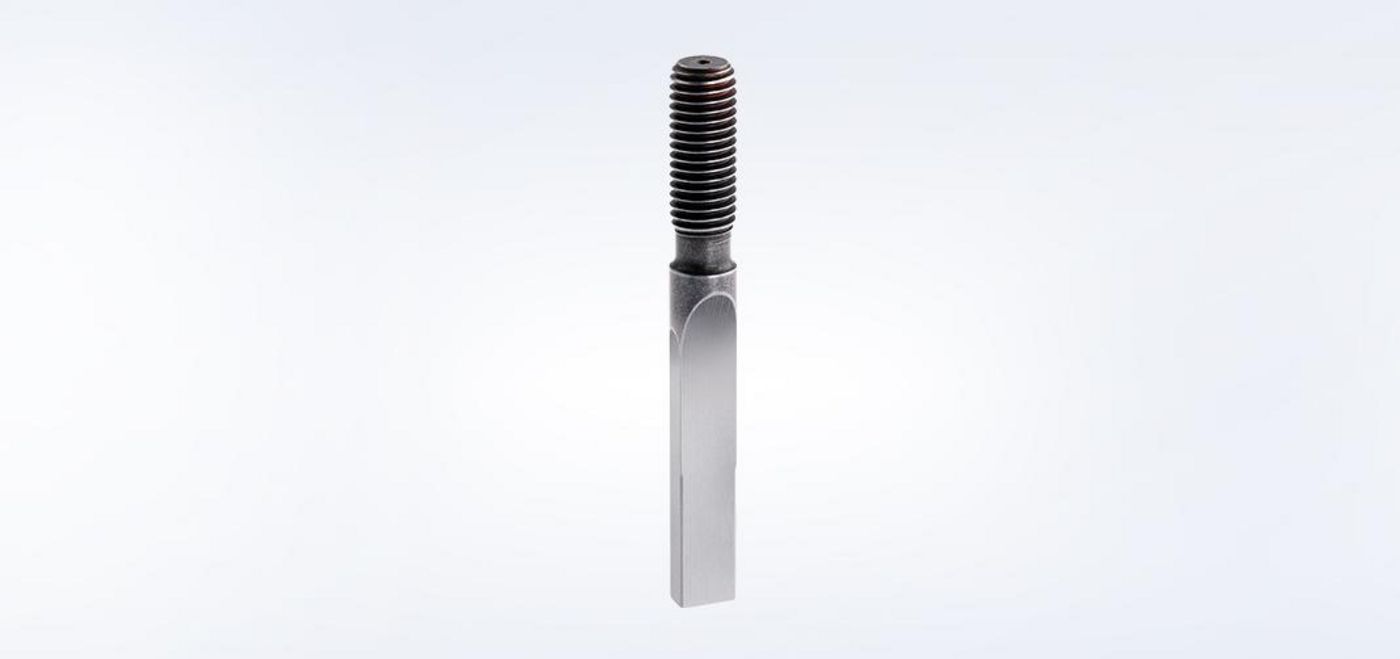

For processing aluminum and mild steel
For processing stainless steel

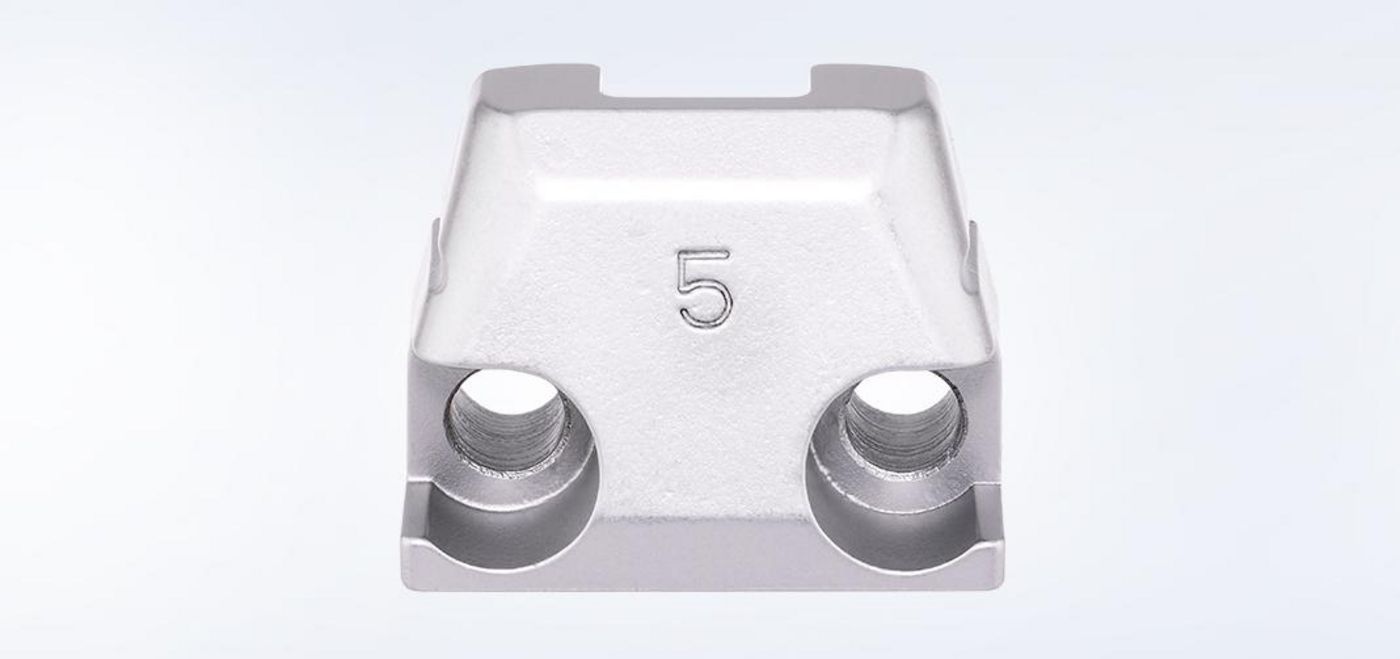

Well-suited for the processing of profile sheets, aluminum, and mild steel from 5 - 7 mm
For processing aluminum, mild steel, stainless steel 600 N/mm2 up to 5 mm, and stainless steel 800 N/mm2 up to 2.5 mm
For processing aluminum and mild steel from 5 - 7 mm
Protects the die holder against excessive wear
To collect chips
Special for coil applications. Ideal for backwards cutting.
TruTool N 700
|Maximum sheet thicknesses|
|Maximum sheet thickness, steel up to 400 N/mm²||7 mm|
|Maximum sheet thickness, steel up to 600 N/mm²||5 mm|
|Maximum sheet thickness, steel up to 800 N/mm²||3.5 mm|
|Maximum sheet thickness, aluminum up to 250 N/mm²||10 mm|
|Smallest radius||140 mm|
|Working Speed||1.3 m/min|
|Stroke rate with nominal load||300 RPM|
|Starting hole diameter||50 mm|
|Nominal power consumption||1600 W|
|Weight without cable||8.3 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
