PalletMaster Tower, multiple pallet changer
PalletMaster Tower, multiple pallet changer
Automation

PalletMaster Tower

The multiple pallet changer

    - / -
    • Overview
    • Technical data
    • Equipment
    • System examples
    • More Less
    The multiple pallet changer

    With the PalletMaster Tower, you can start unmonitored production affordably. It combines the automatic changing of pallets with compact storage technology. It can store up to 20 pallets of various material types and process them in a fully automatic fashion. Here, it uses a separate pallet for every material type and every sheet. The PalletMaster Tower changes thin sheets with minimal scratching and ensures that thick sheets can be processed unmonitored for a long time. This saves you time and reduces costs.

    Minimal scratching when changing sheets

    Higher quality thanks to individual sheet processing.

    Impressively productive

    Increase your machine utilisation rate by 50% through unmanned shifts. 1

    More room, more freedom

    Having so much capacity means that you can produce more flexibly.

    Flexible material handling around the clock
    PalletMaster Tower
    System
    Max. sheet format 3048 mm x 1524 mm
    Min. sheet thickness 0.8 mm
    Max. sheet thickness 25 mm
    Max. pallet carrying capacity 940 kg
    System height (stage 4) 6022 mm
    Number of pallets (stage 4) 20 Pieces
    PDF <1MB
    Technical data sheet

    The technical data of all product versions as a download.

    Sorting and slat cleaning station
    Sorting and slat cleaning station

    The sorting and slat cleaning station makes it possible to carry out loading, unloading and cleaning parallel to production.

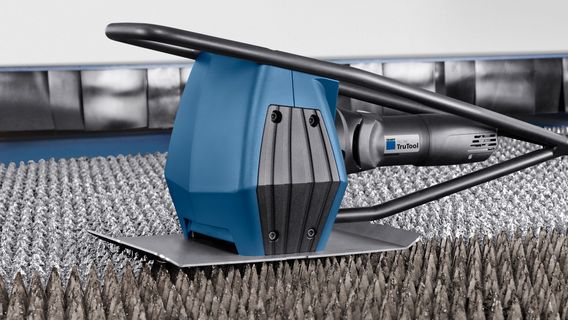

    TruTool TSC 100
    TruTool TSC 100

    The TruTool TSC 100 is delivered together with the sorting and slat cleaning station.

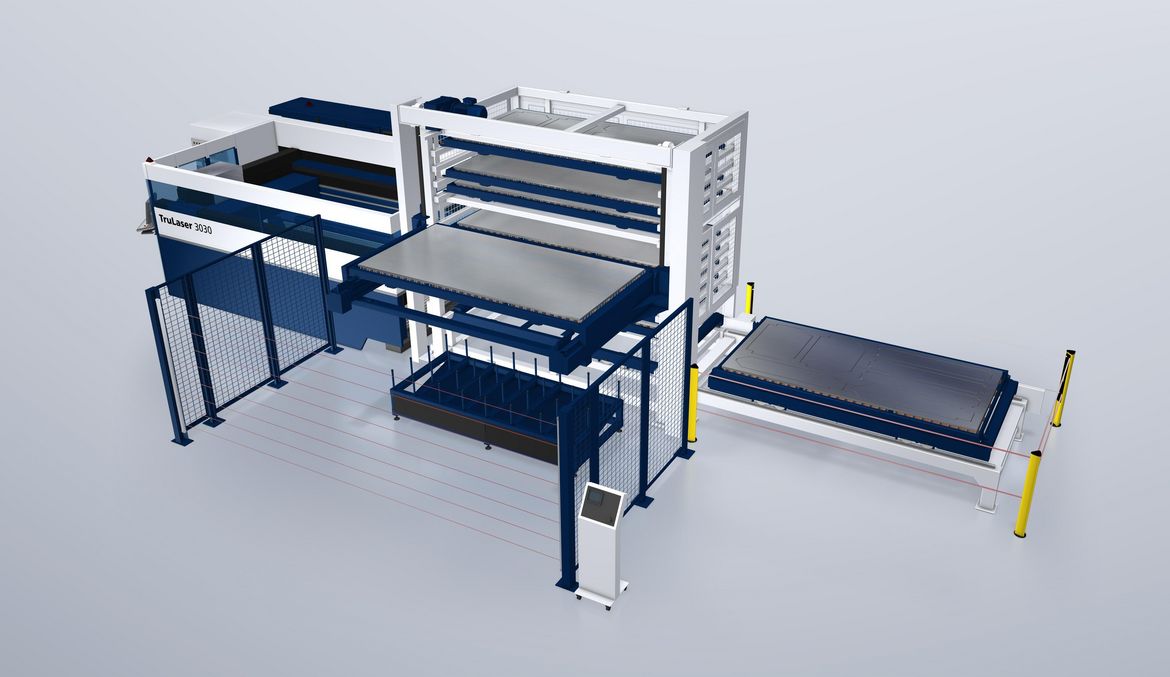

    TruLaser 3030 with PalletMaster Tower

    TruLaser 3030 with PalletMaster Tower

    TruLaser 3030 with PalletMaster Tower and sorting and slat cleaning station

    TruLaser 3030 with PalletMaster Tower and sorting and slat cleaning station

    This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

    Footnotes
    • Two shifts during the day, at night an additional shift unsupervised
