TruTool C 160
TruTool C 160
Slitting shears

TruTool C 160

Slitting shear checker plate
Slitting shear checker plate
Slitting shears

TruTool C 160

For curved and straight cutting

Ideal view for precise cutting

The cost-effective model without chip clipper is particularly well-suited to cutting tasks that do not involve chip clipping during the cutting process. For example, if you are cutting straight sheets into sections or for curved cutting. A clear view of the workpiece enables you to cut accurately. The chip is rolled away with a defined regularity and you avoid scratches on the workpiece. The TruTool C 160 cuts sheet thicknesses of up to 1.6 mm in mild steel and 1.2 mm in stainless steel.

Machine without chip clipper

For applications where chip clipping is not necessary during the cutting process.

Ideal for cutting into sections

Ideal for straight, distortion-free cuts and C-L-U profiles.

Particularly lightweight and ergonomic

The low weight of the machine and the well-engineered ergonomics mean low fatigue levels during operation.

For any application

For perfect results, you can choose between four different cutters.

Slitting shears: video on the area of application
TruTool C160 without chip clipper, dimensional drawing
TruTool C 160, dimensional drawing

CR cutter, for optimal processing of stainless steel
Outstanding service life

We offer four different cutters to suit particular applications: the CR cutter is ideal for processing stainless steel. The curve cutter provides outstanding performance for cutting curves. There are two different cutters for straight cuts: one cutter for processing thin sheets of up to 1 mm and one for use on sheet thicknesses of 1 – 1.6 mm.

Nicht bearbeitet-loeschen

Flat sheet

For cutting and trimming straight sheets. For radial and interior cutouts, as well as notches.

For cutting C-L-U profiles


For cutting C-L-U profiles and longitudinal cuts in profile sheets.

For cutting tubes


For cutting tubes.

For cutting checker plate

Checker plate

For cutting checker plates. For radial and interior cutouts.

For cutting rice grain sheet

Rice grain sheet

For cutting rice grain sheets. For radial and interior cutouts.

The following consumables and the corresponding accessories are included in the scope of delivery.

TruTool C 160, Messer 1 - 1,6 mm
Straight cutter (integrated)

1 - 1.6 mm

TruTool C 160, Schneidleistensatz
Cut guide set, 2 units with screws (integrated)

1 unit 0927708

Zubehör Standbild
Allen key DIN 911 - 2.5

1 unit 0067822


1 unit 1763681

Find the right consumables and accessories for your machine here.

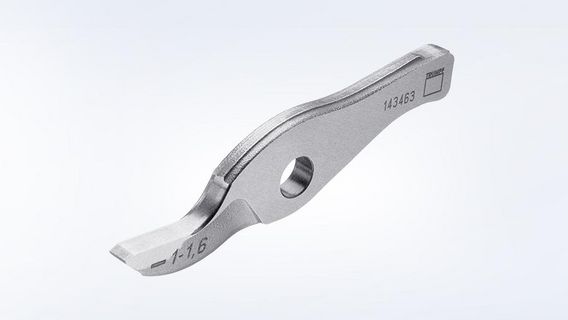

TruTool C 160, cutter 1 - 1.6 mm
Straight cutter 1 - 1.6 mm

Ideal for sheet thicknesses of 1 - 1.6 mm.

Set of 2  1264343
Set of 5  1264345
TruTool C 160, cutter up to 1 mm
Straight cutter up to 1 mm

Ideal for sheet thicknesses up to 1 mm.

Set of 2  1264356
Set of 5  1264357
TruTool C 160, curve cutter
Curve cutter

Good performance cutting curves. For sheet thicknesses up to 1 mm.

Set of 2  1264358
Set of 5  1264359
TruTool C 160, cutter CR
Cutter CR

Ideal for stainless steel and spiral ducts

Set of 2  1264346
Set of 5  1264347
TruTool C160, cutter set (straight cutter, curve cutter)
Cutter set

1 x straight cutter 1 mm, 1 x curve cutter

Set of 1  913521

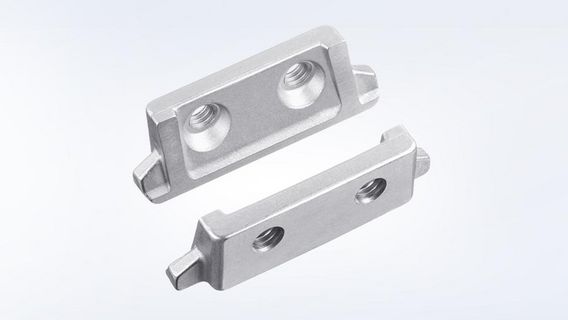

TruTool C 160, cut guide set
Cut guide set

2 units with screws

Set of 1  927708
Still image of accessories
Lubricating grease G1

25 g  344969
250 g  1446686
900 g  139440

1 unit  1763681
TruTool C 160
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 1.6 mm
Maximum sheet thickness, steel 600 N/mm² 1.2 mm
Maximum sheet thickness, aluminium up to 250 N/mm² 2 mm
Smallest radius 40 mm
Working speed 6 m/min - 10 m/min
Stroke rate at nominal load 3800 1/min
Starting hole diameter 15 mm
Nominal power consumption 350 W

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
