TruTool N 200
TruTool N 200
Nibbler

TruTool N 200

Nibbler-hard-to-reach-areas
Nibbler-hard-to-reach-areas
Nibbler

TruTool N 200

The hollow round punch provides excellent manoeuvrability

    - / -
    • Overview
    • Applications
    • Scope of delivery
    • Accessories
    • Technical data
    • More Less
    Lightweight and unrivalled performance on curves

    You can use the TruTool N 200 to cut flat and corrugated sheet. Even interior cutouts and notches are easy to process as the machine can be rotated on the spot. No tools are needed to change the cutting direction. You can upgrade and expand the TruTool N 200 with further tools as required. This means that you can easily cut even trapezoidal sheets, for example. The machine offers an impressive top cutting speed of 1.7 metres per minute.

    Outstanding performance on curves

    The hollow round punch provides manoeuvrability and enables the machine to turn on the spot.

    Cutting direction can be changed in seconds

    The tool can be rotated 360° in steps of 45°, without the need for additional tools.

    Change without the need for tools

    You can change dies and punches quickly, without the need for any additional tools.

    Compact, lightweight and ergonomic

    The TruTool N 200 fits comfortably in your hand with its weight of 1.8 kg and an optimal grip circumference.

    Video on the area of application 1 machine – three tools: TruTool N 200, TruTool PN 200 and TruTool PN 201
    Dimensional drawing, TruTool N 200
    TruTool N 200, dimensional drawing

    Supplied accessories: punch, die, Allen key, case, grease

    Nibbler-hard-to-reach-areas
    Cutting direction can be changed in seconds

    The TruTool N 200 can be manoeuvred neatly even in hard-to-reach areas, and the direction of processing can be adjusted quickly, without the need for tools. You can rotate the tool through 360°. Combined with a hollow round punch, the TruTool N 200 is so flexible that you can even turn the machine on the spot.

    One machine, three tools
    Can be retrofitted for flexible work

    The TruTool PN 201, PN 200 and N 200 are built on the same multifunctional machine basis. Each machine has its own particular strengths for processing different sheet metal: TruTool N 200 for flat and corrugated sheet; TruTool PN 200 for trapezoidal sheets up to 85 mm deep and C, L and U profiles; and TruTool PN 201 for trapezoidal sheets up to 162 mm deep.

    Flat sheet

    For cutting straight sheets and producing sections from them. For notches, as well as radial and interior cutouts.

    Corrugated sheet

    For cutting and producing sections. For diagonal cuts, interior cutouts and radial cuts.

    The following consumables and the corresponding accessories are included in the scope of delivery.

    TruTool N 200, Stempel
    Punch (integrated)

    1 unit 2260180

    TruTool N 200, Matrize
    Die (integrated)

    1 unit 0980335

    TruTool N 200, Stempelführung
    Punch guide (integrated)

    1 unit 1884925

    TruTool N 200, Werkzeug
    Tool N 200 (integrated)

    1 unit 1750694

    Zubehör Standbild
    Hexagonal bar wrench

    1 unit 1775531

    TRUMPF Box S1
    TRUMPF Box S1

    1 unit 1763681

    Find the right consumables and accessories for your machine here.

    TruTool N 200, punch guide
    Punch guide

    1 unit 1884925
    TruTool N200, punch set
    Set

    2 x punch and 1 x die

    Set of 1 961961
    TruTool N 200, tool
    Tool TruTool N 200

    1 unit 1750694
    TruTool N 200, tool
    Tool TruTool PN 200

    1 unit 1750693
    TruTool PN 201, tool
    Tool TruTool PN 201

    1 unit 1750692
    TruTool N200, chip bag
    Chip bag

    To collect chips

    1 unit 88622
    Still image of accessories
    Punching and nibbling oil for aluminium

    1000 ml bottle 125874
    Still image of accessories
    Punching and nibbling oil for steel

    500 ml bottle 103387

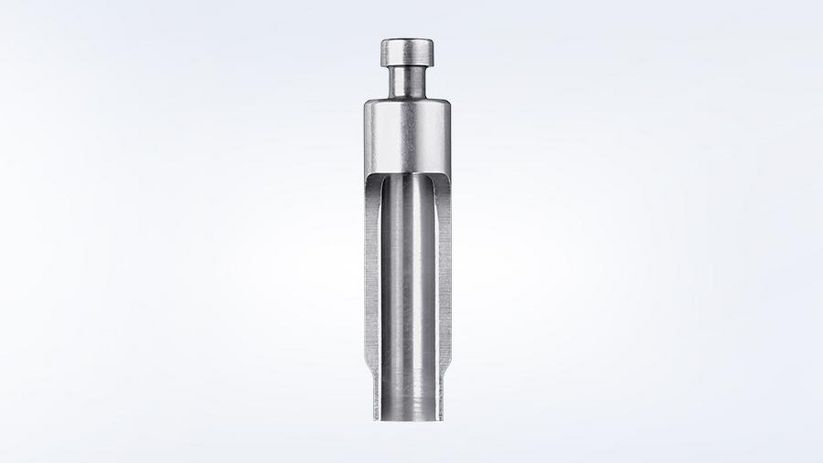

    TruTool N 200, punch
    Punch

    1 unit 2260180
    Set of 5 1264176
    TruTool N 200, die
    Die

    1 unit 980335
    Set of 2 1264393
    Set of 5 1264394
    TRUMPF Box S1

    1 unit 1763681
    TruTool N 200
    Maximum sheet thicknesses
    Maximum sheet thickness, steel 400 N/mm² 2 mm
    Maximum sheet thickness, steel 600 N/mm² 1.5 mm
    Maximum sheet thickness, steel 800 N/mm² 1 mm
    Maximum sheet thickness, aluminum up to 250 N/mm² 2.5 mm
    Radii
    Smallest radius 4 mm
    General
    Working speed 1.7 m/min
    Stroke rate at nominal load 1450 1/min
    Starting hole diameter 17 mm
    Nominal power consumption 550 W
    Weight
    Weight without cable 1.8 kg
    PDF <1MB
    Technical data sheet

    The technical data of all product versions as a download.

    This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
