TruPlasma Arc Series 3000 arc generator
TruPlasma Arc Series 3000 arc generator
Plasma excitation
TRUMPF Hüttinger

TruPlasma Arc Series 3000

Achieve impressive hard material coating with arcs

Productivity redefined

The TruPlasma Arc Series 3000 product family is a key component in arc cathode processes in rough industrial environments. The generators are particularly impressive for hard material and decorative coatings. Additionally, they are a selected energy source for numerous high power applications, such as ion implantation and DC applications with similar requirements.

Ideal for hard material coating

Improved process control due to state-of-the-art analysis procedures and digital feedback.

Ideal for arc cathode processes

High current intensity and power through parallel connection of several generators.

Compact design

The integrated air cooling enables the optimal utilization of valuable space.

Equipped for the future

Simple system integration due to diverse interfaces (e.g. analog, ProfiBUS, RS232/485).

Perfectly suited to the coating of metal workpieces

Hard material coating

The TruPlasma Arc Series 3000 generators are particularly impressive for hard material and decorative coatings.

TruPlasma Arc 3200
TruPlasma Arc 3150
Output
Rated output 12 kW 9 kW
Maximum output current 200 A eff 150 A eff
Maximum output voltage 60 V eff 60 V eff
Ignition voltage
with auxiliary ignition 550 V 550 V
Network connection data
Line voltage 3x 360 V - 440 V 3x 360 V - 440 V
Line frequency 50 Hz - 60 Hz 50 Hz - 60 Hz
Communication interfaces
Analog/digital Yes Yes
RS 232 / RS 485 Yes Yes
PROFIBUS - Yes
EtherCAT No No
DeviceNet No No
Housing
Weight 35 kg 35 kg
IP protection class IP 20 IP 20
Cooling requirements
Coolant Air Air
Coolant temperature 5 °C - 35 °C 5 °C - 35 °C
General
Certificates / standards CE CE
Ambient conditions
Outside temperature 5 °C - 35 °C 5 °C - 35 °C
Humidity 5 % - 85 % 5 % - 85 %
Barometric pressure 860 kPa - 1060 kPa 860 kPa - 1060 kPa
PDF <1MB
Technical data sheet

The technical data of all product versions as a download.

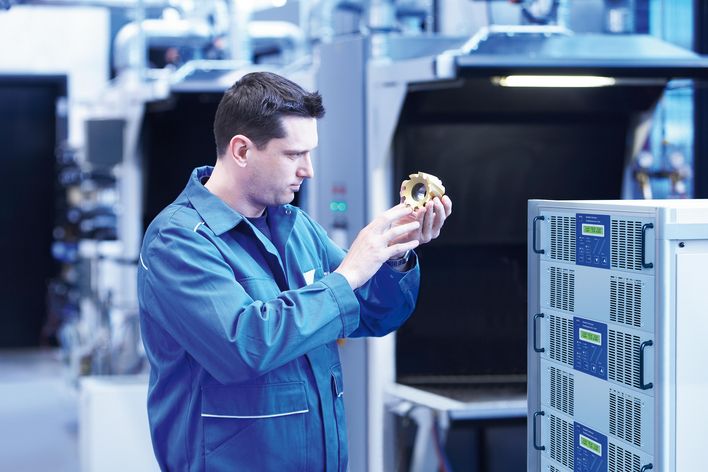

Tru Plasma Arc Series 3000 generators in use

Easily reproducible process conditions

The special power and control architecture of the TruPlasma Arc Series 3000 for excellent power stability ensures consistently good and reproducible process conditions.

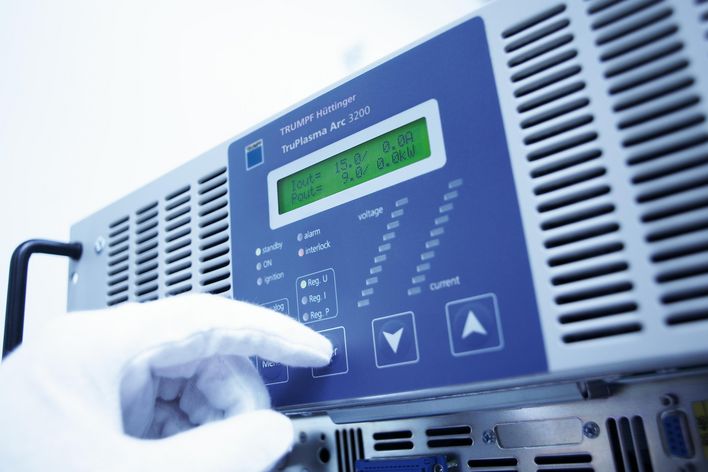

TruPlasma Arc 3200 in use

Simplified regulation of the arc ignition increases productivity

With the integrated electrical ignition circuit and the separate ignition output, ignition is fast and safe, increasing productivity.

Arc management

Trouble-free operation saves time

The fast DSP control for continuous arcs at all voltage levels ensures stable operation and reduces the need to intervene.

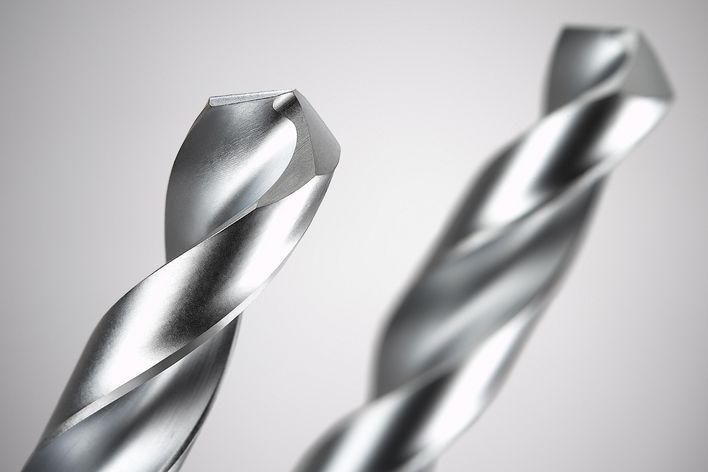

Hard material coating

Can be used in a number of different ways

With a broad portfolio of power ranges, it is possible to perform a variety of applications and perfectly adjust to the requirements of all coating processes.

Operation, configuration, and diagnosis options with PVD Power

PVD Power

The user-friendly, multilingual PVD Power software offers you numerous operation, configuration, and diagnosis options for optimizing process quality and effective error correction: display actual values for all relevant process parameters as well as warnings and alarms, specification of target values by the operator, as well as recording and visualization of important operating parameters with high temporal resolution (oscilloscope function).
