TruTool S 250 Li-ion shear
TruTool S 250 Li-ion shear
Battery-powered machines

TruTool S 250 Li-ion rechargeable battery 18 V shear

Battery-powered machines

TruTool S 250 Li-ion rechargeable battery 18 V shear

Even cuts grids of up to 2.5 mm sheet thickness


Unique shear with rechargeable battery up to 2.5 mm

The TruTool S 250 Li-ion rechargeable battery 18 V is the first shear with rechargeable battery, which cuts sheet thicknesses of 2.5 mm in mild steel and 1.5 mm in stainless steel. The robust machine is your perfect companion for daily use. You can work quickly and precisely and always have an unrestricted view of the work surface and cutting line. The machine also cuts well in curves: With minimum radii of 20 mm, you can achieve excellent performance on curves with it. For example, with the 2 Ah rechargeable battery you can therefore cut up to approx. 62 meters in mild steel and a sheet thickness of 1.5 mm.

Long service life

Low operating costs as a result of the 4-way cutter rotation.

Uniquely powerful

The first shear with rechargeable battery for cutting mild steel up to 2.5 mm and stainless steel up to 1.5 mm.

The perfect combination

The rechargeable battery achieves a runtime that is up to 60% longer due to the Power-Head-Technology and brushless motor.

For comfortable operation

A soft grip ensures low-vibration machine control. The machine is thereby extremely compact and light.

Dimensional drawing of TruTool S 250 Li-ion
TruTool S 250 Li-ion battery 18 V, dimensional drawing

Battery technology

Individual electronic cell monitoring in the machine and in the charger protects the battery against overload, overheating, and deep discharge. The robust battery cells have a low energy drop and always remain cool. A microprocessor analyzes the battery data and controls an optimal charge and discharge process. The result is high power combined with a long service life for the battery. You can therefore work almost non-stop. The 2 Ah and 4 Ah rechargeable batteries only require 10 - 30 minutes to be charged to 80%.

Flat sheet

Cutting and trimming of flat sheets. For radial and interior cutouts.


For cutting C-L-U profiles

Coil processing

For cutting coils. For relief cuts and sampling.


The following consumables and the corresponding accessories are included in the scope of delivery.



Allen key 4 mm

1 unti 0023065

Allen key DIN 911 - 2.5

1 unti 0067822

Battery 2 Ah 18 V
2 Ah rechargeable battery 18 V (2 units)

1 unti 2272664

Charger 18 V
Charger 100 - 240 V incl. cable

1 unti 2272666

Belt clip

1 unit


1 unti 1770890

Find the right consumables and accessories for your machine here.

TruTool S 250, cutter

For steel up to 400 N/mm2

Set of 4  127911
Set of 10  1264341
TruTool C 250, cutter CR
Cutter CR

Ideal for sheet thicknesses 0.02 - 0.06 in.

Set of 2  1279142
Set of 5  1279143
Battery 2 Ah 18 V
Li-ion rechargeable battery 18 V, 2 Ah

1 unit  2272664

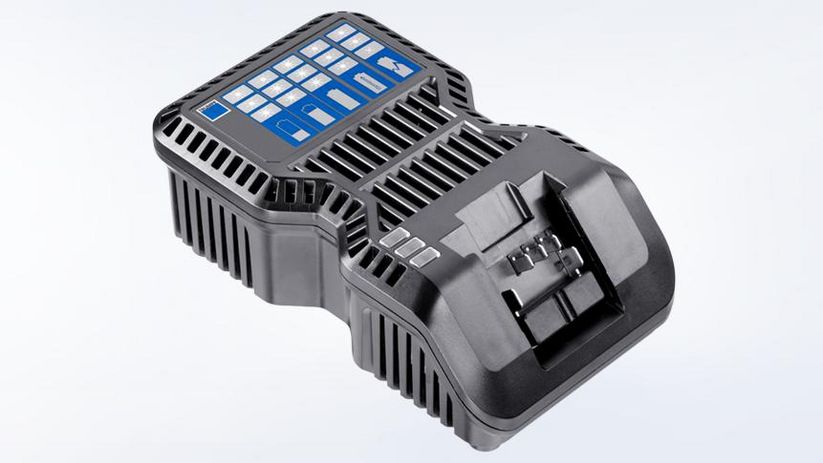

Charger 18 V
Recharger LG 18V / 10.8V

For Li-ion rechargeable battery 18 V with 2 Ah, 4 Ah, or 5 Ah. Cable included.

1 unit (USA)  2275872
1 unit (DE / CH)  2272666
1 unit (GB)  2275871
TruTool belt clip
Belt clip

1 unit  2272758

1 unit  1770890

Up to 60% more rechargeable battery running performance

The Power-Head-Technology is specifically designed for low-voltage rechargeable battery technology and ensures up to 20% longer running performance per battery charge. With its high torques, low power consumption, and minimal heat generation, the brushless motor provides even more battery performance. This means that you can work for up to 40% longer. The 2 Ah rechargeable battery cuts up to approx. 62 meters in mild steel and sheet thicknesses of 1.5 mm and, in the case of a sheet thicknesses of 2.5 mm, up to approx. 37 meters. You can even double this runtime by using the 4 Ah rechargeable battery.

Overview of 18 V battery machines

Compact, lightweight, and compatible

The 18 V battery machine has a compact and light design and allows fatigue-free work. The soft grip ensures safe and low-vibration working. You can combine the 18 V Li-ion rechargeable batteries with all current TRUMPF battery machines and the charger in their voltage class. The Li-ion battery machines are also available as solo machines.

Optimal working speed

You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.

TruTool S 250 Li-ion rechargeable battery 18 V shear
Maximum sheet thicknesses
Maximum sheet thickness, steel 400 N/mm² 2.5 mm
Maximum sheet thickness, steel 600 N/mm² 2 mm
Maximum sheet thickness, steel 800 N/mm² 1.5 mm
Maximum sheet thickness, aluminum up to 250 N/mm² 3 mm
Smallest radius 28 mm
Working speed 4 m/min - 7 m/min
Stroke rate during idle run 1300 1/min
Starting hole diameter 20 mm
Voltage 18 V
Weight (with 2 Ah rechargeable battery) 2.5 kg
Weight (with 4 Ah rechargeable battery) 2.8 kg

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
