TruLaser 3030 fiber, flexible standard machine
TruLaser 3030 fiber, flexible standard machine
2D laser cutting machines

TruLaser 3030 fiber / 3040 fiber

Flexible standard machine

TruLaser 3030 fiber, RotoLas
TruLaser 3030 fiber, RotoLas
2D laser cutting machines

TruLaser 3030 fiber / 3040 fiber

With the optional RotoLas device you can also cut tubes

    - / -
    • Overview
    • Applications
    • Technical Data
    • Equipment
    • Software
    • Automation
    • More Less
    Flexible standard machine

    The TruLaser 3030 fiber and the TruLaser 3040 fiber – fast machines for all of your cutting tasks. They impress with their high level of flexibility and cost-effectiveness: You can cut all sheet thickness profitably. The TruDisk solid-state laser enables the processing of non-ferrous metals and provides you with a productivity benefit in thin sheet. BrightLine fiber guarantees the highest edge quality and facilitates part removal. Numerous other functions ensure the highest reliability and performance possible.

    Processing tubes

    Cut tubes and profiles on your flatbed laser machine with RotoLas.

    Find out more
    The best results without compromise

    BrightLine fiber facilitates excellent part quality and seamless part removal.

    Find out more
    Intricate cutting even in thick mild steel

    With the CoolLine function, you can even create small contours in thick mild steel.

    Find out more
    Utilize remainder sheets – post-produce parts easily

    Using Drop&Cut, you can easily post-produce parts from remainder sheets.

    Find out more
    Increased machine availability

    Condition Guide always monitors the condition of your machine.

    Find out more
    Reliability without microjoints

    Smart collision prevention reduces the risk of collisions during laser cutting.

    Find out more
    Accurate position recognition

    DetectLine determines the position of the sheet and enables precise post-processing of cut parts.

    Find out more
    TruLaser 3030 fiber
    TruLaser 3030 fiber, RotoLas

    Tube processing

    With RotoLas, you can expand your parts range with tubes and profiles – in the best quality.

    TruLaser 3030 fiber, thin mild steel part

    Thin mild steel part

    Your TruLaser 3030 fiber / 3040 fiber cuts extremely quickly, particularly in thin sheets.

    TruLaser 3030 fiber, easy removal of sample parts

    Parts which are easy to remove

    With BrightLine fiber, a sophisticated combination of special optics, along with the flow-optimized BrightLine nozzles and other technical innovations, the TruLaser 3030 fiber / 3040 fiber machines provide the highest part quality. The highlight: High-quality cut edges mean parts don't get caught during removal. Part removal is easy and saves time.

    TruLaser 3030 fiber, non-ferrous metals

    Cutting of all common materials

    The construction of the TruDisk enables the processing of non-ferrous metals with nitrogen – without worrying about reflections. You can also process film-coated sheets.

    TruLaser 3030 fiber, thick mild steel cut with CoolLine

    Thick mild steel cut with CoolLine

    The CoolLine process specifically cools the workpiece during laser cutting. This enables new geometries and considerably increases process reliability in thick mild steel.

    TruLaser 3030 fiber
    TruLaser 3040 fiber
    Dimensions
    Length 8800 mm 11400 mm
    Width 6010 mm 6730 mm
    Height 2400 mm 2400 mm
    Maximum speed
    Simultaneous 140 m/min 140 m/min
    Working range
    X axis 3000 mm 4000 mm
    Y axis 1500 mm 2000 mm
    Max. workpiece weight 900 kg 1700 kg
    Laser-specific data - TruDisk 3001
    Max. laser output 3000 W 3000 W
    Max. sheet thickness, mild steel 20 mm 20 mm
    Max. sheet thickness, stainless steel 15 mm 15 mm
    Max. sheet thickness, aluminum 15 mm 15 mm
    Max. sheet thickness, copper 6 mm 6 mm
    Max. sheet thickness, brass 6 mm 6 mm
    Laser-specific data - TruDisk 4001
    Max. laser output 4000 W 4000 W
    Max. sheet thickness, mild steel 25 mm 25 mm
    Max. sheet thickness, stainless steel 20 mm 20 mm
    Max. sheet thickness, aluminum 15 mm 15 mm
    Max. sheet thickness, copper 8 mm 8 mm
    Max. sheet thickness, brass 8 mm 8 mm
    Laser-specific data - TruDisk 6001
    Max. laser output 6000 W 6000 W
    Max. sheet thickness, mild steel 25 mm 25 mm
    Max. sheet thickness, stainless steel 25 mm 25 mm
    Max. sheet thickness, aluminum 25 mm 25 mm
    Max. sheet thickness, copper 10 mm 10 mm
    Max. sheet thickness, brass 10 mm 10 mm
    Consumption values
    Average power input in production - TruDisk 3001 13 kW 13 kW
    Average power input in production - TruDisk 4001 15 kW 15 kW
    Average power input in production - TruDisk 6001 18 kW 18 kW
    PDF <1MB
    Technical data sheet

    The technical data of all product versions as a download.

    Process reliability

    AdjustLine

    AdjustLine enables the easy adjustment of the cutting process to materials of different quality. The function increases process reliability, especially when cutting poor quality material. For you this means less scrap and lower material costs. The operator can switch AdjustLine on or off at any time – programming is not required.

    Collision protection

    Collision protection for your cutting head guarantees the highest process reliability. You benefit from shorter non-productive times due to increased machine availability. In the event of collisions, damage to the cutting head is avoided.

    CoolLine
    CoolLine

    Mild steel becomes extremely hot during laser cutting and may melt uncontrollably. With CoolLine, this does not happen. During processing, the cutting head sprays water mist in a circle around the laser beam onto the workpiece. This is possible due to nozzles with precise bore holes. The vaporization energy of the water means that the material around the laser beam is cooled. CoolLine enables new geometries, closer nesting, and considerably increases process reliability in thick mild steel.

    Online condition check, protective glass

    Clean protective glass ensures high cut quality in the long term. A sensor permanently monitors the condition of the protective glass so that you know when it must be changed. Cleaning and replacement are only carried out when required, saving costs.

    Flexibility

    RotoLas

    With the additional RotoLas device, you can also process tubes on your 2D laser cutting machine, even the corners of rectangular tubes. You can convert your machine from flatbed to tube processing within a very short time. A flexible loading system feeds different tubes and profiles completely reliably. Support is provided by the TruTops Tube programming system, which calculates the cutting speed and travel motion of the Z axis with precision.

    Autonomy

    Smart collision prevention

    Smart collision prevention reduces the risk of collisions during laser cutting to a minimum. From the part contours, the process detects the parts which are at risk of tilting. It creates an optimized processing strategy for the order: The laser skillfully navigates around parts at risk of tilting. They are only cut free when there is no longer the risk of collision. This means you do not need to use microjoints, saving costly reworking.

    DetectLine

    A camera system precisely determines the inserted sheet position and enables the rework of parts which have already been cut with absolute precision. DetectLine also automatically measures a cut focusing comb and sets the focal position.

    Quality

    TruLaser 3030 fiber, BrightLine fiber
    BrightLine fiber

    BrightLine fiber turns the solid-state laser into a universal tool: The function provides you with high-quality cutting results over the entire sheet thickness range. Furthermore, all of the advantages of the solid-state laser are retained, in particular the high speeds, during thin sheet processing.

    PierceLine

    PierceLine monitors and controls the piercing process. This saves material and preserves the machine, increasing part quality and shortening the piercing time by up to 80%

    TruLaser 3030 fiber, performance package
    Performance package

    During fusion cutting in thin sheets, the innovative performance nozzles and the optimized cutting data of the performance package provide you with two advances at the same time: A jump forward in quality, and considerably higher productivity.

    Productivity

    Ausstattung Highspeed
    Highspeed

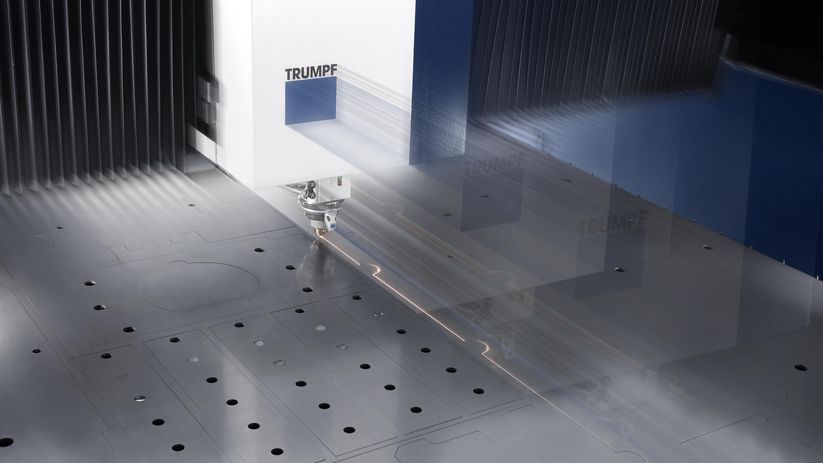

    Quick and economic – without compromising on quality: With Highspeed, you can set new records with the solid-state laser when it comes to cutting with nitrogen. As a result, you can almost double your sheet throughput for medium and thick mild steel and stainless steel sheets – the same goes for the feed rate. A special nozzle design also reduces your cutting gas consumption by up to 40%, and even prevents burr formation on contours with sharp edges.

    Process reliability and operator support

    TruLaser 3030 fiber, Condition Guide
    Condition Guide

    One glance is enough: Due to the new Condition Guide function, you are always informed about the condition of your machine. A traffic light system shows the status of important elements which influence the cutting capability of the machine. Condition Guide will give you recommendations for action as required. Process diagrams facilitate forecasting as to when action may need to be taken. Maintenance work can therefore be planned efficiently.

    Dot Matrix Code

    The Dot Matrix Code function facilitates fast, reliable part identification with a standardized industrial code. Within seconds, the laser in your flatbed laser machine applies a 2D code (data matrix) made out of dots onto a part. It contains information for the process chain. The code calls up the corresponding program at the next machine, for example.

    MobileControl app

    With the MobileControl app, you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. The app enables you to call up different machine information at different places in the working environment of the machine, such as the clearing area, or to change the program.

    Drop&Cut

    With Drop&Cut, the remainder sheet is utilized more easily, intuitively, and efficiently. A camera ensures the live image of the machine interior appears directly on your user interface. You can position any number of part geometries on the remainder sheet. This saves time during the post-production of individual parts. Time-consuming process steps such as aligning the sheet, sheet position measurement or zero point displacement are not needed.

    TruTops Boost

    Construct and program your laser, punching, and combined punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.

    TruTops Monitor

    Reduce your idle time. Record and analyze machine data, including idle states, error messages, causes of malfunctions, and maintenance periods for all of your production workplaces. If an idle state or a malfunction occurs, TruTops Monitor will inform you immediately about the cause, allowing you to respond quickly.

    Software

    The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.

    Choose the right automation components for your laser cutting machine from a large modular system. From semi-automatic loading to a fully automatic processing cell with storage connection, TRUMPF provides solutions which optimize your process chain.

    LoadMaster

    Loading

    Your entry into automation: The LoadMaster enables the automatic loading of your machine with raw sheets.

    LiftMaster Compact

    Loading and unloading

    The compact LiftMaster Compact loads and unloads your machine completely automatically and extremely fast. With the LiftMaster Linear Basic you have the option of multiple-machine connection.

    LiftMaster

    Loading and unloading / Part sorting

    The automation solution, LiftMaster, covers a broad range of functions. It loads and unloads, but is also suitable for pallet handling or part removal. The LiftMaster Sort also separates finished parts from the scrap skeleton, while LiftMaster Store and LiftMaster Store Linear connect your system directly to the store. The SortMaster automatically sorts finished parts.

    PalletMaster Tower

    Auxiliary pallet operation

    The PalletMaster Tower enables flexible material handling around the clock. It combines the automatic changing of pallets with compact storage technology.

    TruStore Series 1000

    Storage system

    With the storage systems of the TruStore Series 1000 and TruStore Series 3000 you can organize your material handling according to your requirements.
