TruMatic 1000 fiber – efficient compact machine
TruMatic 1000 fiber – efficient compact machine
Punch laser machines

TruMatic 1000 fiber

The new laser machine that punches, forms, and creates threads – with clever automation in minimal space.

TruMatic 1000 fiber and SheetMaster Compact
TruMatic 1000 fiber and SheetMaster Compact
Punch laser machines

TruMatic 1000 fiber

TruMatic 1000 fiber and SheetMaster Compact

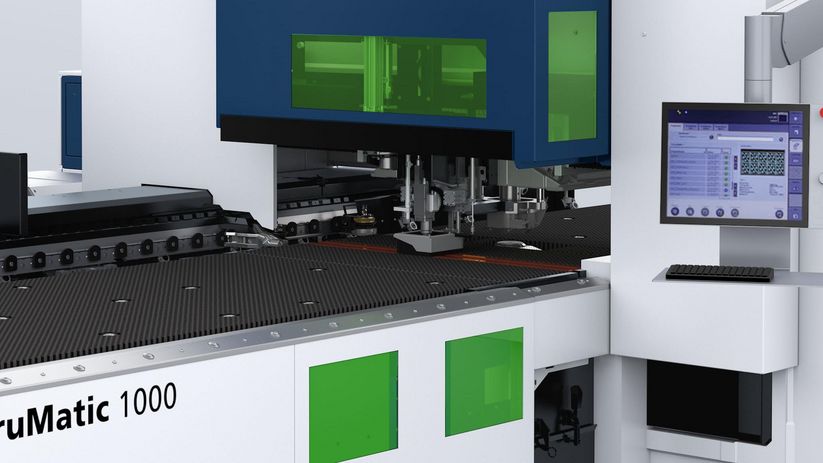

TruMatic 1000 fiber, punching head and cutting head
TruMatic 1000 fiber, punching head and cutting head
Punch laser machines

TruMatic 1000 fiber

The beam guard takes up no extra space and enables good access to the machine

Efficient compact machine

The TruMatic 1000 fiber is a laser machine that punches holes, bends flanges, and forms threads. It is the world's most compact punch laser machine. Discover the clever solutions for part sorting and automated operation.

One machine, two technologies

With a TruMatic machine, you benefit from all the advantages of punch and laser processing.

Environmentally conscious and efficient

Together, the solid-state laser and Delta Drive save up to 65% in energy compared to a hydraulically driven punch laser machine.

Flexible laser processing

With the robust TruDisk universal laser, you can achieve excellent productivity when cutting even non-ferrous metal.

Compact like never before

The most compact punch laser machine in the world is 24% smaller than the previous model.

Clever removal of small parts

Small, laser cut parts are removed to the finished parts container in a reliable process.

Automatic loading and unloading

The SheetMaster Compact provides reliable loading and unloading processes.

See the TruMatic 1000 fiber in action: With its compact installation, excellent removal and sorting options, and convincing automation, it fits into every production facility.
Combined technologies – combined benefits: See the video for how to advance your production with punch laser machines – reducing your part costs, for example.
Delta Drive
SortMaster Compact: Clever automation for close quarters
Removing and sorting parts
SheetMaster Compact
Ejection of small parts
TruMatic 1000 fiber, Delta Drive
Environmentally friendly power package

The innovative Delta Drive not only saves space and expands your material handling - it also scores points when it comes to environmental protection. Working together with the solid-state laser, it reduces the system's power input by around 65% - which relieves your operating costs while also benefiting to the environment.

TruMatic 1000 fiber, sorting
Automatically well sorted

Your machine automatically sorts parts up to a size of 7 x 7 in.

TruMatic 1000 fiber, part removal flap
Clever unloading: part removal flap

A large part removal flap enables automated unloading of parts up to a format of 16 x 24 in.

TruMatic 1000 fiber, sample part

Punching and laser cutting in one

Sample part with laser-cut contour and extrusions, roller beading, stepping, and marking produced with punching tools.

Sample parts from non-ferrous metals

Material range

The TruDisk solid-state laser is resistant to reflections. Even highly reflective materials such as copper or brass can be processed without affecting process reliability.

TruMatic 1000 fiber, part removal flap

Cost-effectively produce small parts

As a result of the "small part ejection" function, you can cost-effectively produce high quantities of small parts from relatively thick material

TruMatic 1000 fiber medium format
TruMatic 1000 fiber large format
Dimensions
Width 6935 mm 1 8082 mm 1
Depth 6281 mm 1 7780 mm 1
Height 2207 mm 1 2195 mm 1
Maximum stroke rate
Punching (E = 1 mm) 600 1/min 600 1/min
Marking 1000 1/min 1000 1/min
Working range
Punching mode, X axis 2500 mm 3000 mm
Punching mode, Y axis 1250 mm 1550 mm
Laser operation, X axis 2500 mm 3000 mm
Laser operation, Y axis 1250 mm 1550 mm
Combined operation, X axis 2035 mm 2535 mm
Combined operation, Y axis 1250 mm 1550 mm
Maximum sheet thickness 6.4 mm 6.4 mm
Maximum workpiece weight 150 kg 230 kg
Maximum punching force 165 kN 165 kN
Tools
MultiTool tool changing time 2.4 s 2.4 s
Number of tools/clamps 17 pieces / 3 pieces 21 pieces / 3 pieces
Laser-specific data - TruDisk 3001
Maximum laser power 3000 W 3000 W
Maximum sheet thickness, mild steel 6 mm 6 mm
Maximum sheet thickness, stainless steel 6 mm 6 mm
Maximum sheet thickness, aluminum 5 mm 5 mm
Maximum sheet thickness, copper 6 mm 6 mm
Maximum sheet thickness, brass 6 mm 6 mm
Part removal
Maximum part size, fixed chute, punching (with moving table) 180 mm x 180 mm 180 mm x 180 mm
Maximum part size, part removal flap, laser 400 mm x 600 mm 400 mm x 600 mm
Consumption values
Average power input in production - TruDisk 3001 8 kW 8 kW
Auto-shutdown active - TruDisk 3001 0.6 kW 0.6 kW

Numerous innovative solutions and functions make the TruMatic 1000 fiber the perfect entry-level model for punch laser processing.

Sustainability

TruMatic 1000 fiber, Delta Drive
Energy-saving Delta Drive

With its hybrid axis concept and electric punch drive, the Delta Drive is extremely energy-efficient. Combined with the solid-state laser, it saves around 65% energy compared to a conventional punch laser machine. That significantly reduces your CO2 footprint.

Process reliability

TruMatic 1000 fiber, part removal flap
Ejection of small parts

The Delta Drive decouples the punch and the die and so enables new punch applications. One highlight of punch laser operation is process-reliable removal of small, laser-cut parts. The upper tool punches with a slight offset, which means that small parts do not fall through the die into the scrap container but instead slide through a part chute into waiting boxes.

TruMatic 1000 fiber, sorting
Sorting function

Your machine automatically sorts parts up to a size of 7 x 7 in. Finished parts go through a chute into an intermediate buffer storage. There are four different boxes under the machine. The intermediate buffer storage moves to the correct box and adds the parts to this.

TruMatic 1000 fiber, punching head and cutting head
Brush table/ball table

Depending on your requirements, you can choose between brush and ball tables.

Smart punch monitoring

Before a tool change, this function checks whether the sheet has actually been punched. In this way, the machine detects at an early stage when punches are broken, and can pass this information on to the operator. The smart punch monitoring function therefore avoids rejects, especially during night or weekend shifts.

Parts conveyor belts

Parts that are removed via the large part removal flap can be transported into boxes via conveyor belts.

Chip conveyor

The chip conveyor can be used to automatically transport punching slugs into a container.

Preparation for laser network

The laser can be equipped with an additional output for if you wish to operate the machine in a laser network. In a laser network, a TruDisk supplies several TRUMPF machines.

Connectivity key visual
Digital connection and integration for smart solutions

Seamless integration of multiple TRUMPF machines into your own software environment is very easy. We have the right solution for every combination, whether it be integration into Oseon or a connection to monitoring and analysis tools. A connection to third-party software systems is also possible with our interfaces based on the OPC UA standard.

Simple operation

Touchpoint HMI


It can be very easy to program punching or punching-laser parts – machine operation becomes as intuitive as when using a tablet or smartphone with the new Touchpoint-HMI from TRUMPF. It helps you finish the part much more quickly – and even novices will quickly learn how to work with the software.

TruTops Boost

Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.

Software

The software portfolio from TRUMPF optimizes your entire production process – from the customer query to delivery of the finished part. TRUMPF combines the software intelligently with machines and services to create customized Industry 4.0 solutions for your Smart Factory.

MultiTool

You can boost the productivity of your punching or punch laser machine with a tool adapter for up to ten inserts – in particular for small punching operations.

MultiBend

90° bends of different lengths up to 2.2 in.: When working with the MultiBend, there is no need for an additional operation on the bending machine.

Ejector tool for sorting
Ejector tool for sorting

Remove small laser cut parts with process reliability and separate finished parts from remaining parts at the same time.

Punching tools at a glance

TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.

Bring clarity to your procedures with our automation solutions. Employees can concentrate on their core tasks and customers will value you as a reliable supplier. You produce more cost-effectively and gain financial flexibility.

TruMatic 1000 fiber and SheetMaster Compact

Loading + unloading

The SheetMaster Compact takes over the process-reliable loading of sheets as well as the unloading of microjoint sheets and scrap skeletons. In this way, the machine operates completely automatically, if required, with a load capacity of up to three tonnes. This increases productivity and also relieves the strain on the operator.

Sorting

The SortMaster Compact removes and sorts the parts from your punch laser machine fully automatically. Especially when it comes to small and complex parts, the individually controllable suction cups make it possible to remove parts in the optimum way. Due to the minimal installation area, there are no extra space requirements.

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.

Footnotes
  • The dimensions are approximate; the dimensions specified in the installation plan are valid.
