TruTool N 1000
TruTool N 1000
Nibbler

TruTool N 1000

    - / -
    • Overview
    • Applications
    • Scope of delivery
    • Accessories
    • Technical Data
    • More Less
    Powerful heavy-duty machine

    The TruTool N 1000 has been specifically designed for use with thick sheets. It is well-suited in particular to use for dismantling tanks and containers. It cuts through doubled sheets as well as bends of up to 90°. You can use the TruTool N 1000 for nibbling through sheet thicknesses of up to 0.4 in. without feed force. It offers non-fatigue operation despite a machine weight of 32.4 lbs. The handle can be rotated through 180°, providing perfect guidance of the machine.

    Perfect cuts with 2-speed motor

    Choose the right speed for the material thickness, strength, and type of workpiece.

    4 cutting directions

    The machine can be turned through 360° in 4 steps of 90°.

    Rectangular punch with flexibility for profiles

    Ideal for work in hard-to-reach areas, for cuts across edges and weld seams.

    A powerful 2600 watts

    Powerful motor and sophisticated gear technology. For outstanding ability to handle continuous loads.

    Nibblers: Video on the area of application
    TruToo-N1000, dimensional drawing
    TruTool N 1000, dimensional drawing

    TruTool N 1000, heavy-duty punch
    Ideal for continuous use

    If you frequently use the TruTool N 1000 in continuous use and in sheet thicknesses of 0.4 in., we recommend the heavy-duty punch. The punch is specifically designed for this application and is extremely durable, meaning that you achieve perfect cut quality.

    TruTool N 1000, soft grip and hand protection
    Safe and user-friendly

    The TruTool N 1000 features a soft grip, which ensures a secure hold and low-vibration operation. Integrated hand protection on the motor also provides user-friendly operation and excellent safety during operation.

    Flat sheet

    For cutting straight sheets and trimming them to length. For notches, as well as radial and interior cutouts.

    Seam plate

    Profiles

    For cutting profiles, cuts across edges and weld seams, as well as for dismantling tanks and containers.

    Coil processing

    For cutting coils, relief cuts, and sampling.

    The following consumables and the corresponding accessories are included in the scope of delivery.

    TruTool N 1000, Stempel Standard
    Standard punch

    1 unti 2260113

    TruTool N 1000, Matrize 10
    Die 10 (integrated)

    1 unti 1884904

    Zubehör Standbild
    Handle

    1 unti 0103555

    Zubehör Standbild
    Allen key DIN 911-12

    1 unti 0067920

    Zubehör Standbild
    Tube of grease "S1", 25 g

    1 unti 0121486

    Zubehör Standbild
    Tube of grease "S1", 250 g

    1 unti 0385478

    Zubehör Standbild
    Punching and nibbling oil for steel, 500 ml

    1 unti 0103387

    Zubehör Standbild
    Setting gauge

    1 unti 1411767

    Zubehör Standbild
    Case

    1 unit case 2277078

    Find the right consumables and accessories for your machine here.

    TruTool N 1000, standard punch
    Standard punch

    For processing aluminum and mild steel 400 N/mm2

    1 unit 2260113
    Set of 2 1264155
    Set of 5 1264156
    TruTool N 1000, punch CR
    Punch CR

    For processing stainless steel 600 N/mm2 and 800 N/mm2

    1 unit 2260114
    Set of 2 1264412
    Set of 5 1264413

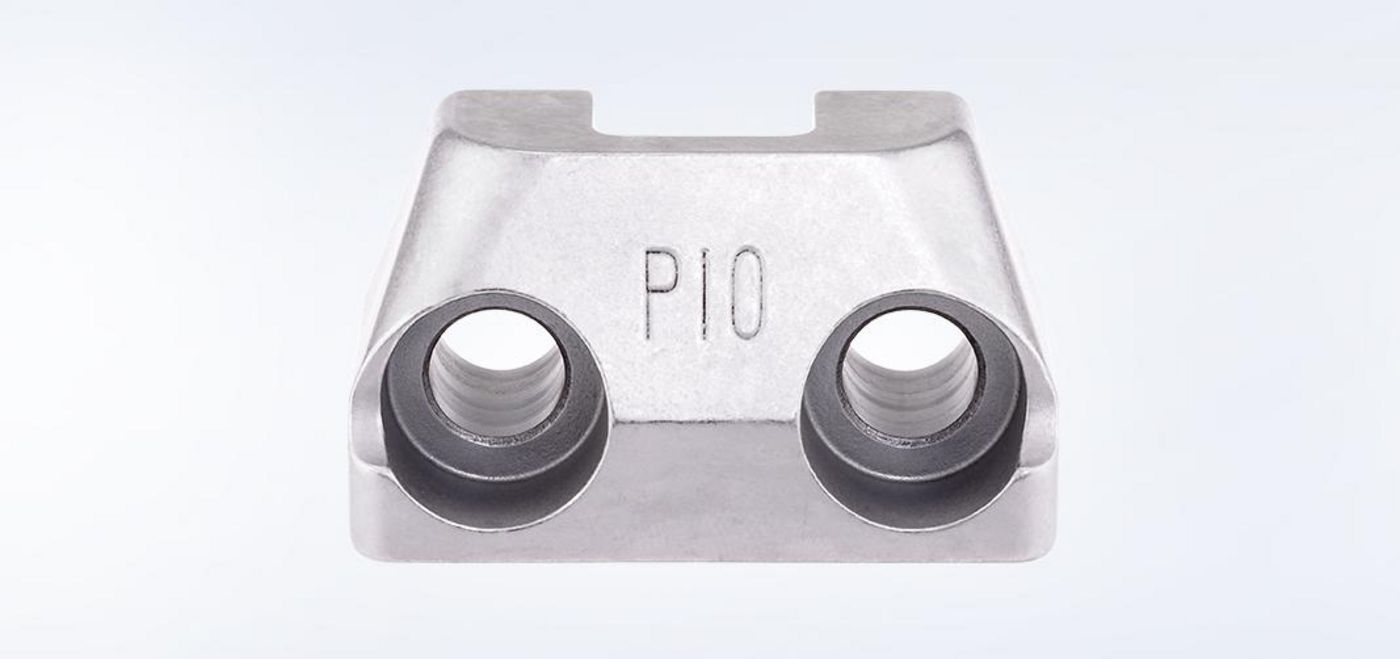

    TruTool N 1000, die P10
    Die P10

    Well-suited for processing profile sheets from 7 - 10 mm

    1 unit 1884903
    Set of 2 1264185
    TruTool N 1000, die No. 5
    Die No. 5

    For processing aluminum, mild steel, and stainless steel 800 N/mm2 up to 5 mm

    1 unit 1884909

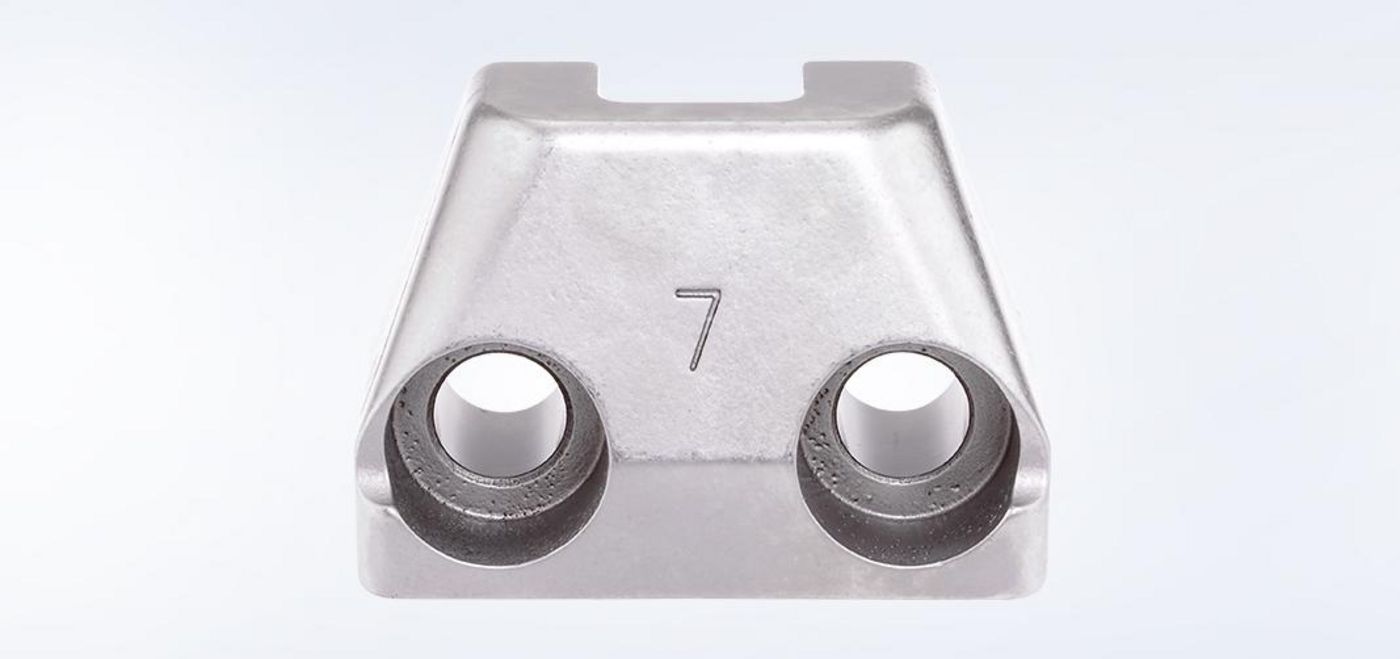

    TruTool N 1000, die No. 7
    Die No. 7

    For processing aluminum, mild steel, and stainless steel 600 N/mm2 from 5 - 7 mm

    1 unit 1884905
    Set of 2 1264184

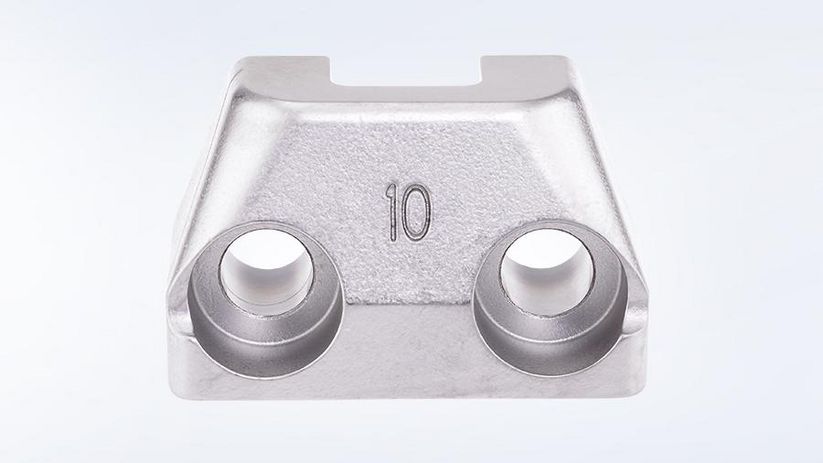

    TruTool N 1000, die No. 10
    Die No. 10

    For processing aluminum and mild steel from 7 - 10 mm

    1 unit 1884904
    Set of 2 1264177

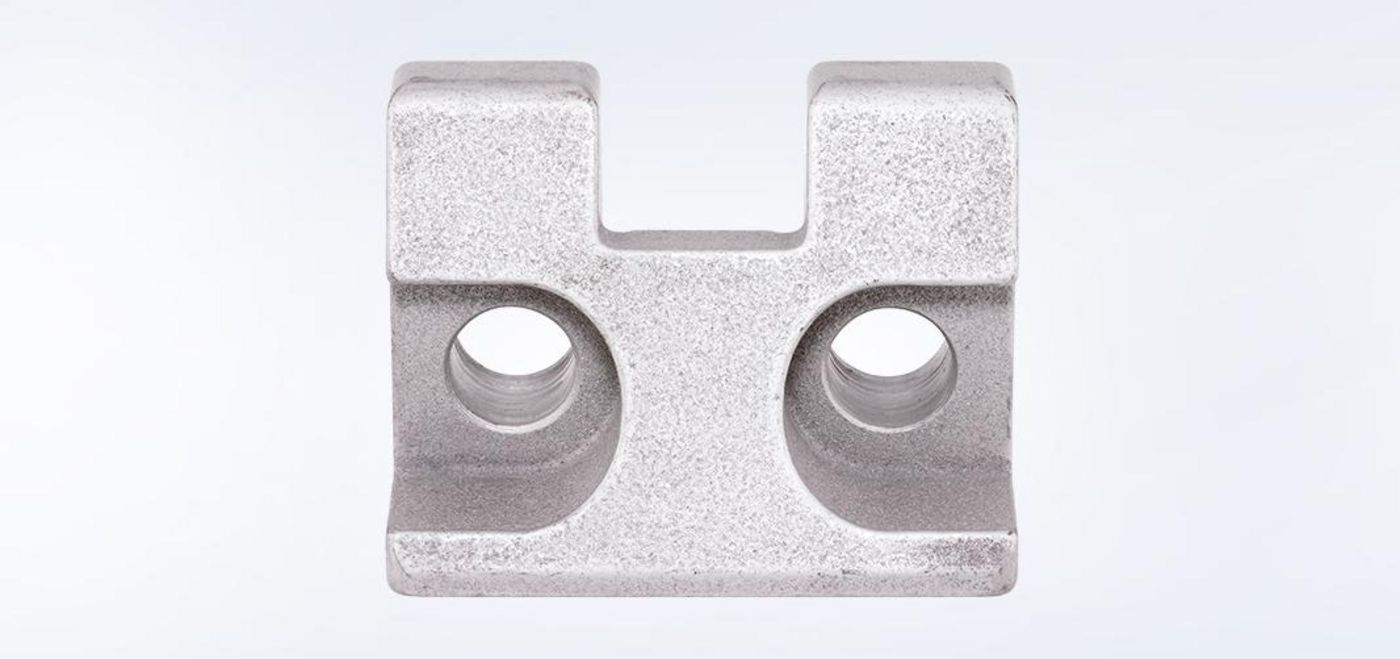

    TruTool N 1000, punch guide
    Punch guide

    1 unit 1884906
    Set of 2 1264368
    Still image of accessories
    Wearing plate

    Protects the die holder against excessive wear

    Set of 2 1264375
    Set of 5 1264376
    TruTool N1000, chip bag
    Chip bag

    To collect chips

    1 unit 115215
    Still image of accessories
    Punching and nibbling oil for steel

    500 ml bottle 103387
    Still image of accessories
    Punching and nibbling oil for aluminum

    1,000 ml bottle 125874
    Case
    Case

    1 unit 121585
    TruTool N 1000 1st speed
    TruTool N 1000 2nd speed
    Maximum sheet thicknesses
    Maximum sheet thickness, steel up to 400 N/mm² 10 mm 8 mm
    Maximum sheet thickness, steel up to 600 N/mm² 7 mm 5 mm
    Maximum sheet thickness, steel up to 800 N/mm² 5 mm 4 mm
    Maximum sheet thickness, aluminum up to 250 N/mm² 12 mm 10 mm
    Radii
    Smallest radius 300 mm 300 mm
    General
    Working Speed 1 m/min 1.6 m/min
    Stroke rate with nominal load 230 RPM 370 RPM
    Starting hole diameter 75 mm 75 mm
    Nominal power consumption 2600 W 2600 W
    Weight
    Weight without cable 14.7 kg 14.7 kg
    PDF <1MB
    Technical data sheet

    The technical data of all product versions as a download.

    This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
