TruTool PN 201 Li-ion rechargeable battery 18 V, dimensional drawing
Powerful, cordless machine with a long tool
For the first time, you can use the TruTool PN 201 battery machine cordlessly to cut sheet thicknesses in mild steel up to 2 mm, even in the case of doubled sheets. The extraordinarily strong machine with a long tool is particularly well-suited to deep trapezoidal sheets of up to 162 mm. The tool can be rotated 360° on the spot. The cutting direction, punch, and die carrier can be changed quickly, without the need for tools. For example, with the 4 Ah rechargeable battery you can therefore cut up to 54 meters in mild steel and a sheet thickness of 1 mm. You can choose from various tool depths to broaden the areas of application.
Machine with long tool
Primarily for processing profile depths of up to 6.37 in. Also well-suited to C-L-U profiles.
Ideal for hard-to-reach places
You can adjust the working direction through 360° in steps of 45° easily, without the need for tools.
Minimizes setup times
The punch and die carrier can be changed quickly without tools.
The perfect combination
The rechargeable battery achieves a runtime that is up to 60% longer due to the Power-Head-Technology and brushless motor.
Profiles
For cutting C-L-U profiles.
Trapezoidal sheet
For cutting profile depths up to 162 mm. For straight and diagonal cuts.
The following consumables and the corresponding accessories are included in the scope of delivery.
Standard punch (integrated)
1 unti 2260206
Standard die (integrated)
1 unti 2260207
Punch guide (integrated)
1 unti 1884927
PN 201 tool (integrated)
1 unti 1750692
Wear plate (integrated)
1 unti 2260208
1 hexagonal wrench T x 20
1 unti 0359907
4 Ah rechargeable battery 18 V (2 units)
1 unti 2272665

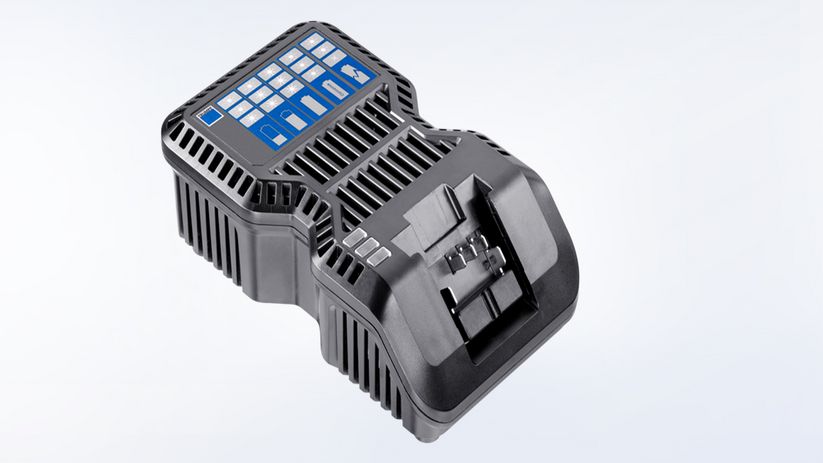

Charger 100 - 240 V incl. cable
1 unti 2272666
Belt clip
1 unti 2272758
TRUMPF Box M2
1 unti 1770890
Find the right consumables and accessories for your machine here.
Standard punch
1 unit
2260206
Set of 2
2260376
Set of 5
1315713
Standard die
1 unit
2260207
Set of 2
1264153
Set of 5
1264154
Die P1
Thin-sheet die up to sheet thickness 1 mm
1 unit
2260209
Wearing plate
Protects the die holder against excessive wear
1 unit
2260208
Set of 2
1429275
Set of 5
1429276
Punch guide
1 unit
1884927
Set of 2
1264367
Set
2 x punch, 1 x die and 2 x wearing plate
Set of 1
1429289
Tool TruTool N 200
1 unit
1750694
Tool TruTool PN 201
1 unit
1750692
Punching and nibbling oil for steel
500 ml bottle
103387
Punching and nibbling oil for aluminum
1,000 ml bottle
125874
Li-ion rechargeable battery 18 V, 2 Ah
1 unit
2272664
Recharger LG 18V / 10.8V
For Li-ion rechargeable battery 18 V with 2 Ah, 4 Ah, or 5 Ah. Cable included.
1 unit (USA)
2275872
1 unit (DE / CH)
2272666
1 unit (GB)
2275871
Belt clip
1 unit
1886524
TRUMPF Box M2
1 unit
1770890
Up to 60% more rechargeable battery running performance
The Power-Head-Technology is specifically designed for low-voltage rechargeable battery technology and ensures up to 20% longer running performance per battery charge. With its high torques, low power consumption, and minimal heat generation, the brushless motor provides even more battery performance. This means that you can work for up to 40% longer. The 4 Ah rechargeable battery cuts up to approx. 54 meters in mild steel and a sheet thickness of 1 mm and, in the case of a sheet thickness of 2 mm, you can reach up to approx. 26 meters.
Compact, lightweight, and compatible
The 18 V battery machine has a compact and light design and allows fatigue-free work. The soft grip ensures safe and low-vibration working. You can combine the 18 V Li-ion rechargeable batteries with all current TRUMPF battery machines and the charger in their voltage class. The Li-ion battery machines are also available as solo machines.
Optimal working speed
You can use the speed controller to adjust the working speed to suit the individual cutting task. It is extremely efficient if you work in accordance with the predefined cutting lines or a template. It is also well-suited to frequent processing of radii and stainless steel. The electronic overload protection offers yet another notable benefit.
TruTool PN 201 Li-ion battery 18 V
| |
|---|---|
| Maximum sheet thicknesses | |
| Maximum sheet thickness, steel up to 400 N/mm² | 2 mm |
| Maximum sheet thickness, steel up to 600 N/mm² | 1.5 mm |
| Maximum sheet thickness, steel up to 800 N/mm² | 1 mm |
| Maximum sheet thickness, aluminum up to 250 N/mm² | 3 mm |
| Radii | |
| Smallest radius | 50 mm |
| General | |
| Working Speed | 1.6 m/min |
| Idle run stroke rate | 1200 1/min |
| Starting hole diameter | 24 mm |
| Voltage | 18 V |
| Weight | |
| Weight (with 2 Ah rechargable battery) | 2.2 kg |
| Weight (with 4 Ah rechargable battery) | 2.5 kg |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
