Airflow parable

Mechanical engineering and system construction TruPrint Aluminum Additive manufacturing

The extraction parable in the TruPrint 5000 enables an even return of the shielding gas flow from the build cylinder. The component is hard anodized black to ensure the reflection of the scattered beam and corrosion resistance. Additive manufacturing enables the production of complex geometries at low component costs in comparison to conventional manufacturing methods.

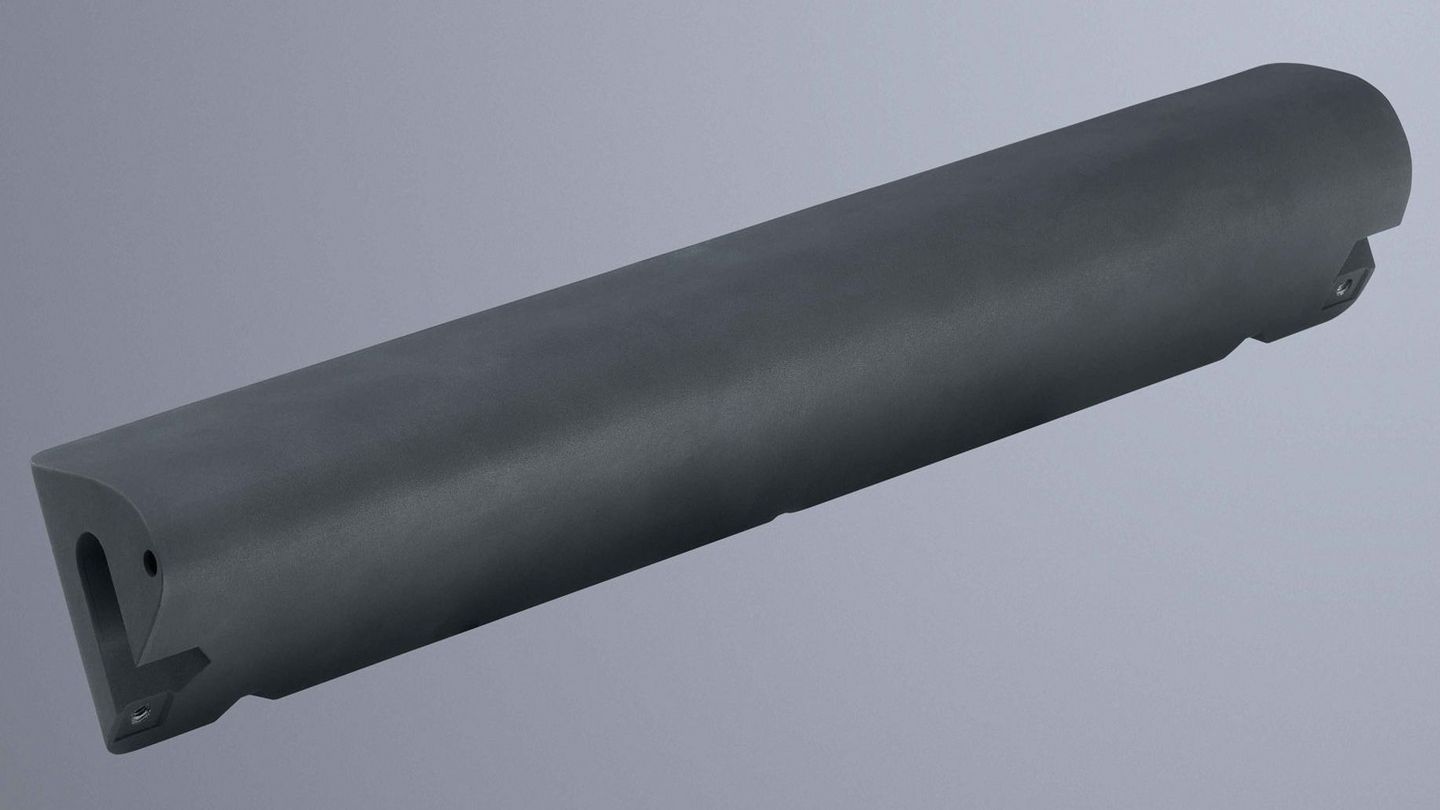

Additively manufactured airflow parable

Flow-optimized design

Get in touch with our additive manufacturing experts!

Do you have a component that you would like to 3D print? Would you like to know what potential savings there are, and what advantages you could benefit from with additive manufacturing? Then get in touch with us today to arrange an individual consultation with our experts.


Facts & figures about the example part

Material: AlSi10Mg

Volume: 172 cm³

Components: 1

Height: 400 mm (mounted)

Weight: 460g

Construction duration: 70 hours for 18 units

Number of layers: 6701

Created by: TRUMPF

The advantage of additive manufacturing is the fast development time. In short cycles, prototypes made of plastic were produced, measured, and optimized by our colleagues in the Development department until the assembly had achieved a perfect flow. I then worked with my colleagues to prepare the design for the 3D metal printing process. The innovation workshop then took over production using additive manufacturing. This provided us with a first class result.

Felix Linder

Find out more about the product

TruPrint 3000, flexible solution for industrial 3D printing
TruPrint 3000

TruPrint 3000 is a universal medium-format machine (LMF / PBF / LPBF) with Industrial Part and Powder Management. This mean you benefit from even more flexibility, quality and productivity for your additive series production – now also with the full-field multilaser option with two 500 watt lasers from TRUMPF. Productivity is almost doubled, independent of the component geometry, and the part costs are significantly decreased.

To the product
