    The dynamic compact storage system

    The TruStore Series 3000 compact store grows along with your demands, reduces space requirements, and can be developed into a fully automatic system. The TruStore Series 3000 comes with a storage tower and pallet picker crane as standard. You can select the height of your storage system from 15 possible levels, and the storage compartments can be adjusted to 3.5 inches or 6.5 inches. The storage system can be easily connected to your TRUMPF 2D laser cutting machine, punching machine, or punch laser machine. The modular principle enables expansion at any time.

    Maximum productivity

    Increase your machine utilization rate by 100% – with an unmanned shift.

    Saves space

    The TruStore Series 3000 enables floor space savings of up to 85%.

    Modular principle

    With the modular principle, it is possible to convert or expand at any time

    High level of storage capacity

    Store up to 245 tons in large format.

    Setup, functions, and extensions to the TruStore compact store
    TruStore Series 3000: Quick to set up
    TruStore with PartMaster
    TruTops Fab Storage module

    TruTops Fab Storage module

    Whether it's for manual stores, automatic unprocessed-material storage systems, or large-scale storage systems, the TruTops Fab Storage module enables you to control the entire material flow of your production and manage your inventories. The software enables communication between the storage system and machine as well as with conventional ERP systems.

    Software

    The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.

    With additional equipment options, you can increase the capacity of the TruStore Series 3000.

    TruStore Series 3000, space-saving storage of auxiliary pallets with storage cassettes
    Auxiliary pallets with storage cassettes

    Space-saving storage of auxiliary pallets with storage cassettes

    PartMaster
    Connection

    Connection of a TruLaser 3030 fiber laser machine to the TruStore system with LiftMaster Compact and PartMaster

    TruStore Series 3000, multiple-machine connection
    Multiple-machine connection

    You can connect multiple machines to the TruStore as required, either directly or indirectly

    Weighing system

    Precise, to-the-second recording of stock: The weighing system weighs the sheet stack on the pallet picker crane.

    TruStore Series 3000, connection of a TruLaser 3030 fiber laser machine to the TruStore system with LiftMaster Compact and PartMaster

    Direct connection of a TruLaser 3030 fiber laser machine to the TruStore system, also with LiftMaster Compact and PartMaster.

    TruStore 3030 connected to a TruLaser 3030 with LiftMaster Store Linear, multiple-machine connection

    You can connect multiple machines to the TruStore as required, for example two TruLaser 3030 systems with a LiftMaster Store.

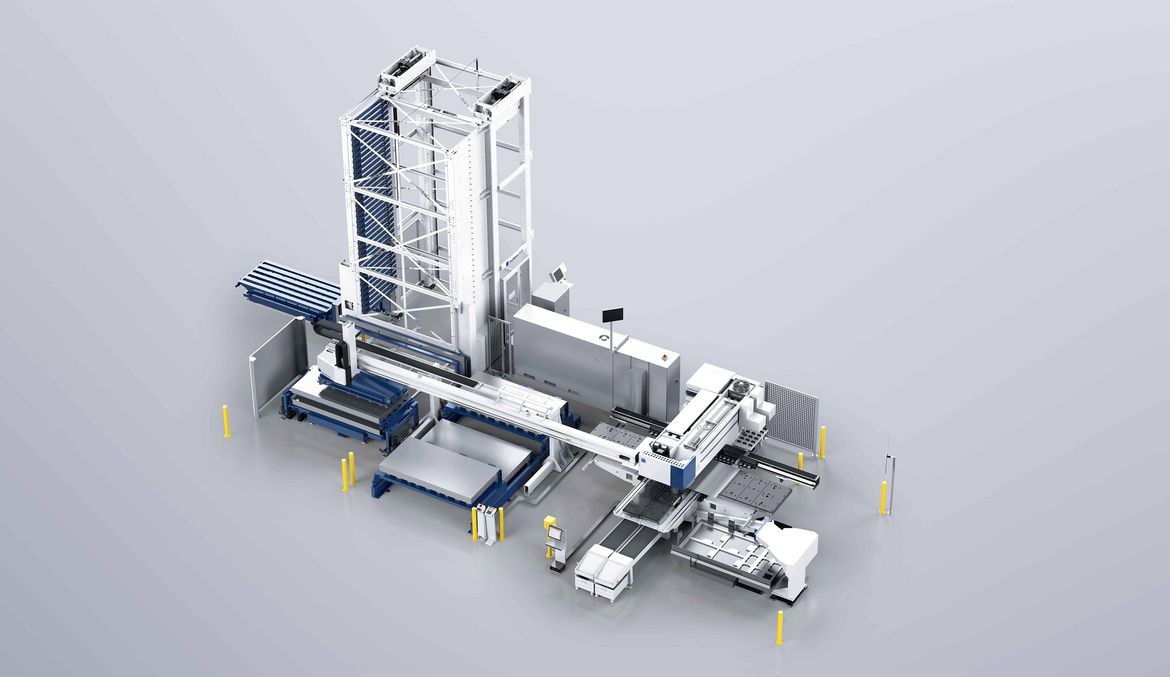

    TruStore 3030 connected to a TruMatic 7000 with SheetMaster, dual loading carts on rails, SortMaster Pallet, SortMaster Box, GripMaster, and ToolMaster

    TruStore 3030 connected to a TruMatic 7000 with SheetMaster, dual loading carts on rails, SortMaster Pallet, SortMaster Box, GripMaster, and ToolMaster

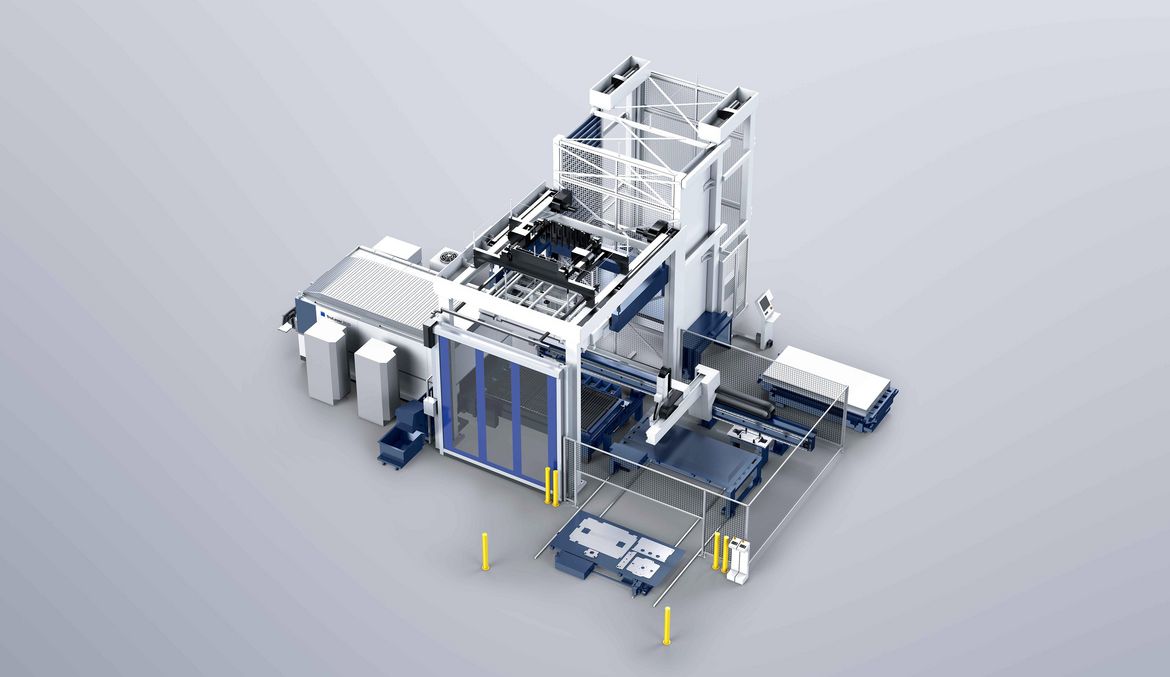

    TruStore 3030 connected to a TruLaser 5030 with LiftMaster Store and SortMaster

    TruStore 3030 connected to a TruLaser 5030 with LiftMaster Store and SortMaster

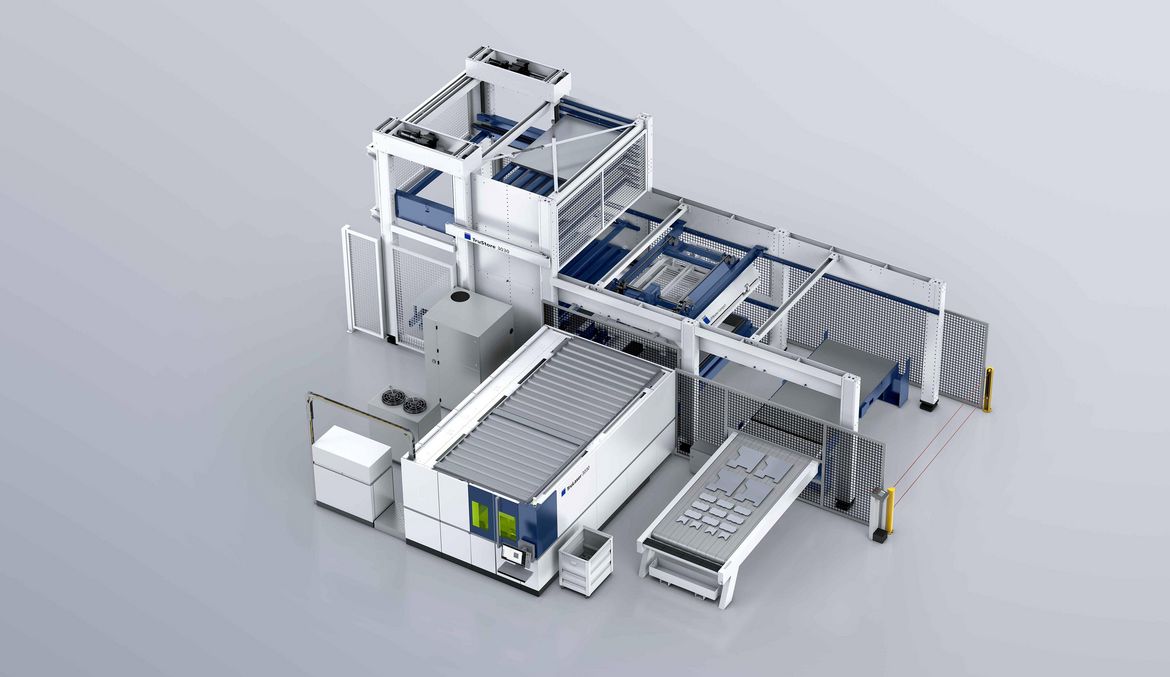

    TruStore 3030 connected to a TruLaser 3030 with LiftMaster

    TruStore 3030 connected to a TruLaser 3030 with LiftMaster

    This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
