Cost-effective entry-level machine
The TruPunch 1000 is the perfect entry to professional punching. The compact machine excels with its high level of processing flexibility: In addition to just punching, you can also use it to form threads, extrude, and bend flanges. You can process midsize sheets completely in one tool setup without repositioning. You can even produce smaller orders and lot sizes economically, quickly and with flexibility.
The TruPunch 1000 masters all of the relevant applications of a TRUMPF punching machine.
TRUMPF offers top quality punching tools such as the MultiTool or the MultiShear slitting tool.
The intuitive control enables the immediate production of simple and complex parts.
Produce with flexibility using tools for every application, for example, flanges, cups, roller folding. For this component, the following tools were used: stepping tool, bracket tool, cup tool rectangular and round, offsetting roller tool, and pinching roller tool
With the largest tool range in the world, the machine offers the highest level of processing flexibility. For this workpiece, the following tools were used: beading roller tool, MultiCut tool, cup tool, and offsetting roller tool
TruPunch 1000 (S05) medium format
TruPunch 1000 (S05) small format
|Width||6550 mm 1||6000 mm 1|
|Depth||7144 mm 1||7144 mm 1|
|Height||2155 mm 1||2155 mm 1|
|Maximum stroke rate|
|Punching (E = 1 mm)||600 1/min||600 1/min|
|Marking||1300 1/min||1300 1/min|
|Punching mode, X axis||2500 mm||2050 mm|
|Punching mode, Y axis||1250 mm||1250 mm|
|Maximum sheet thickness||6.4 mm||6.4 mm|
|Maximum workpiece weight||150 kg||150 kg|
|Maximum punching force||165 kN||165 kN|
|MultiTool tool changing time||2.4 s||2.4 s|
|Number of tools/clamps||18 pieces / 2 pieces||15 pieces / 2 pieces|
|Maximum part size, part removal flap, punching||180 mm x 150 mm||180 mm x 150 mm|
|Maximum part size, part removal flap, punching (with moving table)||180 mm x 500 mm||180 mm x 500 mm|
|Maximum part size, fixed chute, punching (with moving table)||460 mm x 500 mm||460 mm x 500 mm|
|Average power input of active auto-shutdown||0.3 kW||0.3 kW|
|Average power input in production||4.3 kW||4.3 kW|
The TruPunch 1000 guarantees you the best part quality with a high level of efficiency. Common cuts lower the amount of scrap and make optimum use of the material.

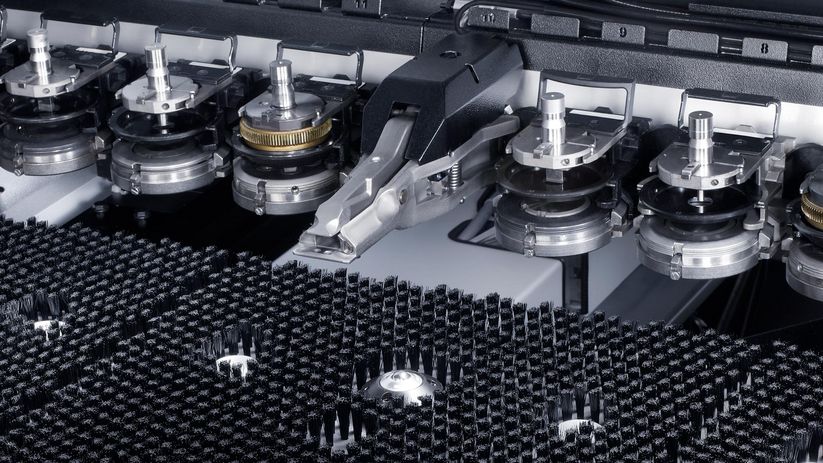

Brush tables are available for gentle material handling.

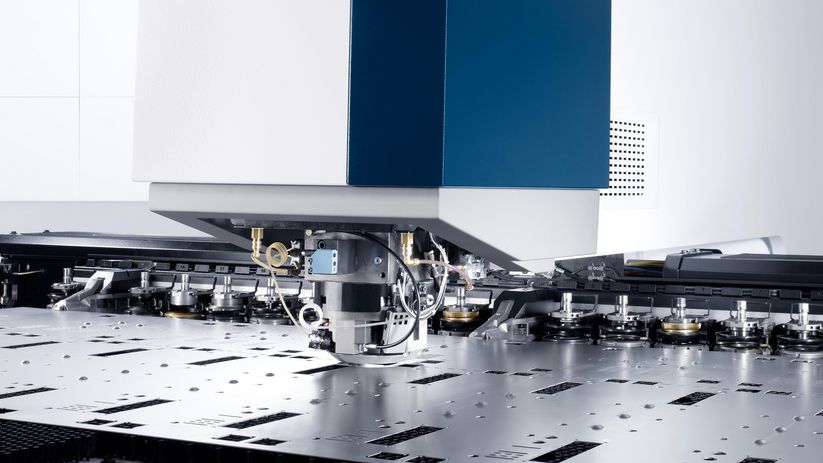

As a result of the On-Demand Drive, the punching head hydraulic system always works to the optimum level. This leads to reduced noise generation during non-productive times and reduces the hydraulic load of the entire system.
TRUMPF is the first manufacturer worldwide to offer punching machines with skeleton-free processing. This innovation saves material and increases process safety.
With the blank processing package, you can also process blanks simply and in a process-reliable way. This is made possible by a second index pin and additional clamp, amongst other things.
With the parts conveyor belt, punching parts are ejected in a process-reliable way.
Construct and program your laser, punching, and combination punch laser machines intelligently with TruTops Boost, your all-in-one 3D solution. Numerous automated processes save you time-consuming routine processes and the joint nesting pool saves time and material. You also always have an overview of all manufacturing orders and order-based work.
The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.
You can boost the productivity of your punching machine with a tool adapter for up to ten inserts – in particular for small punching operations.
Use our patented cutting technology for outstanding edge quality without nibbling marks. A die with brush inserts also prevents scratches.
With a length of up to 4 inches, you can take advantage of new sheet metal design options. Processing in just one stroke ensures the highest quality.
TRUMPF offers the world's largest range of punching tools on the market. You will find the perfect solution for every punching and forming application.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
The dimensions are approximate; the dimensions specified in the installation plan are valid.
