Scanner welding – highly productive processing with no non-productive times

Scanner welding today allows highly productive and flexible system concepts which make welding in series production faster, more precise and more economical than conventional welding processes.

Scanner welding using CalibrationLine

In scanner welding, the beam guidance is done using mobile mirrors. The beam is guided by changing the angles of the mirrors. A processing field emerges, which enables highly dynamic and precise welding. The field size depends on the working distance and the deflection angle.

The processing speed and size of the focal diameter on the workpiece depend on the imaging properties of the optics, the beam incidence angle, the laser beam quality and material.

The focal point can also be moved very dynamically in the Z direction by adjusting an additional lens system. This makes it possible to fully process 3D components without moving the processing head or the component.

Due to the very fast translation movements, non-productive times are reduced to virtually zero and the laser device can produce in almost 100% of the available production time.

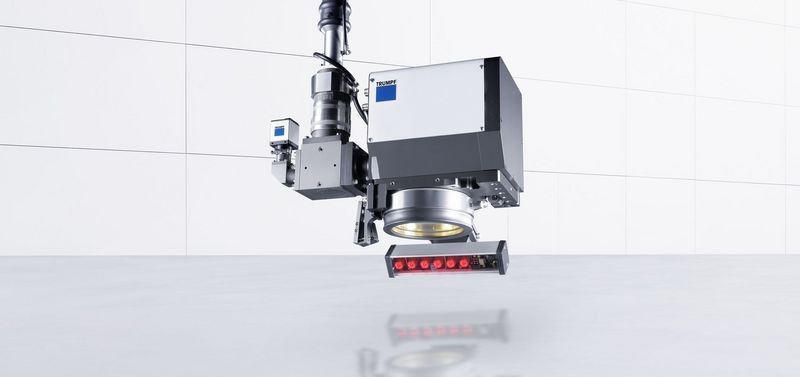

Scanner welding of a car door with the programmable focusing optics PFO 33

During welding, the scanner optics can also be guided over a workpiece in conjunction with a robot. This "flying" movement is the reason it is called "Welding-on-the-fly": robot and scanner optics synchronize their movements in real time. Using a robot increases the workspace significantly and facilitates real 3D component processing.

A convenient editor can be used to program a PFO which can design and save welding figures on a workpiece.

High-performance disk lasers with high beam quality are used as beam sources. One or more flexible laser light cables guide the laser light from the laser source to the processing stations.
