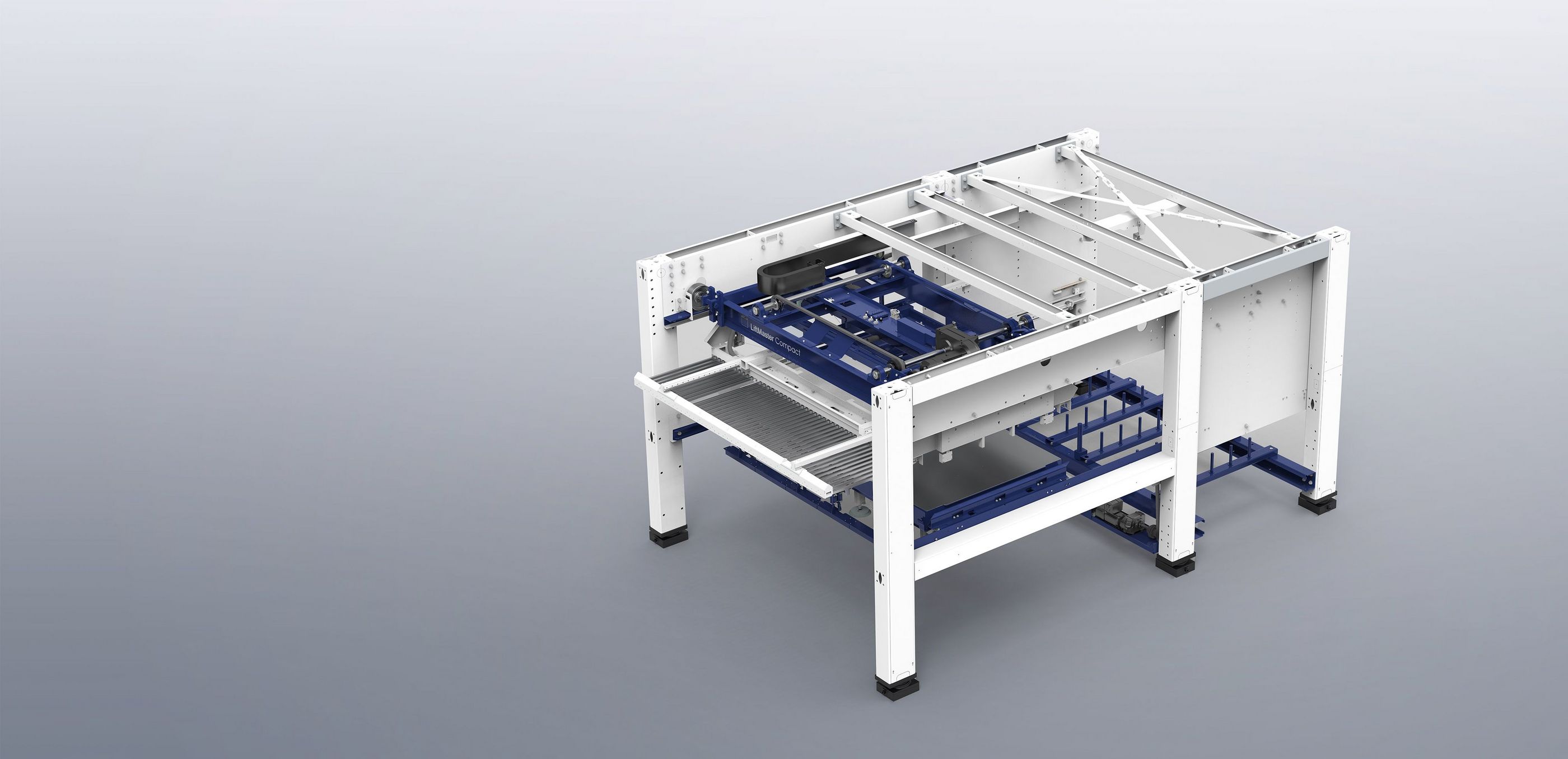

LiftMaster Compact, our best-in-class
LiftMaster Compact, our best-in-class
Automation

LiftMaster Compact

Our best-in-class

Our best-in-class

The LiftMaster Compact is the fastest and most compact loading and unloading unit in the TRUMPF portfolio. The dynamic and variable automation solution is particularly attractive for fast sheet processing times, regardless of whether with or without storage connection. It requires little space and saves time and money with its short cycle time of 90 seconds.

Production around the clock

Even without supervision, the LiftMaster Compact will run 24/7 without compromising process reliability.

Fast process cycles

For a complete loading and unloading cycle, including pallet change, the LiftMaster Compact requires just 90 seconds.

Simultaneous operation

With the synchronous loader, the LiftMaster Compact can load and unload workpieces simultaneously.

A modular approach to creating a complete processing cell

Expand your LiftMaster Compact into a complete processing cell with a TruStore or PartMaster sorting station.

LiftMaster Compact – our best-in-class
LiftMaster Compact with PartMaster
Integration of PartMaster with TruStore for flexibility both day and night
- / -
LiftMaster Compact large format
LiftMaster Compact max format
Load
Max. sheet format 3000 mm x 1500 mm 4000 mm x 2000 mm
Min. sheet format 1000 mm x 1000 mm 1000 mm x 1000 mm
Max. sheet thickness 25 mm 20 mm
Max. sheet weight 900 kg 1600 kg
Unload
Max. sheet format 3000 mm x 1500 mm 4000 mm x 2000 mm
Min. sheet format 150 mm x 150 mm 150 mm x 150 mm
Max. sheet thickness 25 mm 20 mm
Max. sheet weight 900 kg 1260 kg
PDF <1MB
Technical data sheet

The technical data of all product versions as a download.

TruStore Series 1000
TruStore Series 1000

Practical compact store

TruStore Series 3000
TruStore Series 3000

The most flexible storage

PartMaster
PartMaster

With the PartMaster you can easily remove finished parts and scrap skeletons manually, without problems.

LiftMaster Compact with synchronous loader
Synchronous loader

The synchronous loader has a suction frame that transports a finished part pallet, onto which the cut sheets are placed. It traverses horizontally between the unprocessed material table and the pallet changer.

Cart systems

Instead of the standard unprocessed material table you can use loading carts.

TruLaser 5030 fiber with LiftMaster Compact and TruStore 3030

TruLaser 5030 fiber with LiftMaster Compact and TruStore 3030

TruLaser 3030 with LiftMaster Compact and TruStore 3030

TruLaser 3030 with LiftMaster Compact and TruStore 3030

The TruLaser 3030 in transverse layout with a LiftMaster Compact

The TruLaser 3030 in transverse layout with a LiftMaster Compact

The TruLaser 3030 in longitudinal layout with a LiftMaster Compact and PartMaster

The TruLaser 3030 in longitudinal layout with a LiftMaster Compact and PartMaster

TruLaser 3030 with LiftMaster Compact, PartMaster and TruStore 3030

TruLaser 3030 with LiftMaster Compact, PartMaster and TruStore 3030

- / -

This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
