Powerful and safe
The TruTool TKF 1500 is equipped with a powerful 2,600 W motor.
Hand protection, integrated on the motor, ensures a high degree of user-friendliness and safe operation. The soft grip ensures user-friendly operation with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams, or tubes. The surface roughness remains low.
The extremely powerful motor ensures a high degree of durability.
Hand protection, integrated on the motor, provides a high degree of operation safety.
It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness
You can use the carrier for various angles between 20° and 55°.

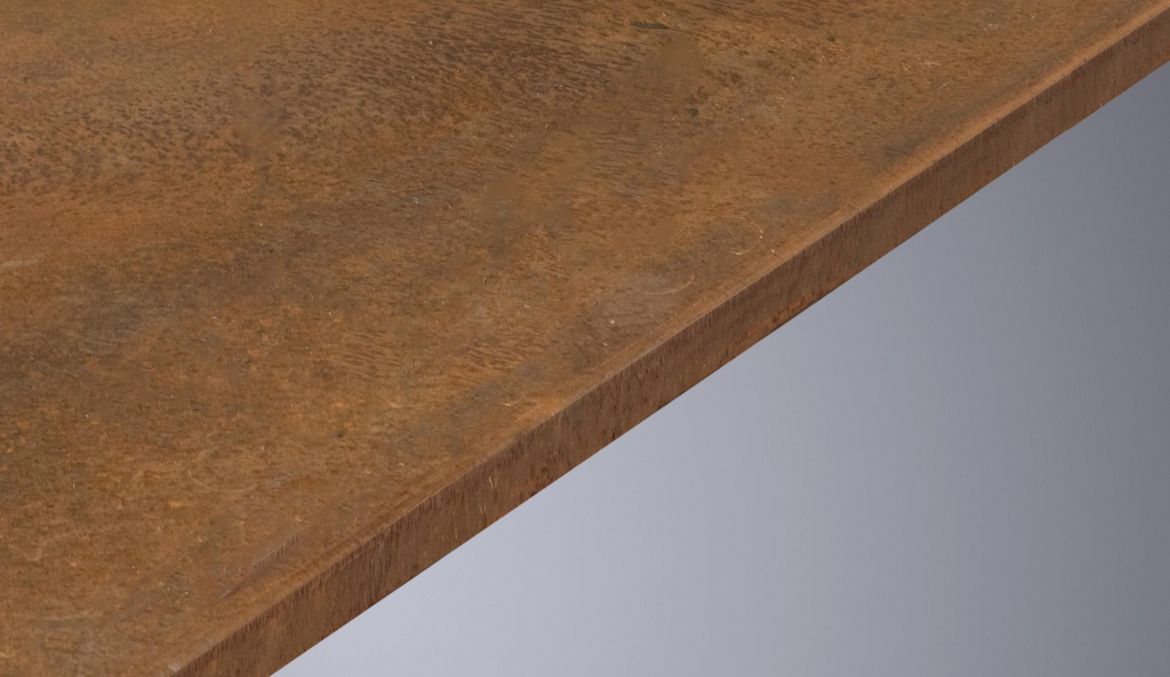

For straight edges and radius edges
Weld seam preparation on outer and inner contours. With interior cutout diameters from 5 inches. Also for T-beams and double T-beams.

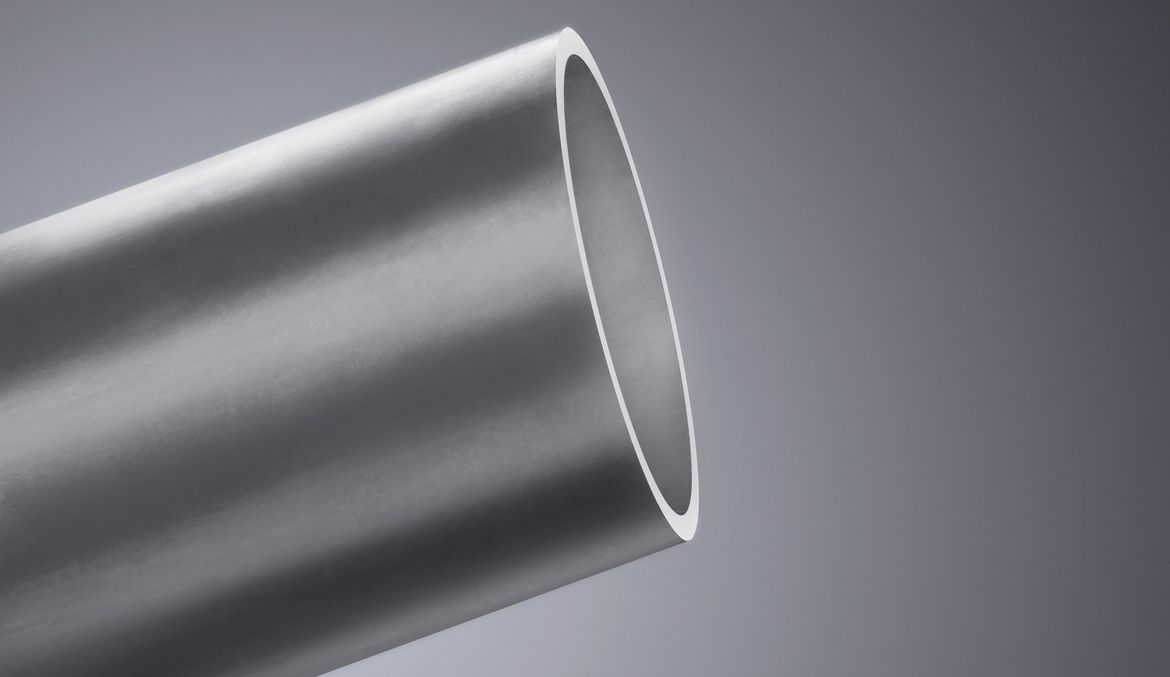

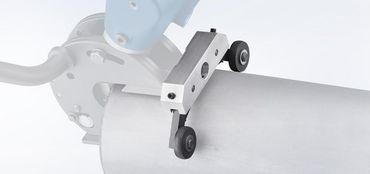

Weld seam preparation on tubes with an inside diameter from 1.2 inches.

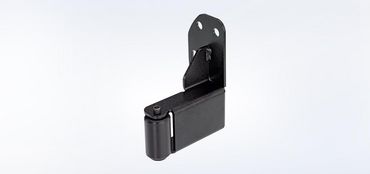

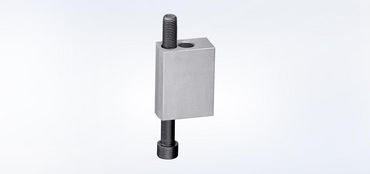

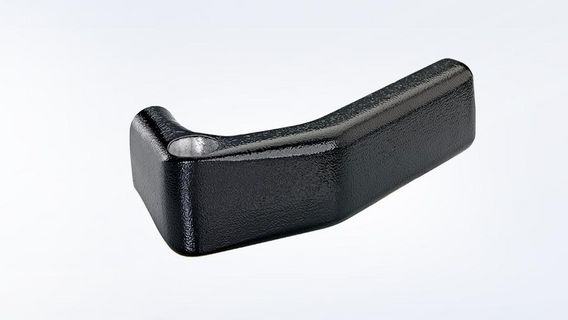

The following consumables and the corresponding accessories are included in the scope of delivery.
1 unit 0223209
1 unit 0023229
1 unit 0023206
1 unit 1238982
1 unit 0017302
1 unit 0017310
1 unit 0078310
1 unit 0118860
1 unit 0103387
1 unit 0121486
1 unit 0068624
1 unit 1411767
Find the right consumables and accessories for your machine here.
TruTool TKF 1500
|Maximum chamfer lengths|
|Max. chamfer length, steel 400 N/mm²||15 mm|
|Max. chamfer length, steel 600 N/mm²||9 mm|
|Max. chamfer length, steel 800 N/mm²||6 mm|
|Smallest radius||55 mm|
|Working Speed||2 m/min|
|Stroke rate with nominal load||370 RPM|
|Nominal power consumption||2600 W|
|Sheet Thickness||4 mm - 160 mm|
|Weight with handle, without cable||16.5 kg|
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
