TruTool TKF 1500 with 2-gear gearbox, dimensional drawing
The powerful tool with 2 gears
The TruTool TKF 1500 is equipped with a powerful 2,600 W motor and a 2-gear gearbox. This enables you to perform processing tasks adapted to the specific application. Hand protection, integrated in the motor, ensures a high degree of user-friendliness and ensures safe operation. The soft grip enables you to work with low vibrations. This means you can always expect consistent, oxide-free results. Regardless of whether you are processing straight sheets, T-beams, or tubes. The surface roughness remains low.
2-gear gearbox
Guarantees perfect results to match the material thickness, strength, and type of workpiece.
2,600 W motor
The extremely powerful motor ensures a high degree of durability.
Work safely
Hand protection, integrated in the motor, results in safe operation.
The right setting
It is quick and easy to adjust the optimal settings for the chamfer height and sheet thickness.
Continuously adjustable from 20° to 55°
You can use the carrier for various angles between 20° and 55°.
For straight edges and radius edges
Weld seam preparation on outer and inner contours. With interior cutout diameters from 5 inches. Also for T-beams and double T-beams.
Tubes
Weld seam preparation on tubes with an inside diameter from 1.2 in.
The following consumables and the corresponding accessories are included in the scope of delivery.
High-tensile cutting tool (integrated)
Integrated

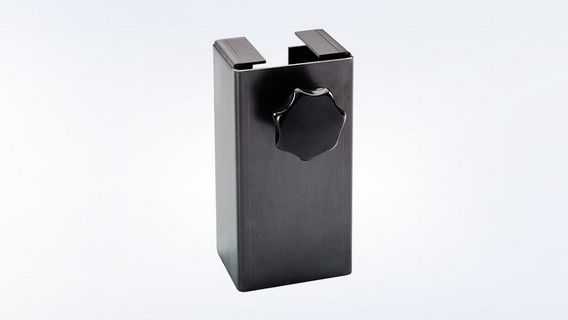

Chip box
1 unit 0023209

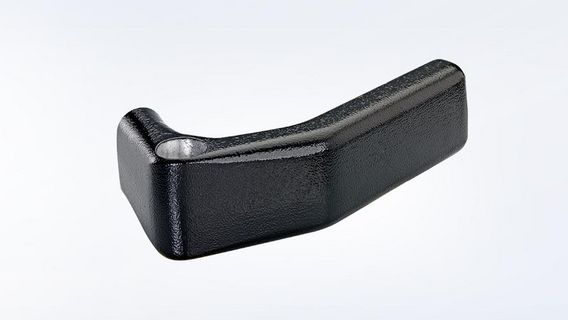

Handle base
1 unit 0023229
Tube-shaped handle
1 unit 0023206
Roller holder complete, right
1 unit 1238982
Hexagon-head screw M 10 x 20 - 10.9 DIN 933
1 unit 0017302
Hexagon-head screw (2 units) M 10 x 20 - 10.9 DIN 933
1 unit 0079310
Wrench AL 17 DIN 3113
1 unit 0078310
Allen key 6 mm
1 unit 0118860
Punching and nibbling oil for steel, 17 oz bottle
1 unit 0103387
Tube of grease "S1", 0.88 oz
1 unit 0121486
Tube of grease "S1", 8.8 oz
1 unit 0385478
Grease gun
1 unit 0068624
Setting gauge
1 unit 1411767
Find the right consumables and accessories for your machine here.
Cutting tool
For processing mild steel between 300 - 500 N/mm2
Set of 2
1263021
Set of 10
1263029
Aluminum cutting tool
For processing aluminum between 200 - 400 N/mm2
Set of 2
1264419
High-tensile cutting tool
For processing mild steel between 500 - 700 N/mm2
Set of 2
1264417
Set of 10
1264418
High-tensile cutting tool 5575
For processing mild steel between 600 - 800 N/mm2
Set of 2
1327480
Set of 10
1327482
Heavy-duty cutting tool
For processing mild steel between 700 - 900 N/mm2
Set of 2
1264420
Set of 10
1264432
Sliding sleeve
1 unit
1884873

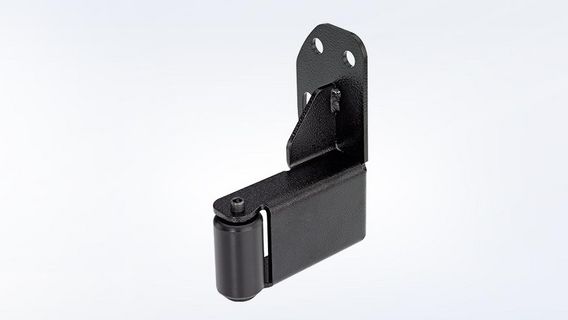

Left roller holder
1 unit
1240848
Handle
Enables fatigue-free work with maximum movement
1 unit
23210
Modification kit 40 - 80 mm
Modification kit for greater workpiece thicknesses of 40 - 80 mm
1 unit
23203
Modification kit 80 - 120 mm
Modification kit for larger workpiece thicknesses 3 - 4.75 in.
1 unit
23204
Modification kit 120 - 160 mm
Modification kit for greater workpiece thicknesses of 120 - 160 mm
1 unit
27799
Roller holder tube processing
For tube external machining Ø 90 - 200 mm with stripper
1 unit
5123
Stripper
For an angle of bevel between 20° and 45°. For special part no. 0027798 for tube processing.
1 unit
23242
55° special-purpose stripper
For an angle of bevel between 20° and 55°
1 unit
32119
Work station with pedestal
Ideal for processing small parts in stationary use. For TruTool TKF 2000, order the adapter 1653155 separately.
1 unit
5079
Work station TKF1500/2000
Ideal for processing small parts in stationary use. For TruTool TKF 2000, the adapter 1653155 must be ordered separately.
1 unit
1343474
Pedestal
Pedestal for work station
1 unit
3677
Punching and nibbling oil for steel
500 ml
103387
Punching and nibbling oil for aluminum
1000 ml
125874
Case
1 unit
121585
TruTool TKF 1500 with 2-speed gearbox, 1st gear
|
TruTool TKF 1500 with 2-speed gearbox, 2nd gear
| |
|---|---|---|
| Maximum chamfer lengths | ||
| Max. chamfer length, steel 400 N/mm² | 15 mm | 15 mm |
| Max. chamfer length, steel 600 N/mm² | 11 mm | 9 mm |
| Max. chamfer length, steel 800 N/mm² | 9 mm | 6 mm |
| Radii | ||
| Smallest radius | 55 mm | 55 mm |
| General | ||
| Working Speed | 1.25 m/min | 2 m/min |
| Stroke rate with nominal load | 230 RPM | 370 RPM |
| Nominal power consumption | 2600 W | 2600 W |
| Sheet Thickness | 4 mm - 160 mm | 4 mm - 160 mm |
| Weight | ||
| Weight with handle, without cable | 19.5 kg | 19.5 kg |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
