Highly polished cores for injection molding
Printed results for highly polished cores made out of H11 using the 500 °C preheating option are crack-free with densities in excess of 99.9%. The polishing properties are also high with no difference to conventional production. Cooling performance is comparable to copper. However, integrated conformal cooling channels have enabled stable plastic parts production in injection molding. Plastic handles produced for an operating room light are able to be produced with a significantly reduced cycle time.
Highly polished core in additive manufacturing design

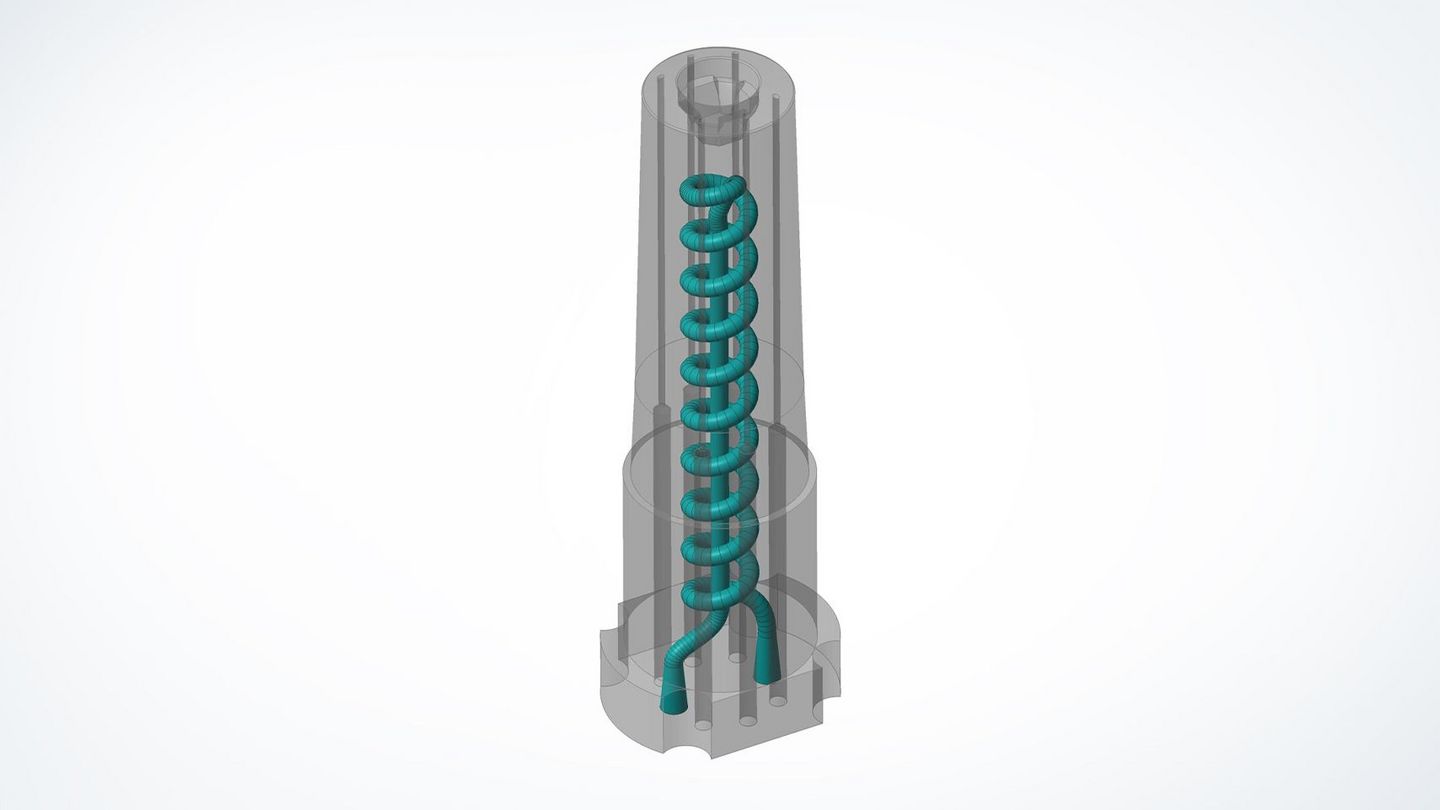

Conformal cooling of the additive manufacturing design
Conventional cooling of the copper insert
Get in touch with our additive manufacturing experts!
Do you have a component that you would like to 3D print? Would you like to know what potential savings there are, and what advantages you could benefit from with additive manufacturing? Then get in touch with us today to arrange an individual consultation with our experts.
Facts & figures about the example part
Material: 1.2343 / H11
Weight: 500 g
Construction duration: 13.9 h
Number of layers: 2,722 ea. 60 μm
Created by: Bretthauer / HOTEC
