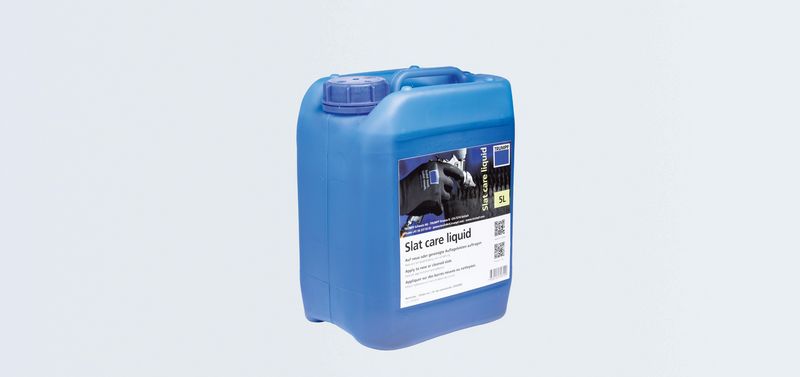

Slat Care Liquid
The protective screen for your slats
Keep slag under control
The new slat care liquid maximises the service life of your slats. This innovative product forms a protective layer on the slats, significantly reducing the build-up and adhesion of slag. Slat care liquid is suitable for all standard cutting materials and works reliably on both mild steel and copper slats. However, slat care liquid has no effect on downstream processes.
Thin protective film acts as a barrier between the bar and slag
Significantly reduced slag buildup and adhesion
Noticeably easier and faster cleaning thanks to less residue on the slats
Suitable for all common cutting materials
No impact on downstream processes

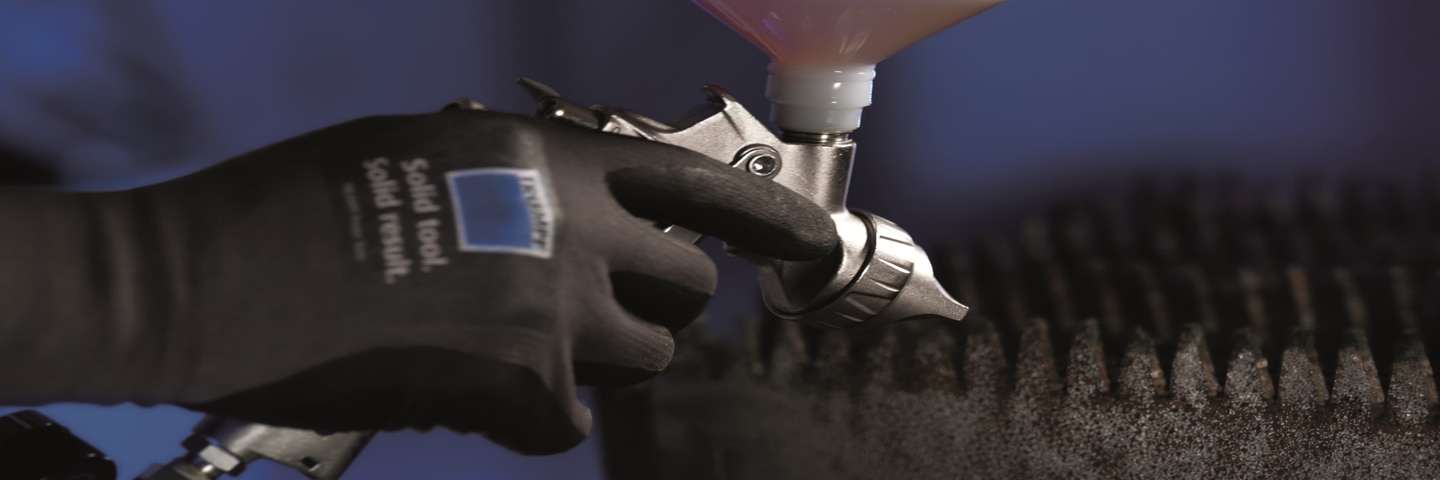

Slat care liquid & spray gun
Videos
Application
How to use the product correctly
Product in focus
Discover the product and its benefits

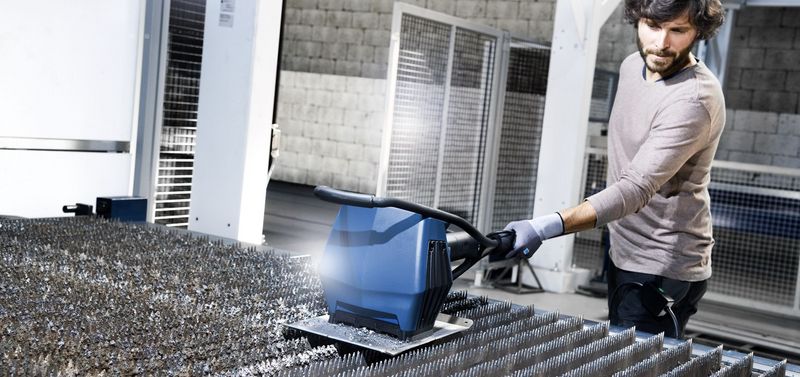

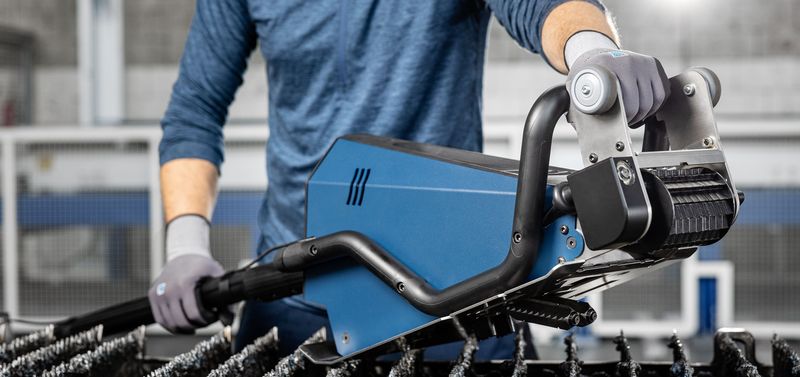

The Perfect Combination
Slat care liquid & slat cleaner
Reduced costs: Increases service life of slats up to 4x
More efficient cleaning with the slat cleaner. Less time and effort required
Consistently high part quality and process reliability due to reduced slag content
Fewer spatters on the rear of components
Flyer
Reduces slag formation and buildup
Frequently Asked Questions: Scope of Application
Slat care liquid is suitable for 2D laser cutting machines (fiber and CO2), regardless of the manufacturer. The protective effect has been successfully tested on various lasers with a laser power of up to 30,000 W .
No, slat care liquid is intended to be used in addition to slat cleaner. The formation of residue and its adhesion are significantly reduced by the spray agent , allowing the cleaning process with slat cleaner to be completed more quickly and with less effort.
Slat care liquid is exclusively designed for spraying slats of 2D laser cutting machines.
Slat care liquid has been successfully tested on slats made of mild steel and copper. The test results show that reliable protection is provided on both materials.
Tests have shown that the recoating process was not adversely affected.
Wearing PPE (protective gloves, safety glasses, breathing mask) is recommended.
Frequently Asked Questions: Usage

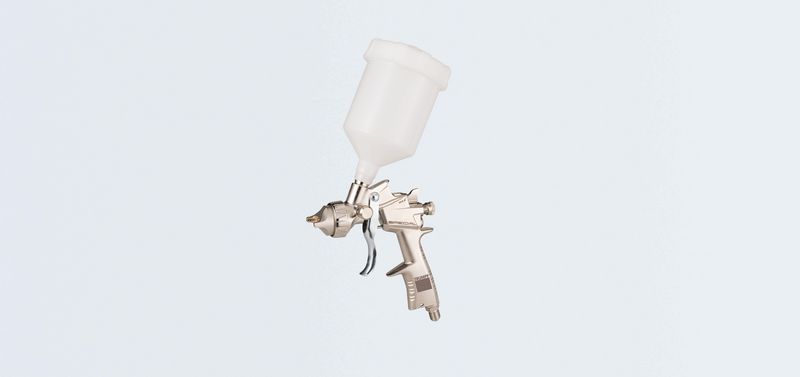

To achieve an optimum spraying result, we recommend using the TRUMPF compressed air spray gun.
Note:
These dosage recommendations should be considered guidelines and are based on optimum conditions for an even application. Adjust the amount based on your requirements and conditions.
Apply slat care liquid at least once weekly to mechanically cleaned or new bars. Adjust the frequency based on requirements and conditions.
Yes, after each mechanical cleaning process, spray the bars with slat care liquid again.
You can start the cutting process immediately after spraying .
Note:
The time between spraying and actual cutting should be no more than 2 days. If this time frame is exceeded, the effectiveness of the spraying agent may be adversely affected
Frequently Asked Questions: Storage
Store the product at room temperature in a dry, clean place, protected from light and frost.
When stored properly in the original, sealed container, the product has a shelf life of at least 24 months.
