Milling head: 3D printing on preform

Tool and mold making TruPrint Tool steel Maraging steel Additive manufacturing

"Preform Advanced" enables hybrid production of milling tools on conventionally manufactured preforms. The sensor-based alignment between the PBF component and preform takes place fully automatically. High alignment accuracy and high reproducibility are guaranteed. Production is cost-efficient and time-efficient thanks to the ability to combine different manufacturing technologies. In this case, the complex functional area of the milling head is optimized in terms of topology and printed on an inexpensively produced cylindrical preform. Up to 25 milling tools fit on one plate.

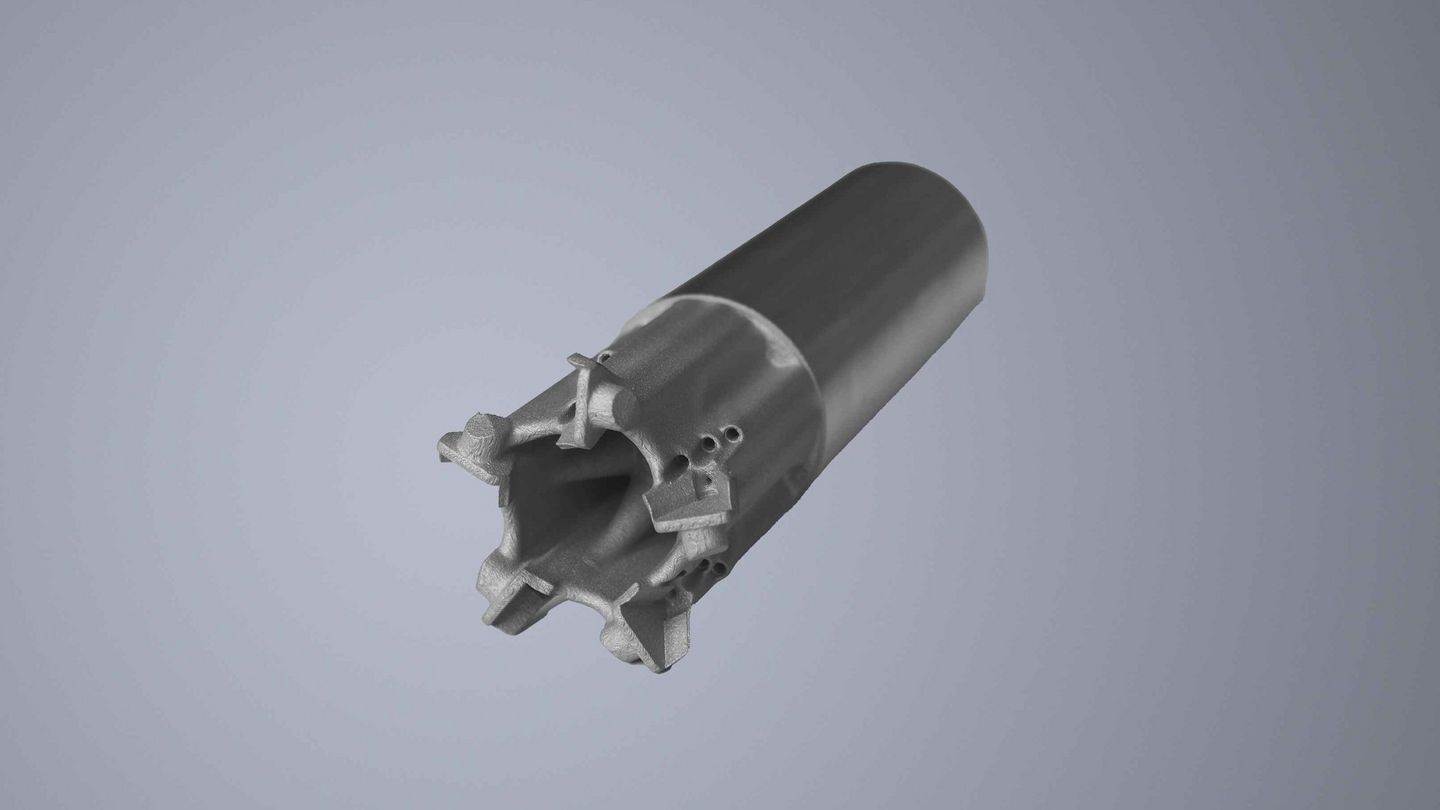

Topology-optimized milling head

3D-gedruckte Fräsköpfe

Topology-optimized milling head

3D-gedruckte Fräsköpfe

In this case, the highly complex functional area of the milling head is inexpensively printed on a cylindrical preform.


Cost-efficient and time-efficient production
High accuracy
Optimized and automated process chain

Get in touch with our additive manufacturing experts!

Do you have a component that you would like to 3D print? Would you like to know what potential savings there are, and what advantages you could benefit from with additive manufacturing? Then get in touch with us today to arrange an individual consultation with our experts.

Contact

Facts & figures for an example part

Material: 1.2709 or 1.2343 - H11

Created by: Paul Horn

Our expert presents the preform possibilities

Preform Advanced functionality

Preform Advanced on the TruPrint 5000 enables industrial hybrid production by combining the best of both worlds. The fully automated, sensor-based approach ensures high accuracy and reproducibility.

Nicolai Essig
TRUMPF Laser and System Technology

Find out more about the product

TruPrint 5000
TruPrint 5000

The highly productive, semi-automated 3D printing system TruPrint 5000 prepares you for industrial batch production – with features such as optional 500 °C preheating and the full-field multilaser equipment with three 500 watt TRUMPF lasers. Thanks to the preform option, the TruPrint 5000 supports hybrid component production. For this purpose, the component structures to be additively manufactured are applied to a blank.
