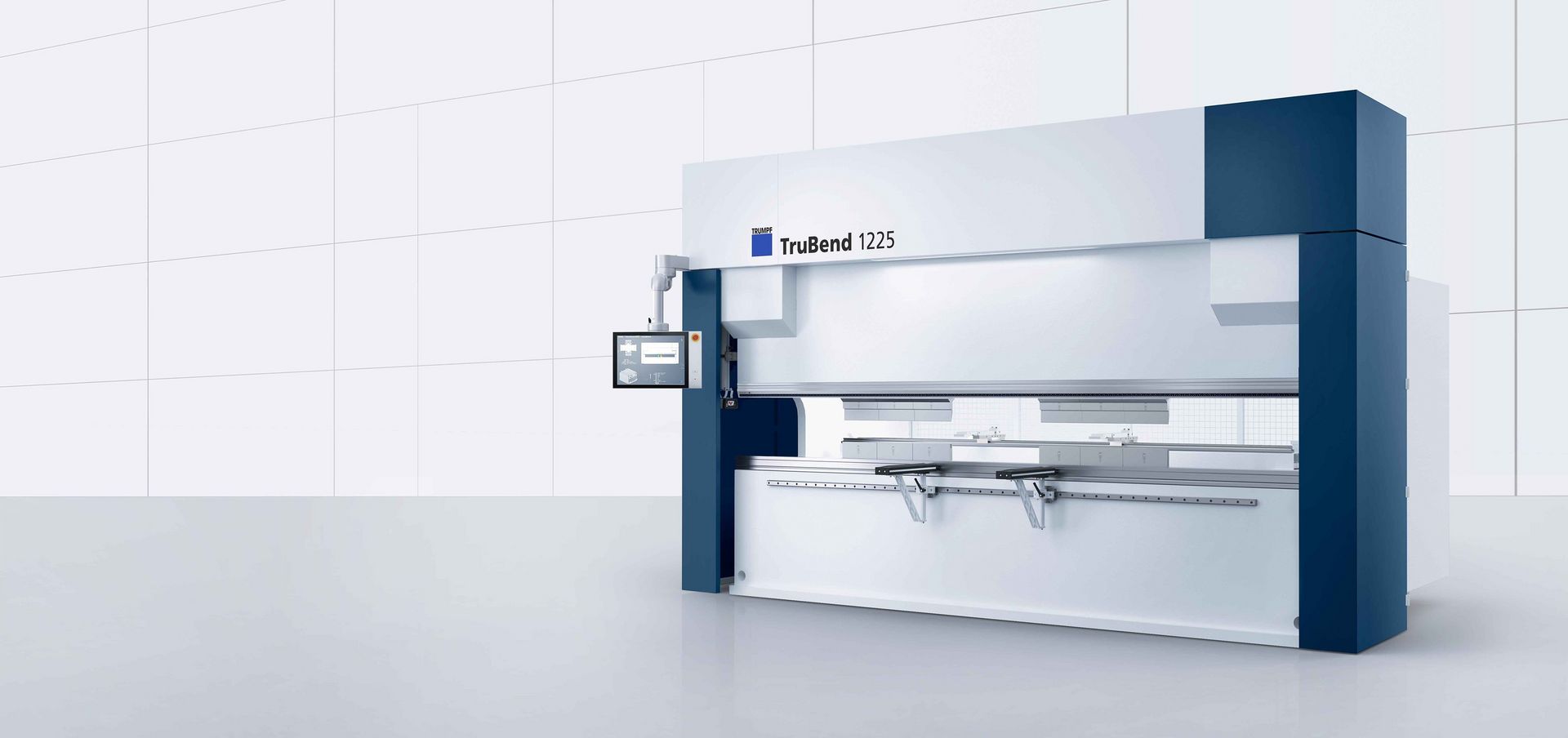

TruBend Series 1000 Basic Edition

Are you looking for an economical way to get started in the TRUMPF bending world? Then the TruBend Series 1000 Basic Edition is the right choice for you. Find out more about our three press brake models Core, Classic and Comfort.
Starting from € 72,120

Request quote

Intuitive reliable machine

The TruBend Series 1000 Basic Edition is focused on what really counts: An intuitive and reliable solution in TRUMPF quality. The machine impresses through easy and reliable operation, with high levels of precision and appropriate safety standards. Thanks to a robust system design, high-quality components, and an intuitive programming system, the TruBend Series 1000 Basic Edition is your perfect introduction to TRUMPF bending technology.

Simple operation

Program faster than ever before: The TRUMPF control of the TruBend Series 1000 Basic Edition enables simple, fast numerical and graphic programming.

Precision bending

The 4-axis backgauge ensures the correct positioning of the sheet metal and facilitates the bending of complex parts with high reproducibility.

Part of the TRUMPF family

As part of the TRUMPF Eco System, the BendGuard Basic ensures safe operating. TRUMPF Remote Service offers you high machine availability.

Which model is right for you?

With the TruBend Series 1000 Basic Edition you have the choice between three defined models: Core, Classic, and Comfort. Which bending machine suits your requirements best?

Core Model for basic bending

The easy way to get started in the world of bending: The Core model contains the basic configuration of the machine. It is equipped with a 2-axis backgauge and traditional quick clamping that is also suitable for third-party tooling requirements. You can start immediately with the additional standard tool set. It is best for producing simple profile applications in medium and large lot sizes.

Classic Model for universal bending

The Classic model of the TruBend Series 1000 Basic Edition has all the basic functions of the Core model. In addition to the traditional quick clamping, it is also equipped with a 4-axis backgauge. The Classic model allows a wide range of bending operations and is best suited for box bending parts and station bending in medium and large lot sizes.

Comfort Model for versatile bending

The Comfort model of the TruBend Series 1000 Basic Edition includes all the features of the Classic model, as well as offering the full range of TRUMPF functions. With the TRUMPF hydraulic clamping system and basic mechanical crowning, the Comfort model is designed to meet your requirements. The machine is perfect for box bending parts in small and medium lot sizes.

Core model from € 72,120 *

Further details about the Core Model:

Automation: 3D- & 2D-DXF file import for automatic programming, bending sequence optimization, tool suggestion and collision avoidance. A TecZone Bend test license is included.
Compatibility: The traditional clamping system fulfils all tooling requirements and is also suitable for third-party tools.
Safety and customer care: TRUMPF ECO system with BendGuard and remote services ensures safe bending and agile customer service.

Classic model from € 74,520 *

The Classic model offers the following benefits:

Flexible production: The 4-axis backgauge permits the flexible bending of a variety of parts.
Simple programming: The easy to operate Right Angle control from TRUMPF enables easy and fast programming of your machine in the TRUMPF ECO system.
Accuracy: The mechanical wedge crowning compensates for deflection and ensures continuous angular accuracy over the entire bending length.

Comfort model from € 80,400 *

With the Comfort model you additionally benefit from:

Comfort: You receive all the machine functions from a single source.
Speed: You can set up your machine quickly and simply with the hydraulic upper tool clamp.
Optimization: Use the laser-hardened tool set designed for optimized preparation and product changes with your TRUMPF tools.

Technical Data Comparison

TruBend Series 1000 Basic Edition: Technical data

pdf

202 KB

TruBend Series 1000 Basic Edition: Technical data

You can download the technical data for all models to gain insight.

TecZone Bend: Program faster than ever before

The simple solution for programming your bending machine: TecZone Bend is a individual programming solution for TRUMPF bending machines. Program your bending machine online on the user-friendly Right Angle control or comfortably using offline programming in the office, thereby optimizing the utilization of your machine.

But see for yourself: With the test license included with all models, you can use TecZone Bend free of charge for a limited period of time in your own factory.

To the product

Ready to start bending? Request a quote now!

Request a quote for the model of your choice and receive your order.

Request quote

What the TruBend Series 1000 Basic Edition can do

Core, Classic, Comfort: Discover the three TruBend Series 1000 Basic Edition models

Deep Dive: insights into the main functions and machine hardware

Easy to operate: the TRUMPF RA control

Convenient machine setup: switch quickly and easily between tool setup and operation

Precise bending: the bending quality will amaze you

Ready to start bending? Request a quote now!

Request a quote for the model of your choice and receive your order.

Request quote

FAQ

Here you will find general FAQs that may help you. If you have any further questions, please contact us.

Are optional functions available for the TruBend Series 1000 Basic Edition?

The TruBend Series 1000 Basic Edition is only available in pre-configured models. Those configurated models are optimized for customer needs and applications. You can chose between the Core, Classic and Comfort models.

Can I start working with the TruBend Series 1000 Basic Edition immediately after start-up?

Yes, the machine comes with initial equipment with upper and lower tools (1.5 m each). This initial set of tooling is mainly for final acceptance test but also can be used for customer bending applications. Moreover, the machine is supplied full of oil so you can start working with your new TruBend Series 1000 Basic Edition immediately.

Can the TruBend Series 1000 Basic Edition be programmed offline?

Yes, the TruBend Series 1000 Basic Edition can be programmed offline using TecZone Bend. A demo license is provided with the machine that can be used and tested for 12 months from the delivery date.

What type of control is the RA control of the TruBend Series 1000 Basic Edition?

The RA control – Right Angle Control – is our very own, TRUMPF-developed machine control. The RA-control architecture is based on the offline programming system TecZone Bend and added by a very easy to use operator interface (UI).

A traditional tool clamp is available on the Core and Classic models. What kind of tools does this tool clamp work with?

The traditional tool clamp works with tools from other manufacturers, which a lot of customers already work with.

Can the LASERdur tools from TRUMPF be used with the TruBend Series 1000 Basic Edition?

Yes, the proven and high-quality TRUMPF LASERdur bending tools can be clamped to the Comfort model of the TruBend Series 1000 Basic Edition.

Ready to start bending? Request a quote now!

Request a quote for the model of your choice and receive your order.

Request quote

Choose your TruBend Series 1000 Basic Edition now!

Select the machine that suits you best and get the best offer.

Machine details

Your data

Confirmation

Machine details

Select your machine tonnage *

Select your machine package

Additional information

The Core model of the TruBend Series 1000 Basic Edition includes basic equipment and is suitable for simple profile applications in medium and large lot sizes. The RA control enables simple and fast programming in the modern TRUMPF ECO system – based on TRUMPF technology data and assistance systems via MyTRUMPF. The Core model is equipped with a 2-axis backgauge and a traditional tool clamp.

Additional information

The Classic model of the TruBend Series 1000 Basic Edition contains all of the functions of the Core model and is best suited for box bending parts and station bending in medium and large lot sizes. The RA control enables simple and fast programming in the modern TRUMPF ECO system – based on TRUMPF technology data and assistance systems via MyTRUMPF. The Classic model is equipped with a 4-axis backgauge and a double-sided traditional tool clamp for flexible tool set-up.

Additional information

The Comfort model of the TruBend Series 1000 Basic Edition has all of the properties of the Classic model and is best suited for box bending parts and station bending in small and medium lot sizes. The RA control enables simple and fast programming in the modern TRUMPF ECO system – based on TRUMPF technology data and assistance systems via MyTRUMPF. The Comfort model is equipped with a 4-axis backgauge and a TRUMPF tool clamp. The automatic upper tool clamp enables quick tool set-up and easy and fast product changeover.

TRUMPF technology included

The TruLaser Series 1000 Basic Edition is equipped with TRUMPF technology data and integrates into the entire TRUMPF ecosystem: Easy Programming, TruFiber Laser and Remote Services. This makes you part of the worldwide TRUMPF community!

Inclusive

TRUMPF RA control and TecZone Bend test license

The TruBend Series 1000 Basic Edition enables simple and fast number-based and graphic programming. Meaning you can program faster than ever before.

Inclusive

Different clamping systems with initial tool set

Minimize tool setup time with the two easy clamping systems available. A standard tool set of around 1.5 meters is provided for machine acceptance and start of operation.

Inclusive

Pre-filled hydraulic oil

The machine is supplied with high-quality TRUMPF standard oil to ensure the responsiveness and performance of the bending system.

List price*

€

* Prices are F.O.B. Shanghai seaport (excl. taxes, transportation, and customs duties).
