Repair process chain of a joint support

General industry TruLaser Cell Stainless steel Laser welding

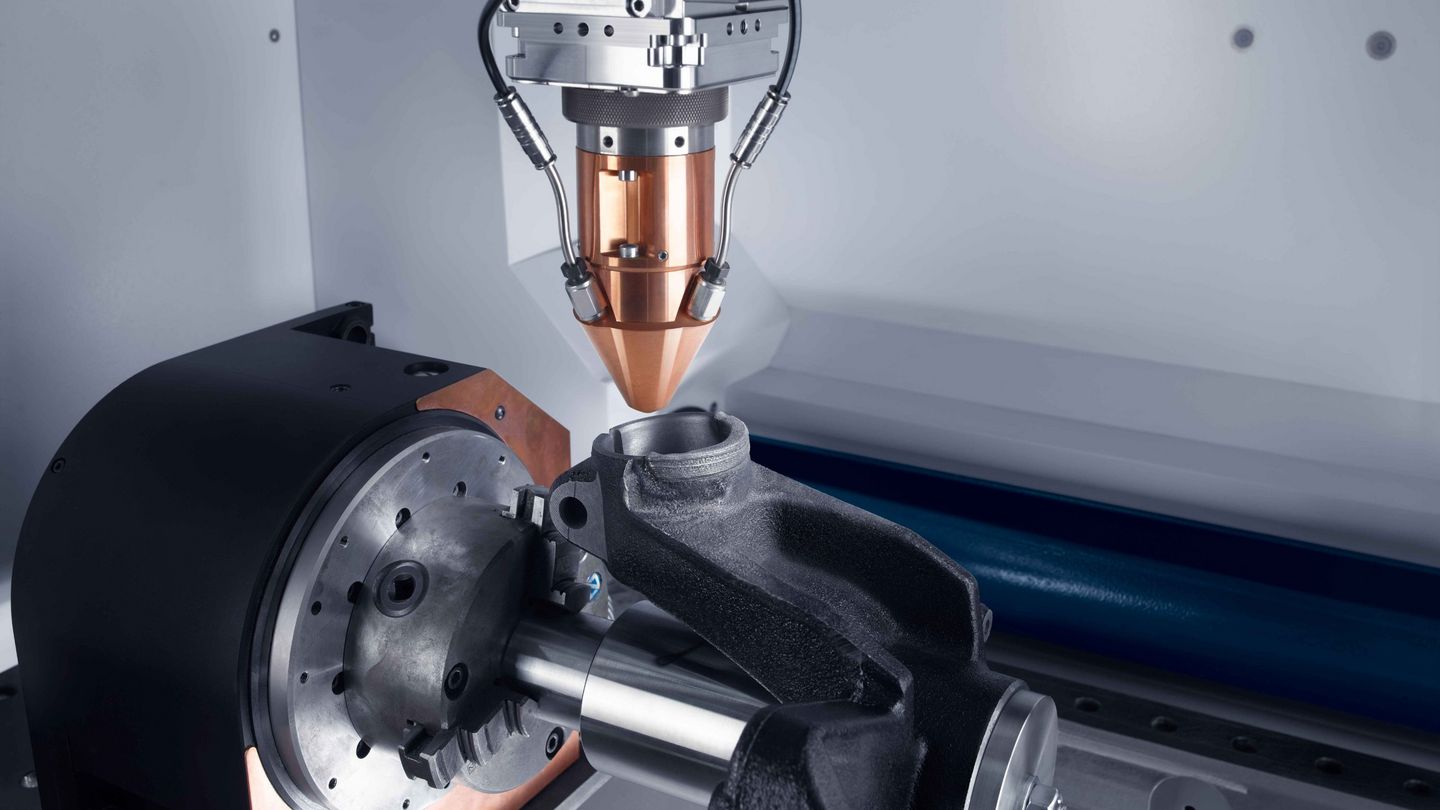

An LMD repair process chain is illustrated using an axle stub as an example. The core element is a TruLaserCell 3000 with a triangulation scanner integrated into the machine. The geometry is detected by the triangulation sensor and the data is imported into offline CAM software. The tool paths are then generated in the CAM software. The LMD process can be simulated in the software and subsequently executed on the machine. The CAM software "Lasertools" from Netvision is used in this example. In principle, this solution can also be implemented with other CAM software solutions, e.g. Siemens NX, MasterCam.

Processing free form faces
Repair process chain
Additive manufacturing for preform modification
Machine-integrated triangulation sensor

Want to additively manufacture a component using powder?

Contact our LMD experts to find out about the excellent potential savings and the major benefits of laser metal deposition with powder. Arrange an individual consultation with us.


Facts & figures about the example part

Material: Steel

Weight: 5 kg (axle stub made of steel)

Process time: 10 min

Number of layers: 15

Created by: LAC

Find out more about the product

TruLaser Cell 3000
TruLaser Cell 3000

The 3D laser machine TruLaser Cell 3000 from TRUMPF can be used for two- and three-dimensional cutting and welding, as well as for additive manufacturing or laser metal deposition (LMD). Highspeed laser metal deposition for rotationally symmetrical components is possible as well. From prototypes to large-scale series production, this multi-talented machine displays its superiority across the board.
