Bending machines

TRUMPF bending machines stand for wide-ranging experience and pioneering innovation. The extensive portfolio includes machines for die bending and panel bending, as well as large-format bending tools and fully automated solutions. There is a wide range of options available for each bending technology to suit your specific application. With TruBend metal bending machines, you can precisely and cost-effectively produce simple or complex parts in any format. You always benefit from excellent part quality, increased flexibility, innovative tools, well-thought-out automation solutions, and intelligent software from a single source. We focus on operability and ergonomics to ensure the machine supports the operator in their work as much as possible.

Die bending

In die bending or edge bending processes, the sheet metal is bent through a controlled downward movement of the press beam. The flat sheet is pressed by an upper tool into a V-shaped lower tool (die) and reshaped in a straight line. The backgauges ensure that the workpiece is positioned accurately.

Panel bending

Panel bending is ideally suited to complex bending applications with radius bends, short sides, or narrow profiles. TRUMPF panel benders contain a bending frame comprised of a C profile onto which the lower and upper bending tool are mounted. When the sheet metal is bent, the C profile moves up or down and performs a small elliptical movement (the swivel).

Manual die bending

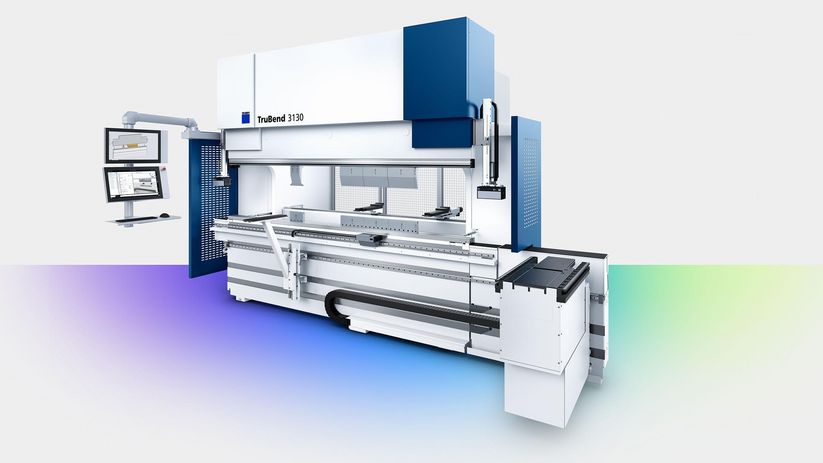

TruBend Series 3000, cost-effective standard machine

TruBend Series 3000

The TruBend Series 3000 brings together the best TRUMPF quality with simple operation and an attractive price-performance ratio. This means you can manufacture economically even in low utilization, and profit from precise results as well as the highest safety standards.

TruBend Series 5000, productive all-around machine

TruBend Series 5000

The TruBend Series 5000 TRUMPF's most successful bending machine worldwide. Using the press brake, your production will be unmatched – from programming, to setup, to the actual bending.

TruBend Series 7000, ergonomic high-speed machine

TruBend Series 7000

The TruBend Series 7000 is a prime example of perfect interaction between man and machine. High speeds and acceleration values on the bending machine in conjunction with optimal work conditions ensure first-rate overall productivity.

TruBend Series 8000, a flexible large-format machine

TruBend Series 8000

The machines in the TruBend Series 8000 impress with their precise versatility, a usable open height of up to 34.5 in., and a press force of up to 1,000 t.

Automated die bending

TruBend Cell 5000, productive universal bending cell

TruBend Cell 5000

Are you searching for productive and flexible automation designed to handle a wide range of parts and ensure consistently high part quality? Then the TruBend Cell 5000 is the ideal solution for you.

TruBend Cell 7000, an innovative high-speed bending cell

TruBend Cell 7000

Bend small parts in a highly dynamic and efficient way using the compact and innovative TruBend Cell 7000 high-speed bending cell.

Semi-automatic panel bending

TruBend Center Series 5000, productive all-around machine

TruBend Center 5030

The TruBend Center 5030 processes sheet metal with outstanding flexibility. Discover what is arguably the widest range of parts in this machinery category with the panel bending technology from TRUMPF. Go far beyond traditional panel bending capabilities, you can even bend complex parts semi-automatically.

Fully automatic panel bending

TruBend Center 7030 – fully automatic and precise panel bending with high flexibility

TruBend Center 7030

The TruBend Center 7030 processes your sheet metal completely automatically. A rotary part manipulator rotates and moves the workpieces while operating at high speed.

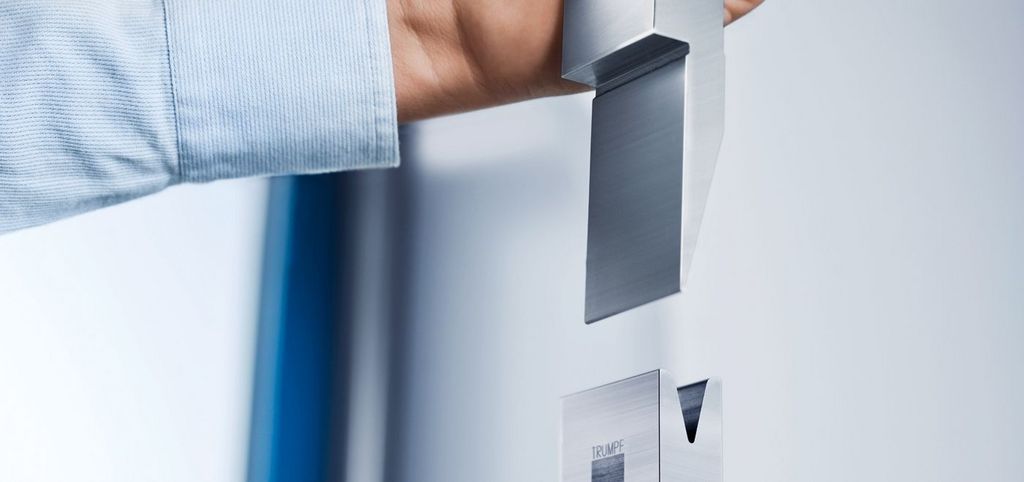

Bending tools
