Laser for marking

The marking lasers from TRUMPF create permanent markings, engravings and labels - precise, high-contrast and gentle on the material. They not only process metals, but also numerous other materials such as plastics, glass, silicon, ceramics and organic substances. Whether high-contrast plastic markings, precise engravings on 3D components, deep engravings or high-resolution black markings - with UV lasers, fiber lasers and ultrashort pulse lasers, TRUMPF offers the right laser technology for every marking application, even for series production.

Find your perfect marking laser now

Use the TruMark product finder to discover which marking laser is best suited to your application!

Start product finder Start product finder

Filter your selection:

0 Product(s)

TruMark 3330

Our UV specialist - precise and gentle for sensitive materials

Average power: 3 W
Wavelength: 355 nm
Peak pulse power: 15 kW
Component geometry: 2D+

The TruMark 3330 uses a short UV wavelength for non-destructive, high-contrast marking of plastics and non-ferrous metals such as copper and aluminum. Excellent beam quality and minimal heat input enable the highest resolutions - ideal for filigree graphics, small QR codes and micro fonts.

To the product

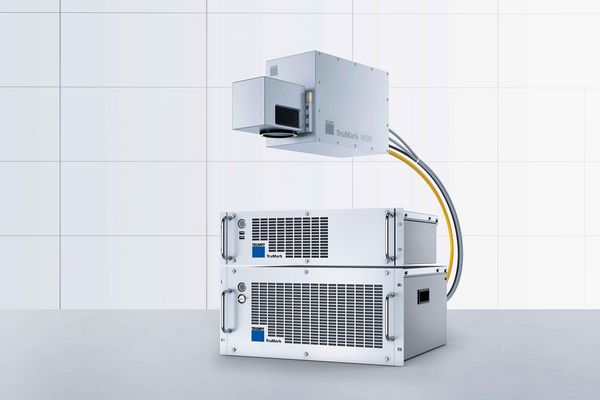

TruMark 6030

Our 3D specialist - for high-end marking and surface processing

Average power: 28 W
Wavelength: 1030 nm
Peak pulse power: 40 kW
Component geometry: 3D

Flawless markings on complex geometries are the specialty of the TruMark 6030. The series covers a wide range of materials: From the finest plastic markings to paint removal on metals - with maximum process stability and 3D capability.

To the product

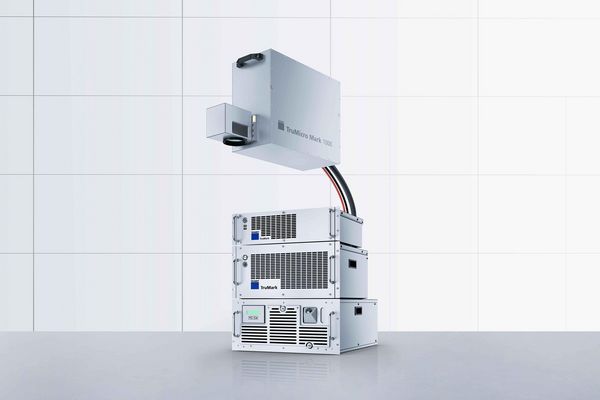

TruMicro Mark

Our ultrashort pulse all-rounder - for cold marking and microprocessing in the high-end branch

Average power: 10 - 20 W
Wavelength: 1030 nm
Pulse peak power: 22 MW
Component geometry: 2D+ and 3D

The TruMicro Mark enables ultra-precise marking, cutting and drilling without thermal effects. Ideal for black marking in medical technology, aerospace or jewelry production - with consistently high quality even on complex free form faces and sensitive materials.

To the product

TruPulse nano

Our flexible nanosecond laser modules - for OEMs who value maximum versatility

20 - 600 W laser power
5 beam qualities from 1.3 - 5.0 M^M
Pulse duration: 3 ns - 2000 ns at up to 4 Mhz
Maximum pulse energy & -frequency: 0.8 - 6 mJ

The TruPulse nano portfolio offers a wide selection of power levels, beam qualities and pulse parameters - individually configurable depending on the application. A wide variety of materials can be precisely marked, cut, engraved or precision-welded using nanosecond pulses. Our TruPulse nano is aimed at integrators who flexibly combine modular components to create a customized solution.

To the product

TruMark fiber laser

Our all-rounders - for marking and surface applications from medium to high performance

Average power: 20 - 200 W
Wavelength: ~ 1030 nm
Peak pulse power: 13 kW
Component geometry: 2D+

The TruMark fiber lasers bundle powerful laser sources for marking, structuring, cleaning, micro-cutting and micro-welding. Whether 2D codes, deep engraving, intricate structures or high-speed machining in series production - you will find the right product configuration for every application here.

To the product
