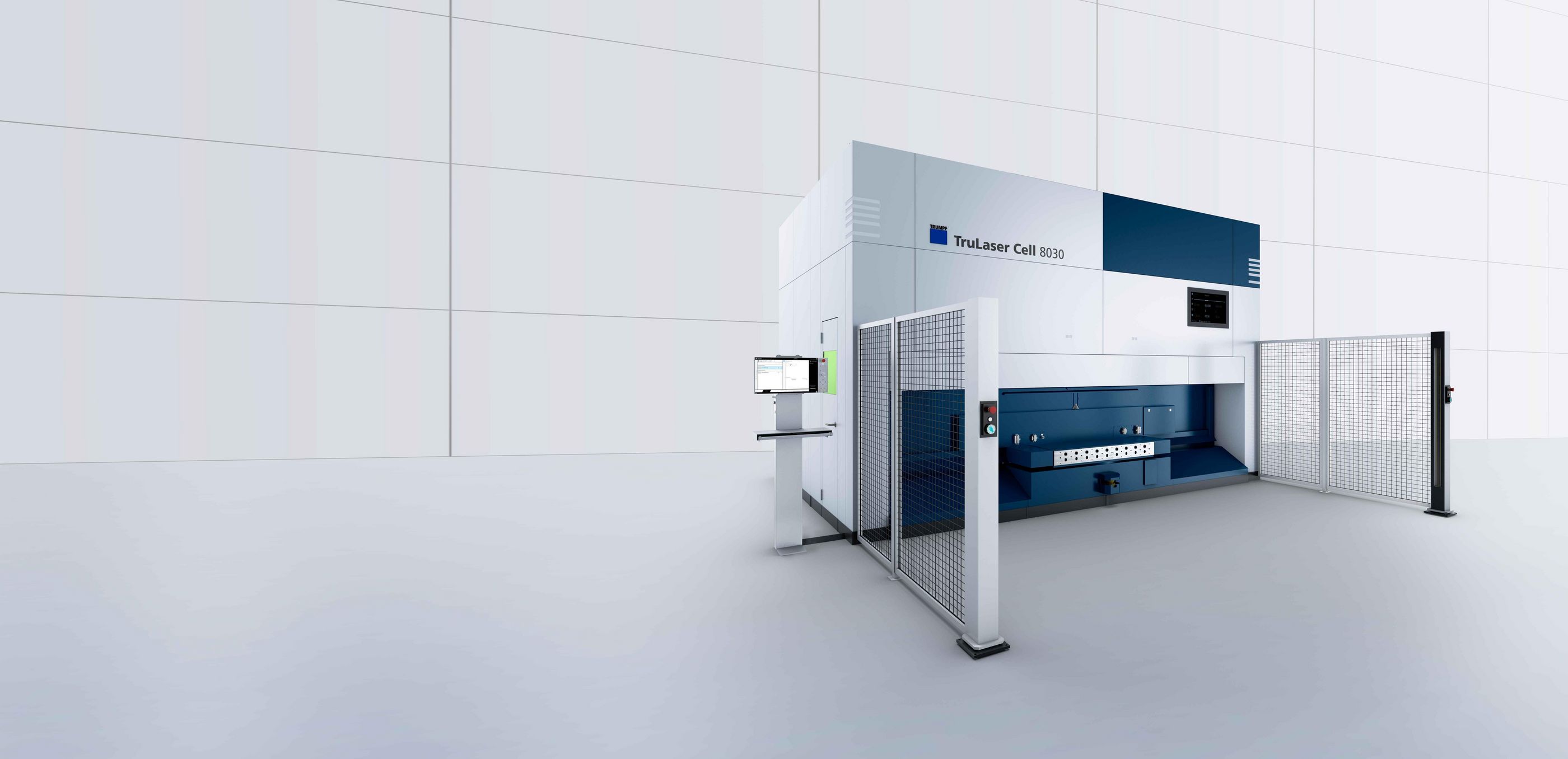

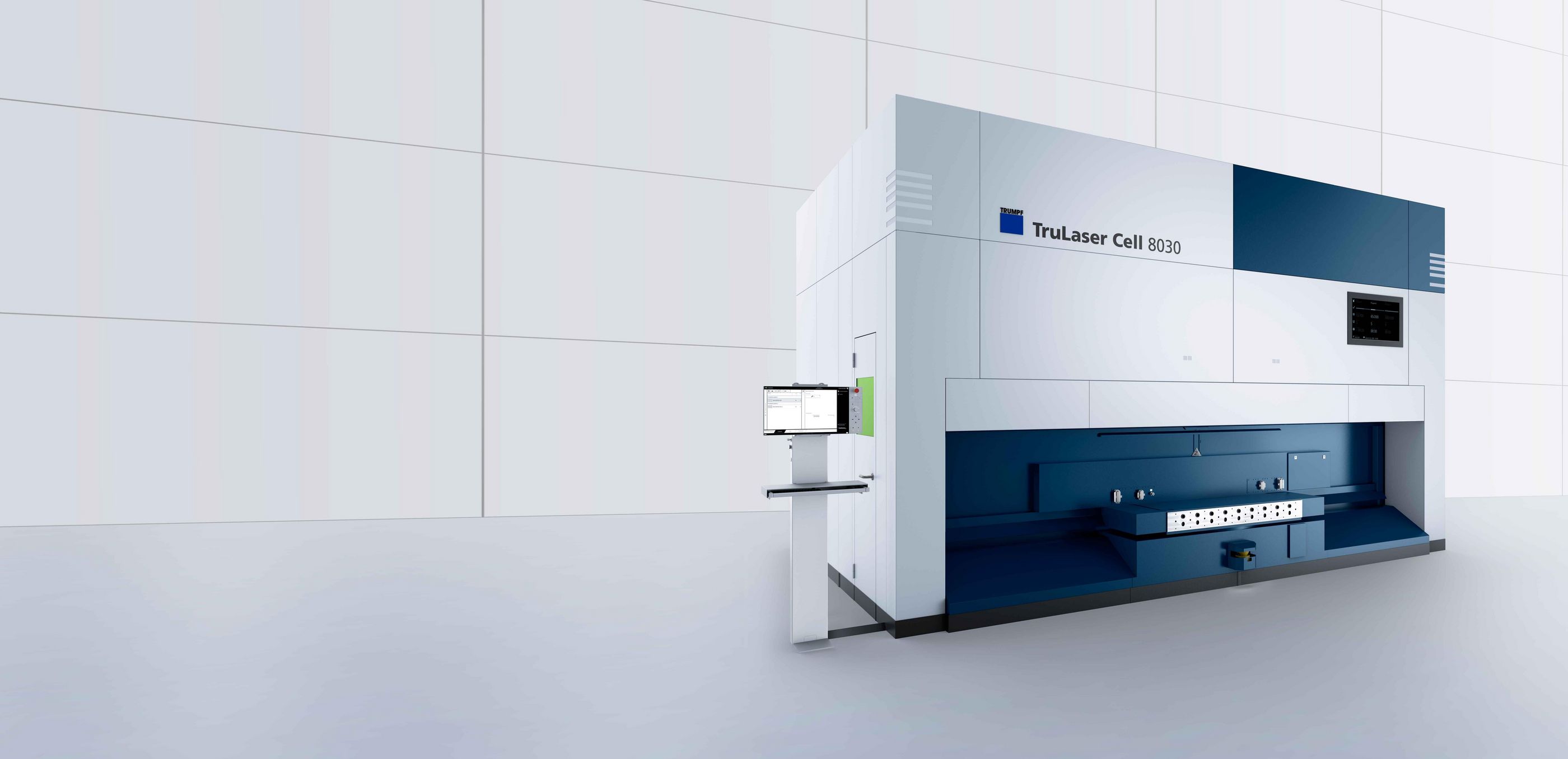

The TruLaser Cell 8030 sets the standard for 3D cutting of hot-formed components and can be configured to your needs with flexibility. This allows you to choose between the large version for cutting door frames and complete side sections or the smaller version for producing single parts and segments of the body in white. As a result of new developments and optimized details, it offers even greater production reliability, combined with arguably the highest productivity on the market. You can increase your profitability due to options such as the Smart Approach, Dynamic Level 3, or the rotary indexing table.
Compared to the previous model, you now benefit from even higher acceleration and Dynamic Level 3.
The optimized rotary table is the fastest on the market. With the rotation time of 1.8 seconds (which is 20% shorter), the overall performance is increased with each component.
Experience gained from the largest installed base design of 3D hot-forming machines has been applied to the new machine.
Optimized production processes due to functions such as X-Blast technology or ObserveLine Comfort & Professional
Combined with the TruDisk 2000, your power consumption and part costs will fall.

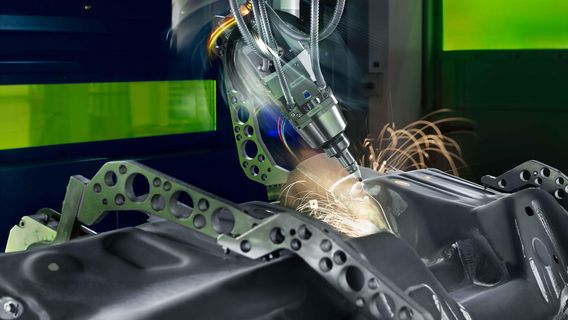

With the TruLaser Cell 8030, you can cut the large dimensions of a hot-formed vehicle side section very quickly and with reliably high quality with the TruDisk laser and X-Blast technology.
Compared to the previous model, the TruLaser Cell 8030 cuts the hot-formed vehicle cross beams with around 10% higher machine dynamics, 10% lower non-productive times, and a 30% quicker punching slug check. The TruDisk laser and the X-Blast technology ensure consistently high cutting quality here.
Mass series parts can be processed particularly cost-effectively on the TruLaser Cell 8030. The NC programming also provides you with maximum flexibility for component geometry.
The TruLaser Cell 8030 reliably cuts 3D components such as B-pillars for cars. The processing of hot-formed components with the laser is more cost-effective than using standard processes. With the flexible laser tool, components can also be easily adapted to new requirements – even at a later time.
TruLaser Cell 8030 (standard version)
|
TruLaser Cell 8030 (large version)
| |
|---|---|---|
| Axis travel range | ||
| Maximum number of axes | 5 | 5 |
| X axis travel range | 3000 mm | 3000 mm |
| Y axis travel range | 1300 mm | 2100 mm |
| Z axis travel range | 600 mm | 650 mm |
| B axis travel range | ± 135 ° | ± 135 ° |
| C axis travel range | n x 360 ° | n x 360 ° |
| Axis travel range of dynamic cutting optics | ± 10 mm | ± 10 mm |
| Maximum workpiece size | ||
| Maximum workpiece size in X | 2540 mm | 2540 mm |
| Maximum workpiece size in Y | 840 mm | 1640 mm |
| Maximum workpiece size in Z | 370 mm | 420 mm |
| Maximum axis speeds | ||
| Maximum axis speed, axially parallel in X | 100 m/min | 100 m/min |
| Maximum axis speed, axially parallel in Y | 100 m/min | 100 m/min |
| Maximum axis speed, axially parallel in Z | 100 m/min | 100 m/min |
| Maximum axis speed, simultaneous | 173 m/min | 173 m/min |
| Maximum axis speed of B axis | 90 1/min | 90 1/min |
| Maximum axis speed of C axis | 90 1/min | 90 1/min |
| Maximum axis accelerations | ||
| Maximum axis acceleration, axially parallel in X | 11 m/s2 | 10 m/s2 |
| Maximum axis acceleration, axially parallel in Y | 11 m/s2 | 10 m/s2 |
| Maximum axis acceleration, axially parallel in Z | 11 m/s2 | 10 m/s2 |
| Maximum axis acceleration, simultaneous | 19.1 m/s2 | 17.3 m/s2 |
| Maximum axis acceleration of B axis | 200 rad/s2 | 200 rad/s2 |
| Maximum axis acceleration of C axis | 100 rad/s2 | 100 rad/s2 |
| Maximum axis acceleration of dynamic cutting optics | 40 m/s2 | 40 m/s2 |
| Positioning accuracy | ||
| Positioning accuracy of linear axes (X, Y, Z) | 0.08 mm | 0.08 mm |
| Positioning accuracy of rotary axes (B) | 0.015 ° | 0.015 ° |
| Laser | ||
| Maximum laser power | 2000 W - 4000 W | 2000 W - 4000 W |
| Rotational changer automation | ||
| Maximum loading per side | 300 kg | 700 kg |
| Work stations | 2 | 2 |
| Typical total non-productive time | 4.2 s | 5.5 s |
| Typical rotation time | 1.8 s | 3 s |
| Diameter of rotary plate | 4000 mm | 5000 mm |
| Working height | 700 mm | 700 mm |
The technical data of all product versions as a download.
TruTops Cell provides you with everything you need for the convenient programming of your 3D laser processing – no matter whether this is the programming of laser cutting, laser welding, or laser metal deposition programs. It loads 3D CAD data via numerous interfaces, and corrects it if required. The system automatically creates cutting suggestions in all three dimensions. It also automatically suggests devices.
The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.
Depending on the application, you can choose from a wide range of TRUMPF CO2 and solid-state lasers and select the perfect one for your application. You then have the option of combining this with the TruLaser Cell 8030.
Improve the dynamics, cost-effectiveness, and productivity of your TruLaser Cell 8030 with numerous innovative options.
Is the process step of manual loading and unloading creating a bottleneck in your production? The rotary indexing table helps by completely separating the loading and unloading areas. Alternatively, you can place a robot on the unloading side as a cost-effective partial automation option. This results in the shortest cycle times with only one employee, and you can produce parts much more productively. If your requirements change over time, you can change this option to a fully automated solution at any time.
There are various reasons why cutting slugs remain in the finished part. With the ObserveLine Comfort optical measuring procedure, you can detect this error quickly since this option checks every contour for a complete cut – all this is carried out twice as fast as comparable systems on the market. ObserveLine Comfort has several advantages compared to measurement using distance regulation. The process reduces the measuring time and you can even measure smaller hole diameters and angled punching slugs.
Minor nozzle collisions can cause minimal incorrect positioning of the cutting optics, invisible to the operator. This results in increased scrap and associated costs. The ObserveLine Professional optical measuring procedure checks the positioning accuracy of the machine at regular, freely definable intervals, without the need for refitting and with virtually no effects on the cycle time. Incorrect positioning is detected and the number of rejects is reduced.
Smart Optics Setup is a fixture attached to the machine base unit which cuts test sheets and readjusts the machine. Implementation is even easier due to standardized macros, saving time and money.
The Smart Approach function optimizes and improves the approach behavior of the machine when the edge of the component is pierced. This patented process reduces cycle time by up to 9%, while ensuring maximum process reliability.
FocusLine enables the program-controlled setting of the focal position depending on the type of material and the material thickness. The position is adjusted using a pressurized mirror, influencing the curvature of its surface.
FastLine improves and optimizes the approach behavior of the machine during piercing for contour cutting. Depending on the type of material and the material thickness, as well as the number of contours to be processed, you can increase the productivity of your system by up to 60%.
You can integrate new devices easily and cost effectively into the machine control via the pneumatic and electrical interface.
TruTops Cell Basic enables you to adjust programs more easily, more quickly, and more reliably directly at the machine. Navigating within the NC program is incredibly simple, as the contour to be changed with the corresponding NC text can be selected by a simple click of the mouse. All changes made are visualized immediately and ensure unprecedented reliability when working in the program.
The Comfort processing time display ensures that you are perfectly informed at all times. It displays the remaining processing time of the component currently being processed, and provides additional information on the current status of the manufacturing job.
Depending on the degree of automation of your production system, you can choose between different interface options. The Basic option reliably provides signals for production planning systems. With the Comfort option, you can implement more simple automation options independently. The Professional option is well-suited for highly automated production.
For all three solutions, you can profit from complete documentation and future upgrades, ensuring your standard software is always kept up to date.
With the MobileControl app from TRUMPF you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. In addition to the static control panel, you have another option for monitoring and controlling your machine.
