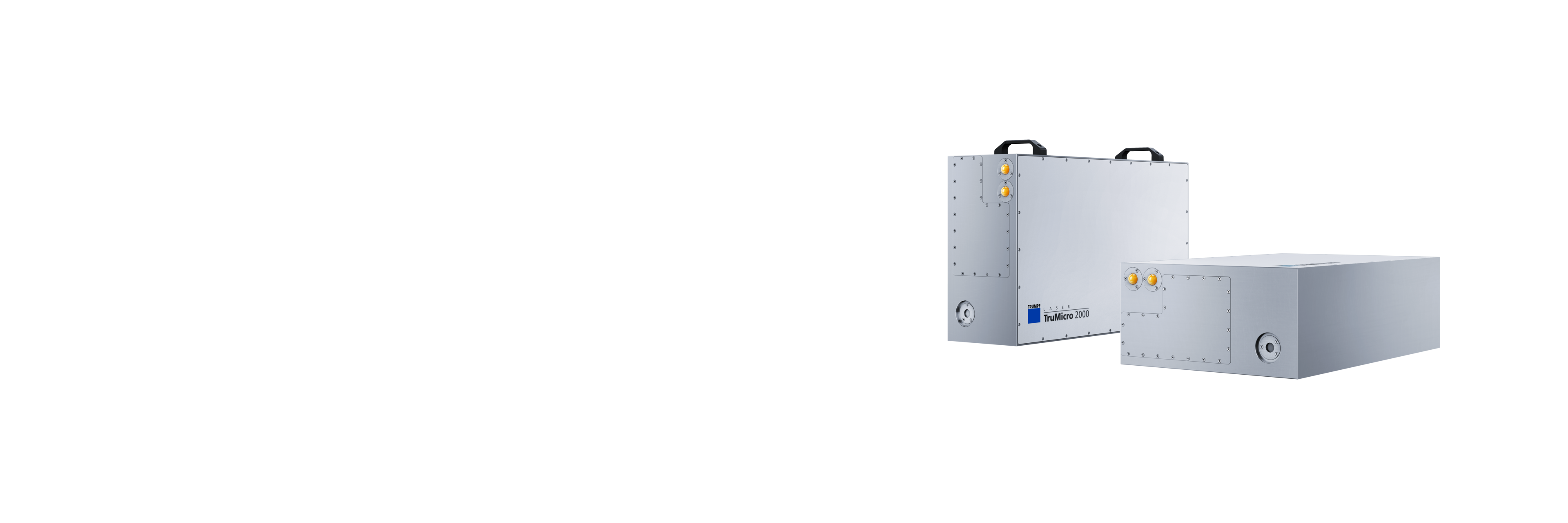

TruMicro Series 2000
Our compact precision machine – delicate microprocessing with maximum flexibility in the process parameters
10 - 20 W
Average power
515 nm, 1030 nm
Wavelength
< 350 fs - 20 ps
Pulse duration
100 µJ at 1 MHz
Max. pulse energy
| Product options TruMicro Series 2000 | Average Power | Beam quality (M²) | Wavelength | Pulse duration | Maximum pulse energy | Pulse repetition frequency |
|---|---|---|---|---|---|---|
|
TruMicro 2030
|
20 W | < 1.2 | 1030 nm | < 350 fs - 20 ps | 100 µJ | 2000 kHz, 50000 kHz QCW mode |
|
TruMicro 2230
|
10 W | < 1.3 | 515 nm | < 350 fs | 40 µJ | 2000 kHz |
What sets the TruMicro Series 2000 apart
– Your special features at a glance
Precise down to the point - thanks to excellent beam quality
Precise down to the point - thanks to excellent beam quality
The excellent beam quality of the TruMicro Series 2000 enables exceptionally small focal diameters for the finest structures and components. At the same time, the high pointing stability keeps the laser beam in a reproducible position, ensuring consistently precise results. The result: clean edges with minimal residue and burrs - perfect for demanding applications, such as in medical technology.
Flexible for any task - with precisely controllable pulse parameters
Flexible for any task - with precisely controllable pulse parameters
You can flexibly adjust the pulse energy, pulse duration, and pulse repetition frequency to suit the material and application. Each individual pulse is energetically stabilized, ensuring reproducible results. With short pulse durations in the femtosecond range, you can keep heat input low; with longer pulses in the picosecond range, you can precisely process the interior of transparent materials, for example. The pulse repetition frequency can also be adjusted during the process - for example, to match the feed rate of the processing optics.
Versatile material effects thanks to flexible operating modes
Versatile material effects thanks to flexible operating modes
Depending on the application, you can determine how the laser emits its pulses: from individual ultrashort pulses to high pulse repetition frequencies in quasi-continuous-wave (QCW) mode. In burst mode, you combine multiple ultrashort pulses into a compact pulse train and precisely control their timing and energy distribution. For example, this allows you to melt surfaces in a controlled manner or ablate material more efficiently. Particularly when working with metals, this opens up additional possibilities to specifically tailor the machining process to the relevant application.
Gentle machining - thanks to ultrashort pulsing
Gentle machining - thanks to ultrashort pulsing
The TruMicro Series 2000 uses ultrashort pulses that deliver their energy into the material in an extremely short amount of time. This results in virtually no heat-affected zone, enabling cold machining without deformations, burn marks, or time-consuming rework. At the same time, each individual pulse removes material in a targeted manner without energy accumulating in the component. This allows you to control material removal with precision and achieve consistently reproducible results. This method allows even strongly reflective materials, such as copper or transparent materials, to be processed reliably.
Clean along every contour with an adjusted pulse repetition frequency
Clean along every contour with an adjusted pulse repetition frequency
With Advanced Pulse on Demand, the TruMicro Series 2000 triggers each laser pulse exactly when it is needed. This function keeps the pulse interval constant even when the feed rate changes - for example, in curves where the laser beam is guided more slowly. This prevents pulses from overlapping and allows them to be precisely placed along the desired contour with a spatial resolution down to the submicrometer range. This also ensures consistent, reproducible results even for short, complex contours with frequent changes in speed and direction -such as extremely fine recesses like display notches.
Further advantages
-
Easy integration without complex beam guidance
With the optional hollow-core fiber, you can easily integrate the lasers into any modular system - either in a vertical or horizontal position. To do so, you do not need granite blocks for stabilization or mirrors for beam guidance. Sensors in the hollow-core fiber detect deviations and can stop the laser. This enhances the safety of your system. -
Available at short notice - worldwide
High production capacities ensure that the TruMicro Series 2000 is available worldwide at short notice. This allows you to flexibly plan the expansion of existing machines or the installation of new machines. If needed, the global TRUMPF service team is available to assist you around the clock.
One system. Everything from TRUMPF.
– Discover available components and services for this laser
A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.
Services for maximum system availability
to keep your production runningOverview
How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.
Condition Monitoring for lasers and laser systems
With Condition Monitoring, our experts - supported by TRUMPF's own algorithms - keep a constant eye on the condition of your lasers. Critical changes are detected at an early stage before unplanned downtime occurs.
Technical Service
No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.
Remote Support
In the event of a fault, every minute counts: With TRUMPF Remote Support, you receive immediate help from our experts - via secure remote access, without having to travel or wait for a service technician.
Genuine Parts
Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.
Service Agreements
As much service as you need: Our Service Agreements offer graduated service packages - tailored precisely to your needs and at fixed, predictable costs. From Remote Support and maintenance to full service packages.
Services for performance optimization
so that performance becomes best performanceOverview
Do you want to get more out of your production? Unclear data, complex requirements or unexpected errors often slow down production. Our solutions help you to overcome these hurdles - with structured data management, individual application support and training or AI-supported process optimization. This allows you to improve your processes, reduce errors and react more flexibly to new challenges.
Smart View for lasers and laser systems
Keep an eye on all relevant data: With Smart View, you can create individual dashboards with precisely the information and key figures that are crucial for the optimal use of your lasers and laser systems - from performance data to statuses and energy consumption through to program changes.
Advice in our application centers
In our laser application centers at eight locations worldwide, we work with you to optimize processes, solve application-specific challenges - and thus create the basis for consistent quality, shorter start-up phases and a faster time to market.
A comparison of our TruMicro range
| Product |
TruMicro Series 2000Our compact precision machine – delicate microprocessing with maximum flexibility in the process parameters |
TruMicro Series 6000Our femtosecond powerhouse - for maximum throughput and high removal rates in series production |
TruMicro Series 9000Our pioneer - groundbreaking microprocessing of large surfaces with 1 kW power |
|---|---|---|---|
| Average power | 10 W - 20 W | 30 W - 200 W | 1000 W |
| Wavelength | 515 nm, 1030 nm | 343 nm, 515 nm, 1030 nm | 1030 nm |
| Beam quality (M²) | < 1.2 (<1.3 bei 515 nm) | < 1.3 (optional ≤ 1.2) | < 1.3 |
| Pulse duration | < 350 fs (1030 nm, variably adjustable up to 20 ps) | < 850 fs (optional < 5 ps at 1030 nm and < 500 fs at 343 nm) | 1 ps (optional fixed value between 1 and 20 ps) |
| Maximum pulse energy | 100 µJ with 200 kHz | 2 mJ with 100 kHz | 10 mJ with 100 kHz |
| Pulse repetition frequency | Single shot up to 2 MHz (50 MHz with QCW option) | Single shot up to 3 MHz (50 MHz with QCW option) | Single shot up to 1 MHz (50 MHz with QCW option) |
