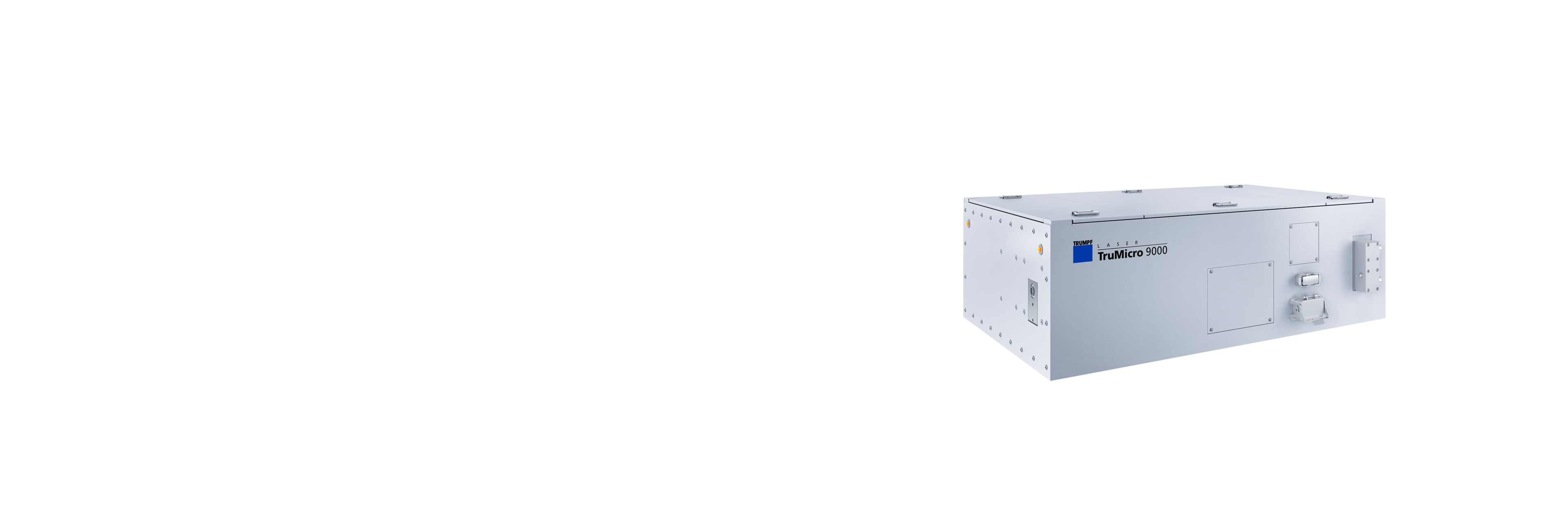

TruMicro Series 9000

Our pioneer - groundbreaking microprocessing of large surfaces with 1 kW power

1000 W Average power

1030 nm Wavelength

1 - 20 ps Pulse duration

10 mJ at 100 kHz Max. pulse energy

Product options TruMicro Series 9000	Average Power	Beam quality (M²)	Wavelength	Pulse duration	Maximum pulse energy
TruMicro 9010	1000 W	< 1.3	1030 nm	< 1 ps	10 mJ bei 100 kHz

Large-scale microprocessing

– with 1 kW laser power

The TruMicro Series 9000 achieves 1 kilowatt of laser power - a world first in the ultrashort pulse range. Combined with the high pulse repetition frequency, this enables microprocessing over large areas. Using appropriate scanners, you can distribute the pulsing across the component at speeds of up to one kilometer per second, thus converting the high pulse repetition frequency into correspondingly high processing speeds. Alternatively, the high laser power can be distributed across multiple processing areas using beam splitters or beam-shaping elements. This enables you to scale processes such as structuring, cleaning, removal, or cutting cost-effectively down to the square-meter range.

What sets the TruMicro Series 9000 apart

– Your special features at a glance

Micro-finishing large surfaces - up to the square-meter range

With a laser power of 1 kW. that is unmatched anywhere in the world in the ultra-short-pulse range, you can process workpieces at speeds never before achieved. This makes microprocessing cost-effective even on large surfaces - up to the square-meter range. This enables you to increase throughput in your manufacturing process and make microprocessing a viable option even for applications where it was previously out of the question.

Different processes using a single laser source

The TruMicro Series 9000 offers both pulse energies of up to 10 millijoules and high pulse repetition frequencies. This allows you to use a single laser source to handle different process steps within the same system: high pulse repetition frequencies for fast processes and high pulse energies for applications requiring high energy, such as those involving brittle, hard materials. This means you do not need multiple laser sources for different applications.

Perfect for high-speed production lines, including roll-to-roll processes

Because they achieve high processing speeds, the TruMicro Series 9000 lasers are perfect for roll-to-roll processes in which large-area substrate materials, such as plastic and metal films, or thin glass, are continuously unrolled, processed, and rewound.

Consistent results - even during continuous industrial operation

With the TruMicro Series 9000, you can achieve consistent results even under demanding production conditions. The high beam quality of M² = 1.2 ensures uniform energy input and stable pulsing for reproducible processes. You can rely on the laser even during continuous operation: electronics, amplification, and beam guidance are based on proven modules from the TRUMPF ultrashort pulse laser series.

Clean along every contour with an adjusted pulse repetition frequency

With Advanced Pulse on Demand, the TruMicro Series 9000 triggers each laser pulse exactly when it is needed. This function keeps the pulse interval constant even when the feed rate changes - for example, in curves where the laser beam is guided more slowly. This prevents pulses from overlapping and allows them to be precisely placed along the desired contour with a spatial resolution down to the submicrometer range. This also ensures consistent, reproducible results even for short, complex contours with frequent changes in speed and direction -such as extremely fine recesses like display notches.

Further advantages

Safe and reliable with PLe
The lasers in the TruMicro Series 9000 meet the highest safety Performance Level e (PLe). Redundant safety systems and fast error detection increase your safety in production - without additional measures on the laser.

The TruMicro Series 9000 in action

– What you can expect

The TruMicro Series 9000 delivers high precision and speed for demanding cutting, micro-processing, and surface treatment applications - even on large areas and in 24/7 industrial operations. This makes it suitable, for example, for the manufacture of semiconductors, batteries, and fuel cells, as well as for applications in the air and space industry.

Quickly process films, wafers, and displays

The processing speed is a key factor in determining cost-effectiveness for large-area materials such as films, wafers, paper, fabrics, or displays. Especially when working with large surfaces, the laser must operate quickly enough to achieve the required throughput.

With the high power of the TruMicro Series 9000, you can scale microprocessing to achieve high processing speeds and cover large areas. This makes even those processes cost-effective where microfine machining has not been economically viable until now.

High-speed micro-drilling

You need to create a large number of extremely fine holes or structures over large areas and under tight deadlines - for example, for fine-pored filters in the food industry or for microstructures on batteries.

With a pulse repetition frequency and scanning speeds of 50 meters per second, the lasers in the TruMicro Series 9000 create microstructures at a speed unmatched in the market. For a particularly large number of holes, the laser beam can also be split using appropriate optics. This enables you to drill hundreds of small holes at once.

Selectively ablating layers

If you want to ablate contaminants and particles from bipolar plates for fuel cells layer-by-layer and at high-speed without time-consuming mechanical or chemical processes.

With the high pulse energy of the TruMicro Series 9000, you can remove approximately 40 square centimeters per second, significantly reducing the process time.

Targeted functionalization of surfaces

They must precisely structure, engrave, or clean surfaces made of various materials - such as glass, copper, gold, and ceramics -and specifically impart certain functions to them, such as an anti-glare effect.

With the ultra-short pulses of the TruMicro Series 9000, you can precisely modify surfaces and give them the desired properties. The combination of high pulse energy and energy stability makes it possible, for example, to distribute the energy over a larger area using beam-shaping elements. This allows you to achieve high processing speeds even when machining large surfaces.

Generation of secondary radiation

You want to generate particles (ranging from relativistic electrons to neutrons) or short-wavelength electromagnetic radiation (ranging from deep UV to coherent hard X-ray radiation) for imaging applications, for example. At the same time, you need shorter irradiation times to achieve high throughput, as well as processes that are reproducible and stable over the long term - even during 24/7 continuous operation.

The TruMicro Series 9000 combines high pulse energy with ultrashort pulsing, thus achieving high peak intensities. This allows you to efficiently convert frequencies or generate various types of laser-plasma-induced secondary radiation. As the first ultrashort pulse laser with industrial suitability in the kilowatt power class, the TruMicro Series 9000 enables a correspondingly high throughput at the same time.

One system. Everything from TRUMPF.

– Discover available components and services for this laser

A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.

A conversation with TRUMPF service engineers

Services for maximum system availability

to keep your production running

Overview

How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.

Condition Monitoring for lasers and laser systems

With Condition Monitoring, our experts - supported by TRUMPF's own algorithms - keep a constant eye on the condition of your lasers. Critical changes are detected at an early stage before unplanned downtime occurs.

Condition Monitoring, Servicetechniker repariert Maschine

Technical Service

No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.

Remote Support

In the event of a fault, every minute counts: With TRUMPF Remote Support, you receive immediate help from our experts - via secure remote access, without having to travel or wait for a service technician.

Genuine Parts

Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.

Service Agreements

As much service as you need: Our Service Agreements offer graduated service packages - tailored precisely to your needs and at fixed, predictable costs. From Remote Support and maintenance to full service packages.

Services for performance optimization

so that performance becomes best performance

Overview

Do you want to get more out of your production? Unclear data, complex requirements or unexpected errors often slow down production. Our solutions help you to overcome these hurdles - with structured data management, individual application support and training or AI-supported process optimization. This allows you to improve your processes, reduce errors and react more flexibly to new challenges.

Advice in our application centers

In our laser application centers at eight locations worldwide, we work with you to optimize processes, solve application-specific challenges - and thus create the basis for consistent quality, shorter start-up phases and a faster time to market.

Is the laser suitable for your project?
Let us find out!

In our laser application centers (LAC), we work with you to determine the optimum parameters for your application - even directly on your component.

Inquire now

Questions? Ideas? Concrete plans?
We can help you!

Whether technical details, prices or individual requirements: Whatever your concerns - we will give you the answer that will help you move forward.

Downloads

Short and ultrashort pulse laser brochure

An overview of all TruMicro short and ultrashort pulse lasers from TRUMPF.

Flyer TruMicro 9010

A comparison of our TruMicro range

Product	TruMicro Series 9000 Our pioneer - groundbreaking microprocessing of large surfaces with 1 kW power	TruMicro Series 6000 Our femtosecond powerhouse - for maximum throughput and high removal rates in series production	TruMicro Series 2000 Our compact precision machine – delicate microprocessing with maximum flexibility in the process parameters
	Request quote	To the product	To the product
Average power	1000 W	30 W - 200 W	10 W - 20 W
Wavelength	1030 nm	343 nm, 515 nm, 1030 nm	515 nm, 1030 nm
Beam quality (M²)	< 1.3	< 1.3 (optional ≤ 1.2)	< 1.2 (<1.3 bei 515 nm)
Pulse duration	1 ps (optional fixed value between 1 and 20 ps)	< 850 fs (optional < 5 ps at 1030 nm and < 500 fs at 343 nm)	< 350 fs (1030 nm, variably adjustable up to 20 ps)
Maximum pulse energy	10 mJ with 100 kHz	2 mJ with 100 kHz	100 µJ with 200 kHz
Pulse repetition frequency	Single shot up to 1 MHz (50 MHz with QCW option)	Single shot up to 3 MHz (50 MHz with QCW option)	Single shot up to 2 MHz (50 MHz with QCW option)

^{This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.}
