    Flexible automation

    The automation solution, LiftMaster, covers a broad range of functions because of the variety of setup options. These range from simple loading and unloading processes to pallet handling and part removal. The basic module is the suction frame. It contains both suction cups, for the transportation of the unprocessed sheet, and rake arms for conveying cut sheets. With the integrated sorting function, the LiftMaster can also separate finished parts from the scrap skeleton and set them down.

    Low-scratch sheet removal

    The LiftMaster offers low-scratch part handling.

    Many setup options

    The swivel arm of the LiftMaster automatically adjusts to the circumstances of your application.

    Production around the clock

    Even without supervision, the LiftMaster will run 24/7 without compromising process reliability.

    Fast process cycles

    For a complete loading and unloading cycle, including pallet change, the LiftMaster requires just four minutes.

    LiftMaster and LiftMaster Sort – flexible loading and unloading
    LiftMaster oversize format
    LiftMaster large format
    LiftMaster max format
    Load
    Max. sheet format 4000 mm x 2500 mm 3000 mm x 1500 mm 4000 mm x 2000 mm
    Min. sheet format 1000 mm x 1000 mm 1000 mm x 1000 mm 1000 mm x 1000 mm
    Max. sheet thickness 20 mm 25 mm 25 mm
    Max. sheet weight 1600 kg 900 kg 1600 kg
    Unload
    Max. sheet format 4000 mm x 2500 mm 3000 mm x 1500 mm 4000 mm x 2000 mm
    Min. sheet format 150 mm x 150 mm 150 mm x 150 mm 150 mm x 150 mm
    Max. sheet thickness 12 mm 25 mm 25 mm
    Max. sheet weight 1260 kg 900 kg 1260 kg
    Min. part size 150 mm x 150 mm 150 mm x 150 mm 150 mm x 150 mm
    PDF <1MB
    Technical data sheet

    The technical data of all product versions as a download.

    Introduction to the LiftMaster storage connection

    TruStore Series 1000
    TruStore Series 1000

    Practical compact store

    TruStore Series 3000
    TruStore Series 3000

    The most flexible storage

    LiftMaster Sort
    Sorting function

    With the LiftMaster Sort you can separate large parts from the scrap skeleton.

    LiftMaster, belt prongs
    Belt prongs

    So-called belt prongs enable low-scratch part unloading with high positioning accuracy

    LiftMaster, auxiliary pallets
    Auxiliary pallet operation

    Auxiliary pallets assist the loading and unloading process. The LiftMaster automatically takes care of their handling.

    LiftMaster Linear, suction frame
    Suction frame/unloading rake

    The unloading rake takes the finished, processed sheet from the pallet changer and places it in the unloading area. The suction frame is fitted with individually controllable suction cups that pick up the unprocessed sheets from the loading area and place them on the pallet changer

    LoadMaster, Bleche prozesssicher vereinzeln
    Thin sheet separation

    With the thin sheet separation option, you can even separate film-coated or oily sheets with a thickness between 0.03 and 0.08 inches.

    TruLaser 3030 with LiftMaster, PartMaster, and TruStore 3030

    TruLaser 3030 with LiftMaster, PartMaster, and TruStore 3030

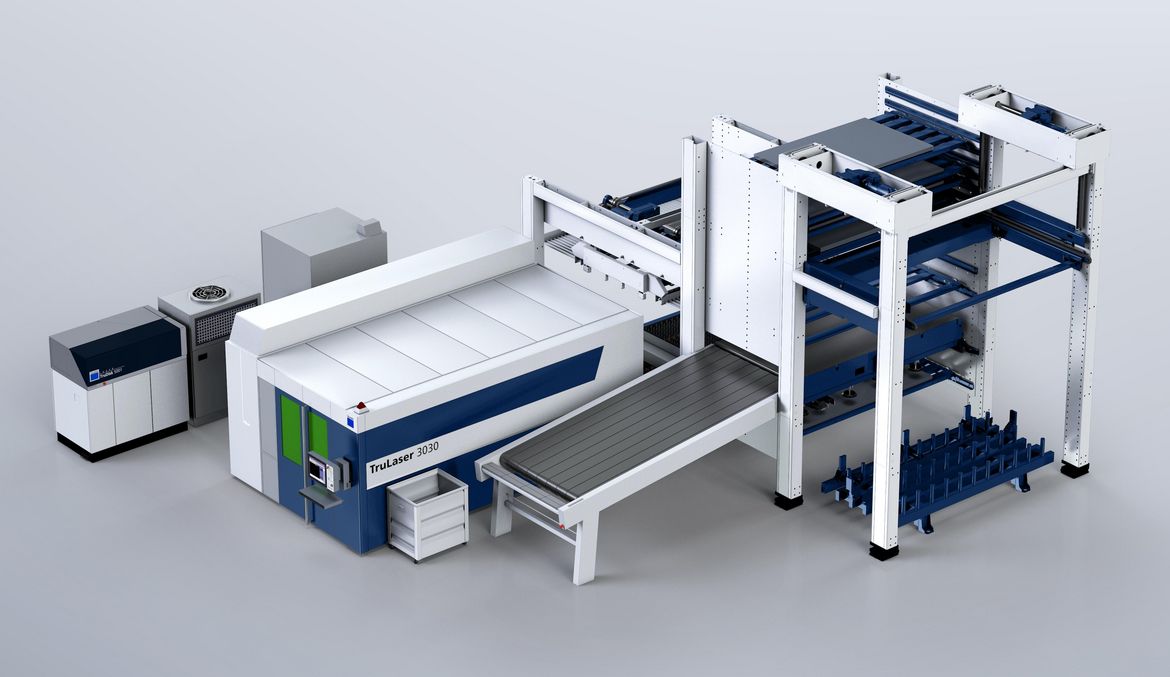

    The LiftMaster connects a TruLaser 3030 indirectly with a TruStore 3030

    The LiftMaster connects a TruLaser 3030 indirectly with a TruStore 3030

    TruLaser 3030 with LiftMaster

    TruLaser 3030 with LiftMaster
