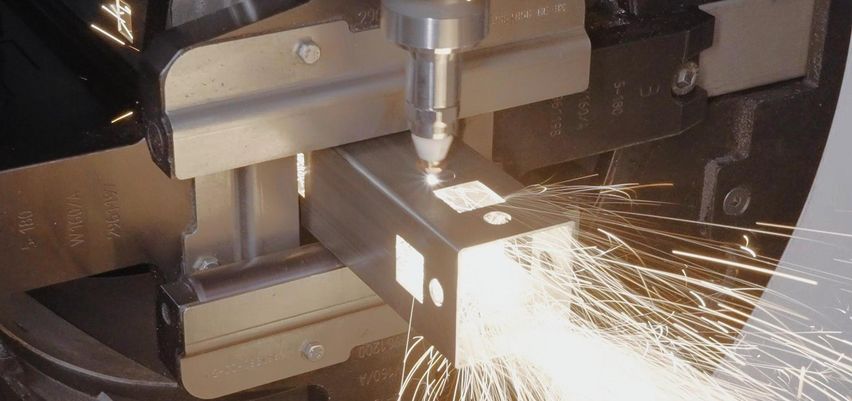

High-quality bevel cuts

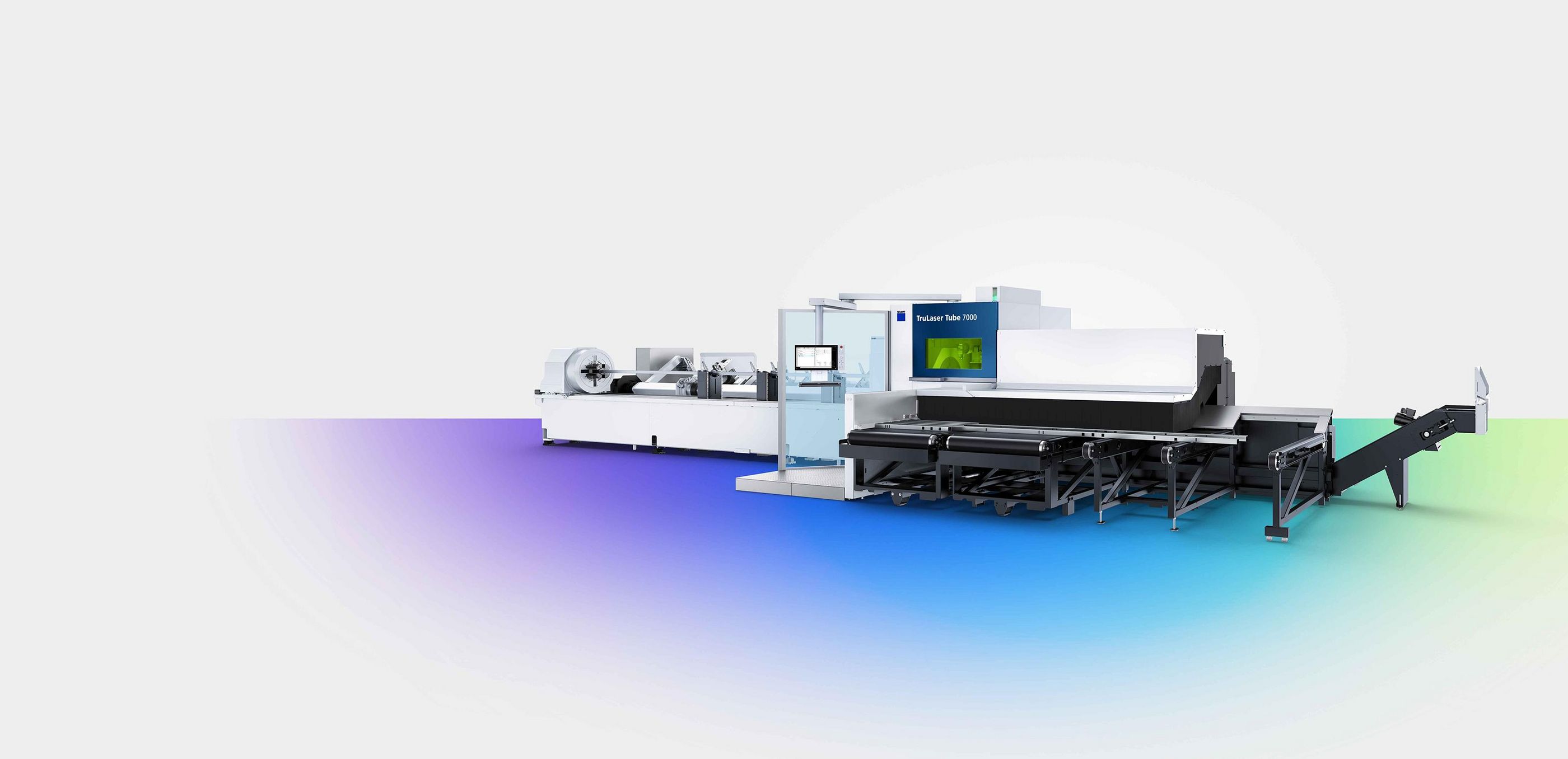

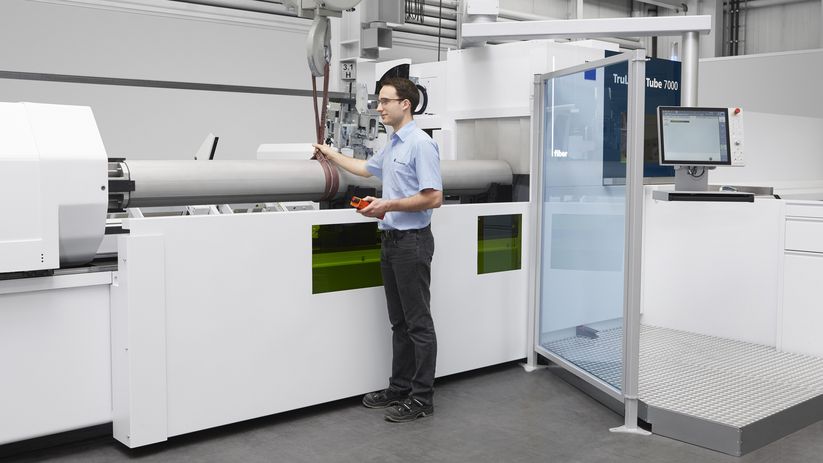

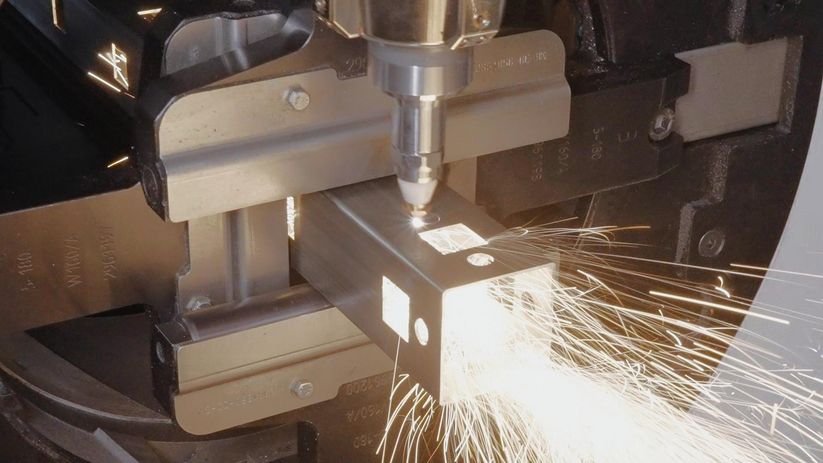

TruLaser Tube 7000 with bevel cut

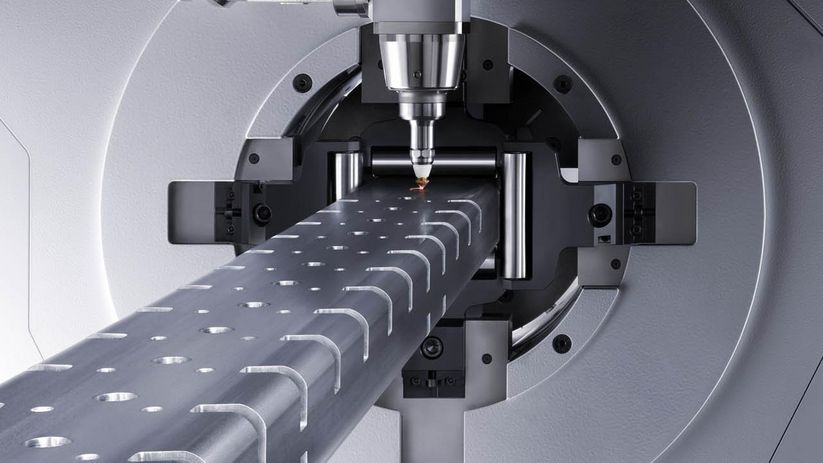

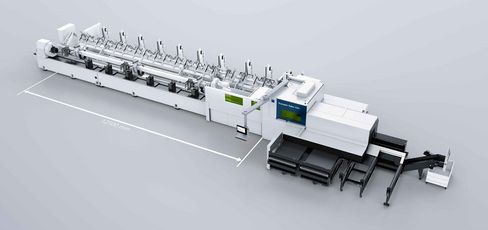

XXL laser tube cutting
With this flexible high-end machine, you can cover a broad range of parts and open up new areas of application for laser tube cutting. The machine cuts tubes and profiles with a diameter of up to 10 in. and wall thicknesses of up to 0.4 in. in mild steel.
Diameter of up to 10 in.
Process parts with a diameter of up to 10 in. and wall thicknesses of up to 0.4 in. for mild steel.
Integration of subsequent processes
The TruLaser Tube 7000 can handle additional optional process steps, such as tapping threads.
Removal of sorted finished parts
The part-removal station sorts your finished parts onto movable conveyor tables, into wire mesh boxes, or into containers.
High-quality bevel cuts
The bevel cutting option enables high-quality bevel cuts of up to 45°.
Excellent process reliability
The state-of-the-art sensor systems ensure your entire machining process runs smoothly.
Reliable, good cutting result
The TruFlow Series CO2 laser and high-quality cutting data produce the best possible results for every cut.

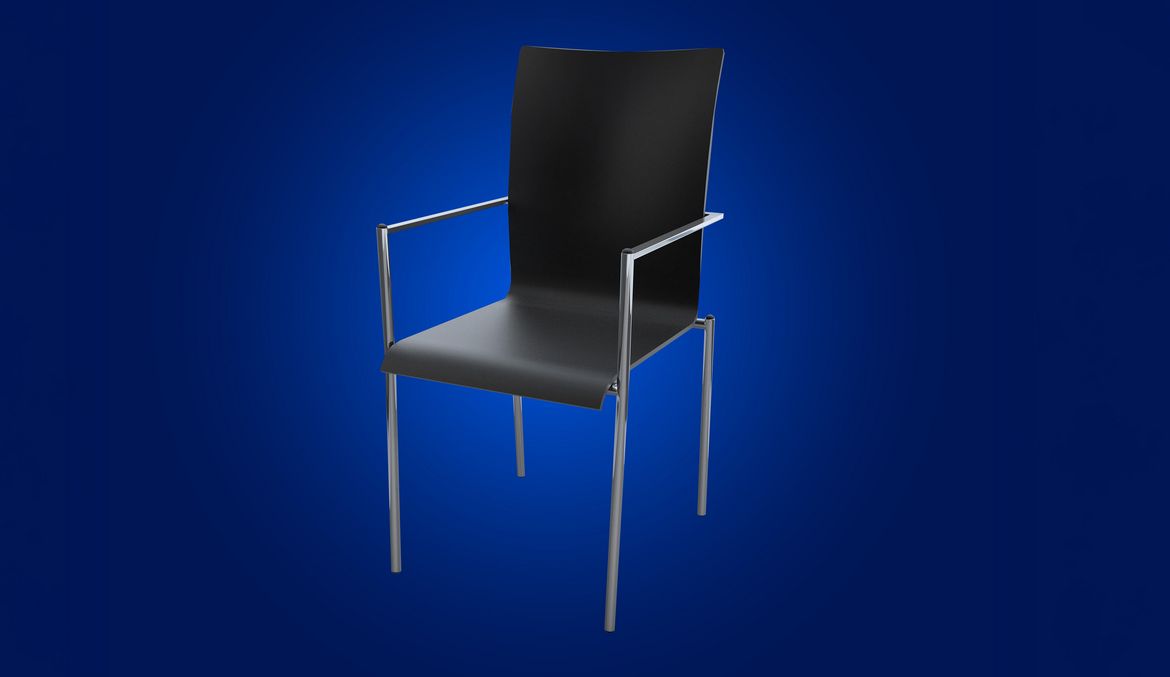

Furniture
More options for designers: the TruLaser Tube 7000 cuts tubes and profiles with great precision, making it possible to produce products of the highest quality and value.
Shop fitting
Regardless of whether for single-unit or series production, the laser tube cutting guarantees maximum flexibility for the design of shop furniture.

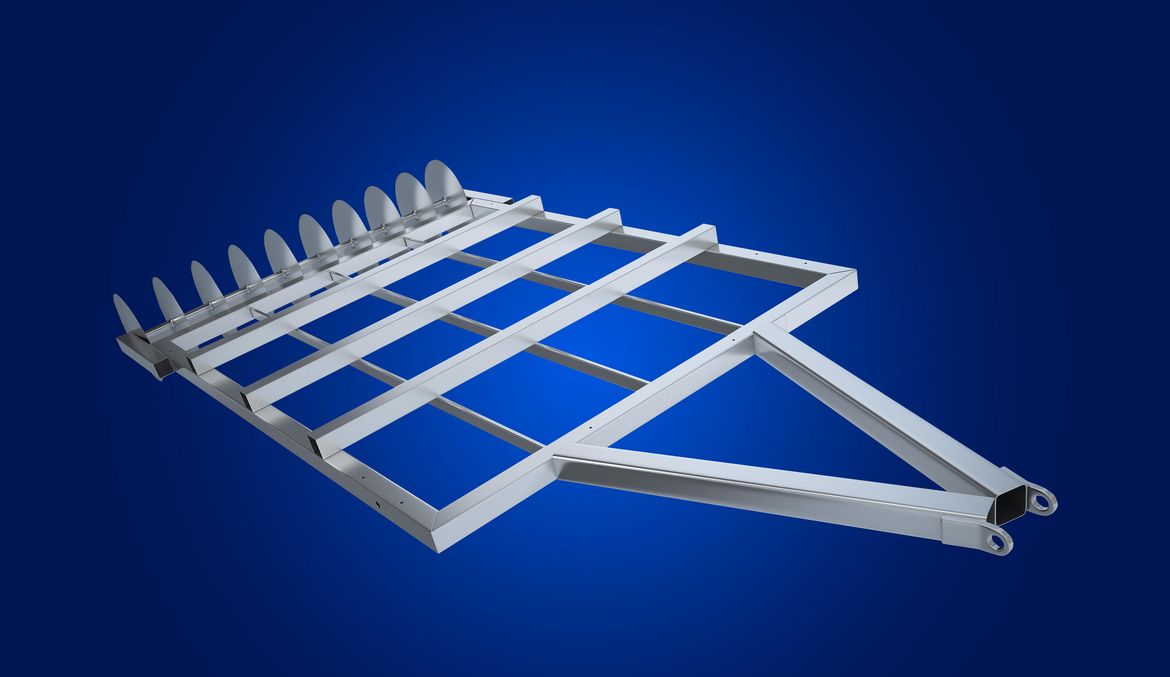

Agricultural machinery
The TruLaser Tube 7000 fiber can process tubes with very thick walls. This is a great advantage for manufacturers of components for agricultural machinery, for example.

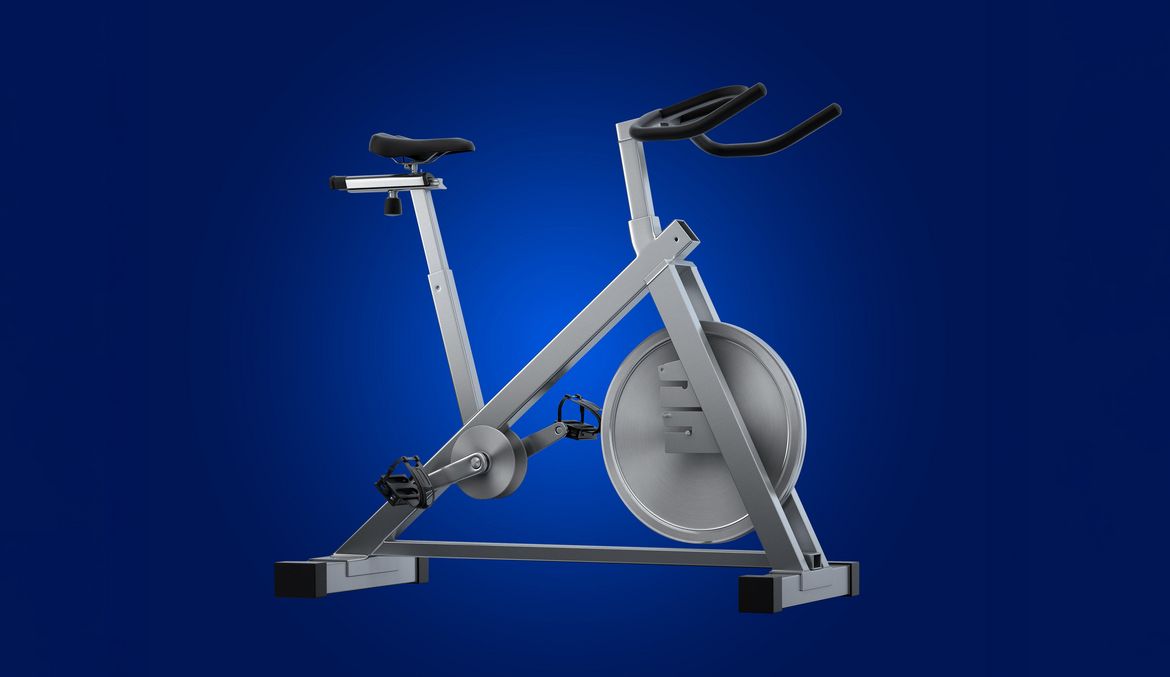

Fitness equipment
The automation solutions of the TruLaser Tube 7000 enable efficient production of high-quality components such as fitness equipment in series production. The laser provides long-lasting precision for tube processing.

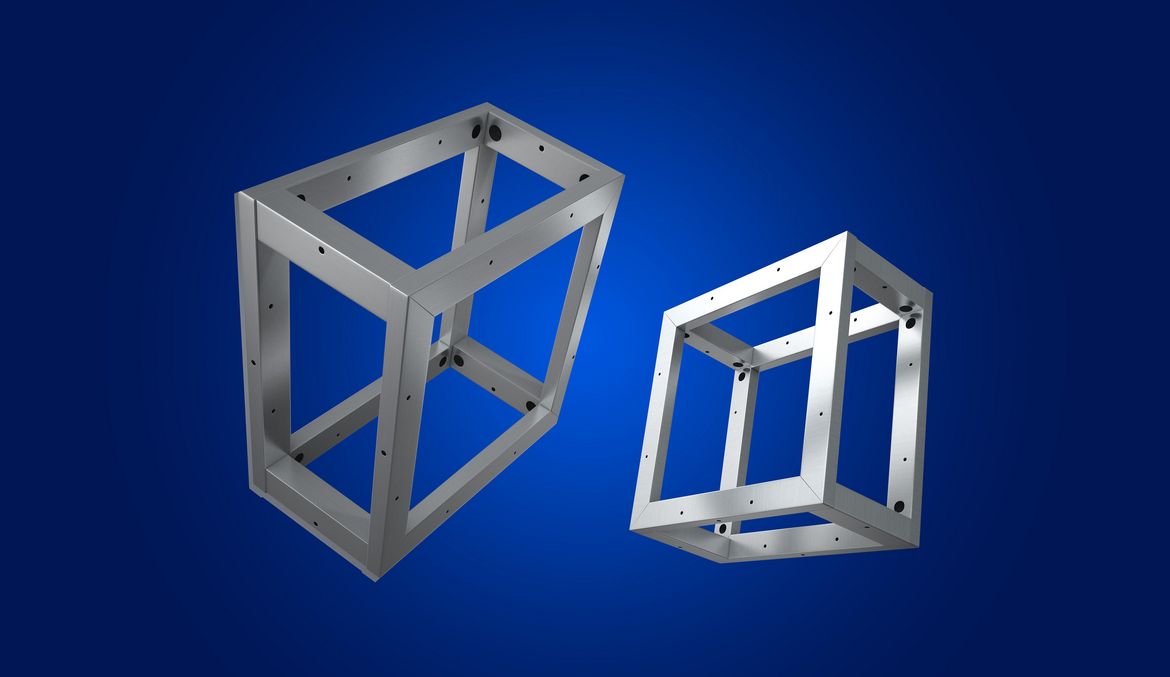

Mechanical and apparatus engineering
The possibilities offered by laser tube cutting technology mean that mechanical engineers can replace or optimize sheet metal designs. To do this, designers are finding intelligent ways to combine tube and sheet metal construction techniques.
|
TruLaser Tube 7000
|
|
|---|---|
| Round tube | |
| Max. Außendurchmesser | 204 mm |
| Max. Außendurchmesser (optional) | 254 mm |
| Rectangular profile | |
| Max. side length and outer circle diameter | 180 mm / 204 mm |
| Max. Seitenlänge und Hüllkreisdurchmesser (optional) | 220 mm / 254 mm |
| Max. Rohmateriallänge für automatisches Beladen | |
| bei LoadMaster Tube 6,5 m | 6500 mm |
| bei LoadMaster Tube 9,2 m | 9200 mm 1 |
| Finished part length | |
| for unloading unit 3 m | 3000 mm |
| for unloading unit 3 m + 1.5 m | 4500 mm 1 |
| for unloading unit 4.5 m | 4500 mm |
| for unloading unit 4.5 m + 1.5 m | 6000 mm 1 |
| for unloading unit 6.5 m | 6500 mm 1 |
| for unloading unit 6.5 m + 1.5 m | 8000 mm 1 |
| Workpiece weight | |
| Max. path weight (standard/optional) | 25 kg/m / 37.5 kg/m |
| Max. raw material weight with automatic loading | |
| with LoadMaster Tube 6.5 m | 150 kg |
| mit LoadMaster Tube 6,5 m (optional) | 225 kg |
| with LoadMaster Tube 9.2 m | 150 kg |
| mit LoadMaster Tube 9,2 m (optional) | 225 kg |
| Laser-specific data - TruFlow 2000 | |
| Max. laser output | 2000 W |
| Max. sheet thickness, mild steel | 8 mm |
| Max. sheet thickness, stainless steel | 4 mm |
| Max. sheet thickness, aluminum | 3 mm |
| Laser-specific data - TruFlow 2700 | |
| Max. laser output | 2700 W |
| Max. sheet thickness, mild steel | 10 mm 2 |
| Max. sheet thickness, stainless steel | 5 mm |
| Max. sheet thickness, aluminum | 4 mm |
| Laser-specific data - TruFlow 3600 | |
| Max. laser output | 3600 W |
| Max. sheet thickness, mild steel | 10 mm 2 |
| Max. sheet thickness, stainless steel | 6 mm |
| Max. sheet thickness, aluminum | 5 mm |
| Consumption values - TruFlow 2000 | |
| Average power input in production | 20 kW |
| Consumption values - TruFlow 2700 | |
| Average power input in production | 23 kW |
| Consumption values - TruFlow 3600 | |
| Average power input in production | 26 kW |
PDF <1MB
Technical data sheet
The technical data of all product versions as a download.
Optional functions can be used to tailor the TruLaser Tube 7000 to your needs.
Autonomy
Smart profile detection
With smart profile detection, you can load even profiles with challenging geometries automatically.
SeamLine Tube
SeamLine Tube identifies weld seams or markings in order to align each tube correctly on the machine. As an option, the function can also scan the inside of the tube.
Flexible removal
The flexible part-removal station sorts your finished parts according to your needs: onto movable conveyor tables, into wire mesh boxes, or into containers. Conveyor tables at an ergonomic height make it easier to unload tubes and profiles. They also serve as a practical material buffer.
Expand your processing spectrum
Bevel cuts of up to 45°
Produce high-quality bevel cuts of up to 45°.
Technology package for tapping
As an option, the TruLaser Tube 7000 can handle additional process steps, such as tapping threads. You have the choice of inserting various tools into the standard tool adapter for the tapping of threads.
Process reliability and operator support
Single-cutting-head strategy
With the single-cutting-head strategy, you can process multiple material types and thicknesses with the laser without changing the cutting head.
Sensor system
Your machine is ahead of the game: sensors detect whether or not a part has been correctly ejected.
MobileControl app
With the MobileControl app, you can operate and monitor your machines easily and with flexibility as the app transmits the interface of the standard control panel onto the touch screen of your tablet PC. The app enables you to call up different machine information at different places in the working environment of the machine, such as the tube storage, or to change the program.

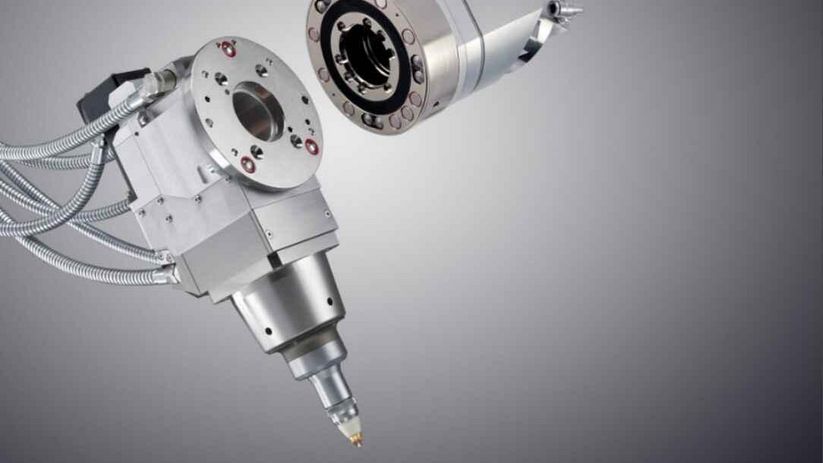

Magnetic coupling
The magnetic coupling with bellows protects the cutting head. In the event of a collision, the cutting head deflects, which prevents structural damage. It can then be moved manually into the starting position again. This means that production can be resumed after a short time.
Dot Matrix Code
Fast and process reliable – the right way to label parts with a standardized 2D industry code using a laser.
Conveyor tables
Conveyor tables at an ergonomic height make it easier to unload tubes and profiles. They also serve as a practical material buffer.
Quality

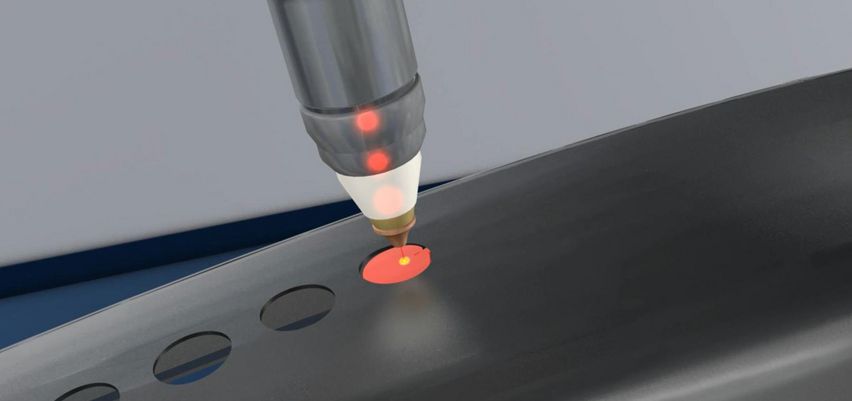

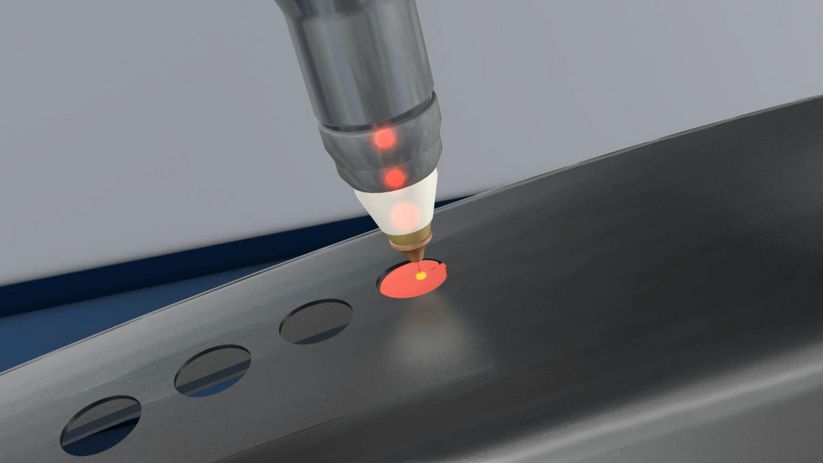

FocusLine
No more adjustments by hand: the FocusLine control mechanism keeps the focal position of the laser constant and automatically adapts it to the material.
PierceLine
PierceLine controls and monitors the piercing process. The piercing process is completed as soon as the material is completely cut through. This leads to more accurate results and shorter processing times.
Spatter protection device
The spatter protection device protects the inside of your tubes from contamination, saving rework.
TruTops Tube
With TruTops Tube, the software with an integrated 3D design module for excellent production reliability and accuracy, you can process even complex tube designs with great efficiency and speed.
TruTops Monitor
Record and analyze machine data, including idle states, error messages, causes of malfunctions, and maintenance periods for all of your production workplaces. If an idle state or a malfunction occurs, TruTops Monitor will inform you immediately about the cause, allowing you to respond quickly.
Software
The extensive range of TruTops software supports you throughout the entire production process. Control your operational workflow in a simple and targeted manner, from managing your customer orders and purchasing processes to delivery of the produced parts. Through the direct coupling with the machine control, you can keep a constant eye on the status of your orders.

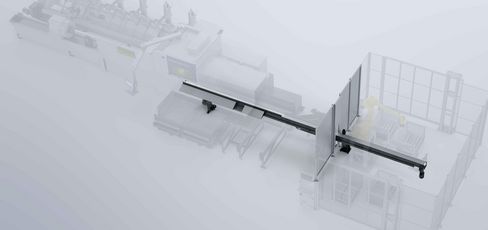

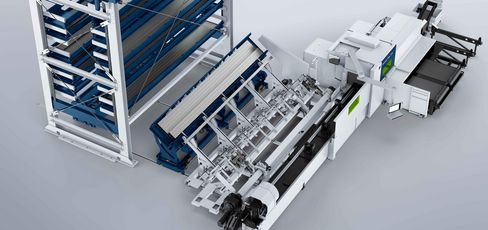

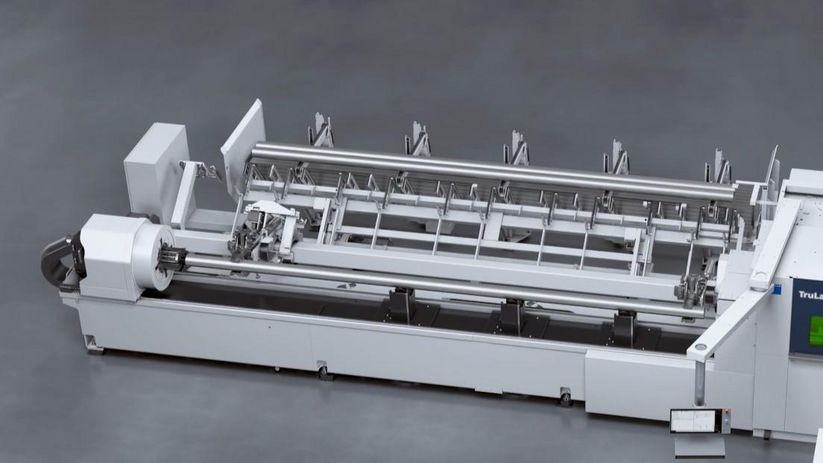

Loading
With the LoadMaster Tube loading unit, you can minimize your setup times. The practical bundle space automatically provides the unprocessed material. You can also work efficiently from lot size 1: Through the swivel-mounted conveyor system, which is particularly suitable for small parts quantities, intermediate production and special profiles. It is also possible to set up the LoadMaster turned by 180° at the front of the machine. This enables you to adapt the layout of the machine to your material flow.
This product range and information may vary depending on the country. Subject to changes to technology, equipment, price, and range of accessories. Please get in touch with your local contact person to find out whether the product is available in your country.
Footnotes-
Wert für vergrößerte Ausführungen (Option)
-
With PierceLine (option)
