| Laser Wavelength | Optical Power | Emitter Width | Fill factor | Operating Mode | |
|---|---|---|---|---|---|
| (nm) | (W) | (µm) | (%) | ||
| 875nm high power QCW bar | 875 | 1000 | 200 | 70 | QCW |
| 885nm 250W bar | 885 | 250 | 200 | 50 | CW |
| 940nm 350W bar | 938 | 150 | 200 | 70 | CW |
| 1010nm Low FF bar | 1010 | 100 | 70 | 14 | CW |
| 930nm 300W bar | 930 | 350 | 200 | 50 | CW |
| 980nm 300W bar | 980 | 340 | 200 | 50 | CW |
| 1025nm 300W bar | 1025 | 318 | 200 | 50 | CW |
| 1066nm 300W bar | 1068 | 295 | 200 | 50 | CW |
High-Performance Laser Diodes for Industrial and Direct Diode Applications
Discover industry-leading reliability and performance of TRUMPF’s laser diode bars. We offer laser diodes to meet your specific needs. A high-quality product and unmatched customer service is TRUMPF’s promise to you.
Industry-leading reliability
Using TRUMPF’s proprietary approach to facet passivation and coating allows for extremely high reliability at higher optical facet loads.
Wide wavelength selection
Available in the 790 nm to 1060 nm wavelength range.
Highest power levels
Laser diode bars with up to 400 W continuous wave power. Available as bare bar or mounted on coolers with optics pre-attached.
In-house expertise
In-house laser diode design and manufacturing in New Jersey, USA with rigorous qualification and continuous quality monitoring.
High-Reliability Diode Laser Bars for Custom Applications
TRUMPF offers a versatile range of diode laser bars featuring industry-leading reliability through our proprietary facet passivation technology. With wavelengths ranging from 790 nm to 1060 nm, our laser bars are designed to meet the demands of various applications.
We provide a wide variety of form factors, fill factors (4% to 70%), and facet reflectivity options ensuring a perfect fit for your specific requirements. From design to high-volume manufacturing, we work closely with you to deliver tailored solutions.

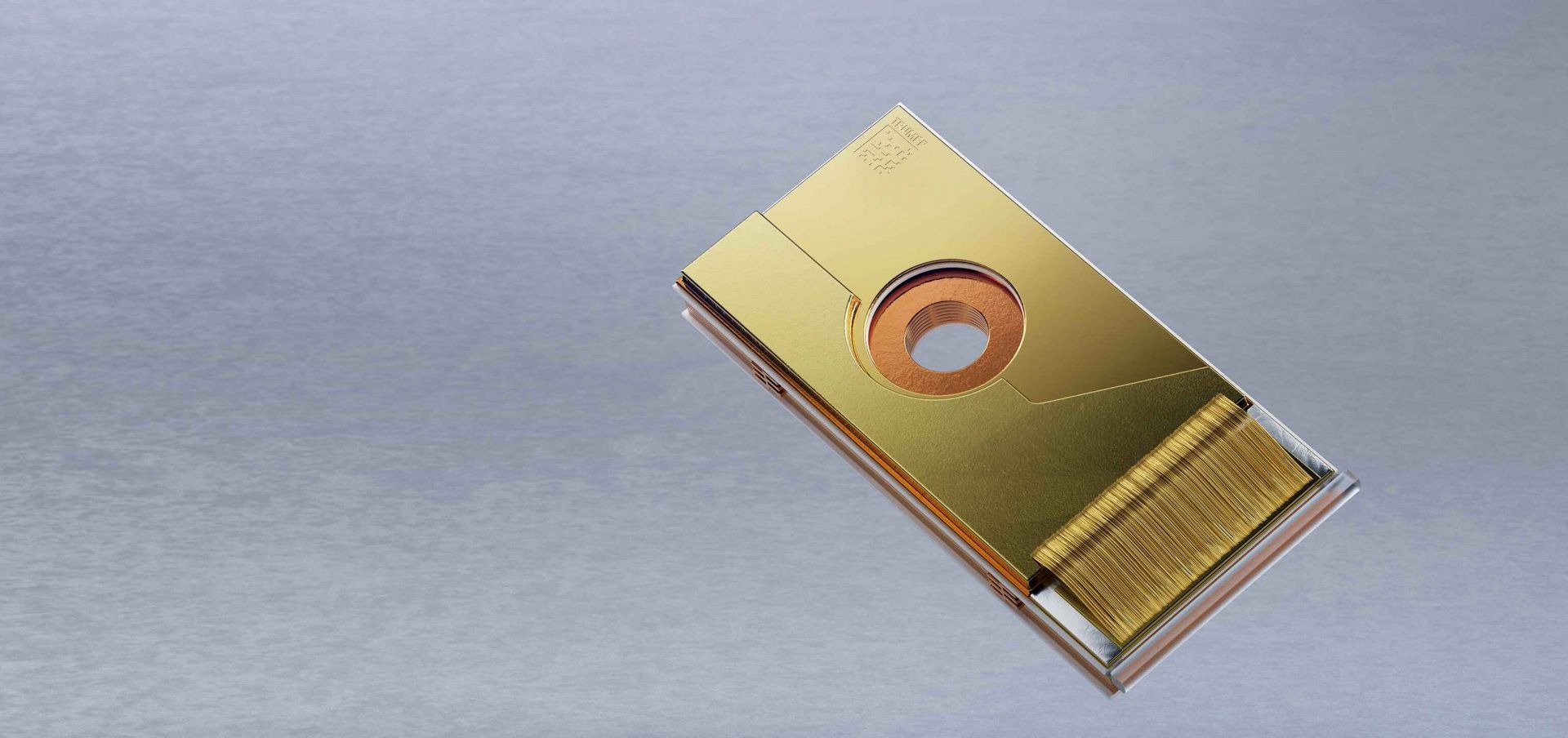

Our diode laser bars are available in bare bar format or mounted on TRUMPF’s ultra-low corrosion micro-channel coolers for superior reliability and thermal management. Additionally, we offer pre-attached optics (FAC, SAC, VBG, etc.) aligned to the mounted bars, providing a fully integrated solution for your application.
With unmatched reliability and customizable options, TRUMPF diode laser bars deliver the performance and longevity needed for your most demanding projects.
