Laser Stacks

QCW Laser Stacks

Made for your specific application: Scalable power, reliable operation, flexible configurations.

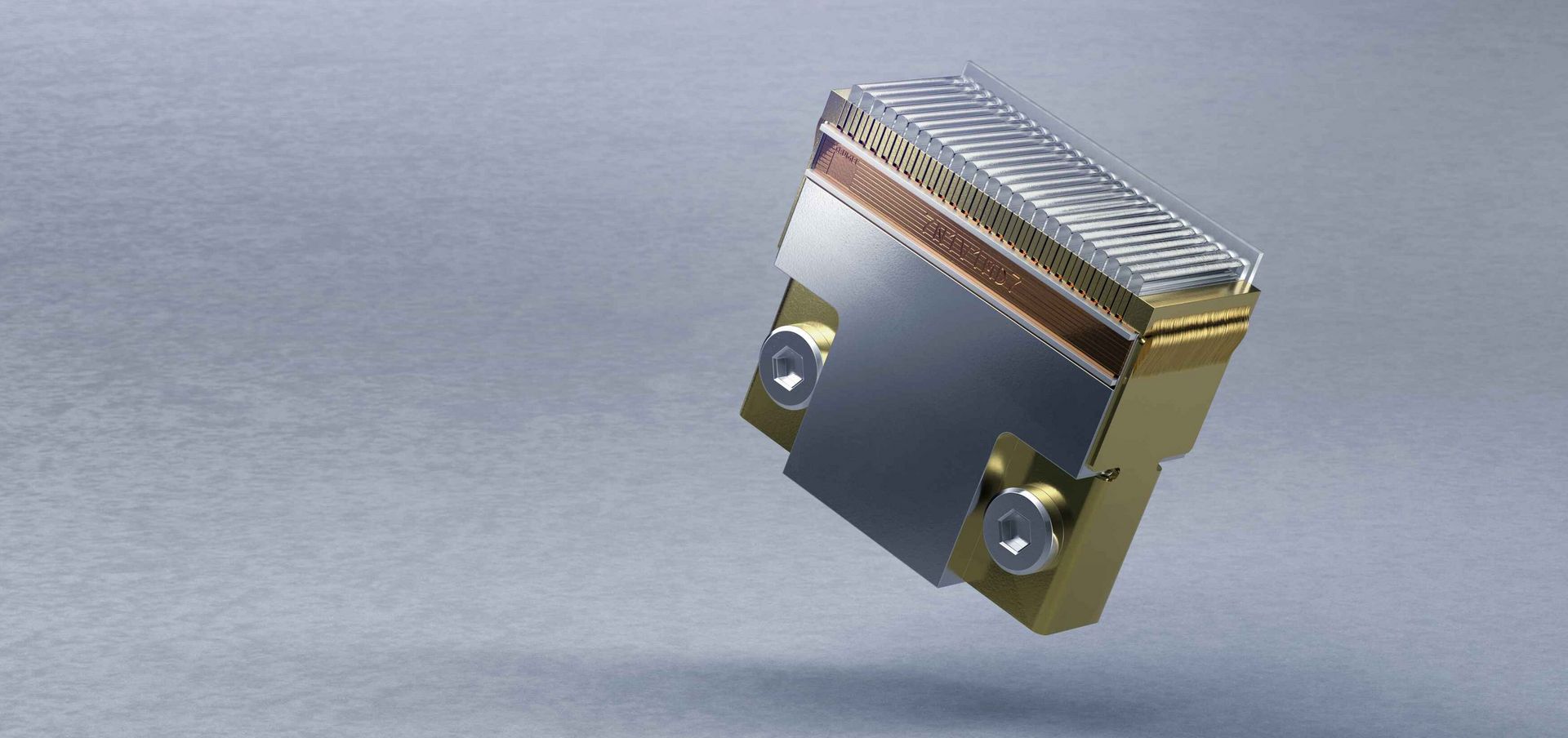

Scalable, Reliable, Flexible QCW Laser Stacks

Reliable vertical diode laser stacks and two-dimensional arrays for direct-diode and solid-state laser pumping in applications including security and defense, medical, hair removal, fusion, and welding.

Scalable power levels

Powers from 100 W/bar to 1 kW/bar with options on number of bars per stack, bar-to-bar pitch and integrated optics for beam shaping.

Reliable operation

Our industry-leading reliable diode lasers, coupled with a highly automated production line ensures a high lifetime product. Continuous monitoring systems ensure a quality product.

Flexible form factors

Our ‘Designed for Application’ philosophy allows us to quickly customize the stacks for fit your system needs.

Made in USA

Manufactured in the USA in our plant with an integrated epitaxy growth, wafer and bar fabrication, and assembly floor. Having all functions in-house allows for greater control on quality and lead times.

Product Variants

Surface mountable laser stacks (SUMO)

Stacks suitable for surface mounting where electrodes are on the side of the emitting area.

These compact pump sources for high energy lasers have a flexible design with the ability to scale the number of bars per stack and increase peak powers.

This conduction cooled stack is designed for low duty cycle (< 1%) operation and can provide > 5 kW peak power depending on the operating mode.

We work with you to design a form factor – size, pitch, laser power, heat load, beam quality, optics – to meet your requirements.

High-density configurable laser stacks (HIDEC)

These stacks are specially designed to enable high-density 2-D array stacking with the cooling and electrical connections under the emitting area.

This stack is designed for low duty cycle (< 1%) operation and can provide very high peak powers (1 kW/bar) and with a small bar-to-bar pitch. The build standard allows it to achieve high lifetime and performance levels for the most demanding applications. Available in both conduction cooled and water-cooled formats.

We work with you to design a form factor – size, pitch, laser power, heat load, beam quality, optics – to meet your requirements.

Technical Data

	Wavelength	Peak Power	Number of Bars	Operating condition	Cooling
	(nm)	(kW)		(%, ms)
1kW QCW conduction cooled stack	801	1	5	1, 0.3	Conduction cooled
5kW QCW conduction cooled stack	871	5	10	1, 0.5	Conduction cooled
45kW QCW active cooled stack	871	45	50	1, 0.4	Water cooled
25kW QCW active cooled stack	940	25	32	1, 0.5	Water cooled

Datasheet: QCW laser stacks
