TruFiber P
Tailor-made for your application
| Product options TruFiber P | Laser power range | Wavelength | Typical beam quality | Dimensions (W x H x D) | Electrical connection (voltage) | Electrical connection (frequency) | Interfaces |
|---|---|---|---|---|---|---|---|
|
TruFiber 50x P
(FD89)
|
10 W - 500 W | 1071 nm | 0.38 (SM), ≥ 2 (MM) mm▪mrad | 448 mm x 525 mm x 971 mm | 380 V - 460 V | 50 Hz - 60 Hz | Digital I/O, Profibus, DeviceNet, Powerlink, Profinet, Ethercat, Ethernet/IP, Interbus, Analog input (ISA), OPC-UA |
|
TruFiber 100x P
(FD89)
|
20 W - 1000 W | ||||||
|
TruFiber 150x P
(FD89)
|
30 W - 1500 W | ||||||
|
TruFiber 200x P
(FD89)
|
40 W - 2000 W | ||||||
|
TruFiber 300x P
(FD45 & FD89)
|
60 W - 3000 W | 1071 & 1080 nm | ≥ 2 (MM) mm▪mrad | 600 mm x 1040 mm x 950 mm | |||
|
TruFiber 400x P
(FD45 & FD89)
|
80 W - 4000 W | ||||||
|
TruFiber 600x P
(FD45 & FD89)
|
120 W - 6000 W |
The specialist
The TruFiber P series was developed for a wide range of production requirements and therefore offers a variety of configuration options: As a singlemode laser with up to 2 kW for high-precision applications or as a multimode variant with up to 6 kW for applications with a higher welding depth or welding speed - all in a compact housing. Each variant can be combined with the complete laser system technology from TRUMPF and supplemented by comprehensive services. The result: a flexibly configurable complete package with the optimum value for money for your specific production requirements.
What makes the TruFiber P so special
The TruFiber P is tailored to specific applications. The selection of singlemode or multimode variants, suitable fiber diameters and lengths as well as suitable optics and sensors provides exactly the right solution package for a wide range of processing tasks.
BrightLine Mode technology enables the combination of singlemode and multimode beams in the patented TRUMPF 2-in-1 laser light cable. This enables particularly high-quality weld seams to be produced on copper, aluminum, mild steel or stainless steel with minimal spatter formation.
TruControl is the fastest and most intelligent laser control system on the market. This allows you to control your laser directly and without external modules. The system not only controls the laser power in real time, but also allows optics and sensors to be programmed.
With a fiber diameter of just 25 micrometers, the singlemode variant offers the necessary beam quality for high-precision applications. Ideal for the finest weld seams and cuts with the highest quality requirements.
Further advantages
-
Worldwide consultation and fast support
Why have five service agents when one is enough? We offer you a complete system from a single source - and are there for you 24/7, worldwide. Our experts provide you with comprehensive advice on application, materials, process parameters and the optimum combination of laser, optics and sensor technology. -
Safe and reliable with PLe
The TruFiber S fulfills the highest security level, Performance Level e (PL e). Redundant safety systems and fast error detection increase your safety in production - without additional measures on the laser.
The TruFiber P in use
Whether precision work with singlemode or robust multimode applications with high energy input: The TruFiber P series is designed as a modular system and thus covers a broad spectrum - from medical technology to electromobility. Thanks to its compatibility with the TRUMPF optics and sensor portfolio, the laser can be optimally adapted to a wide range of materials and processes.
Gear welding for lightweight components
Gear welding for lightweight components
Modern gearboxes must become ever more compact and lighter without compromising on performance. The components are often made of different metals, which places high demands on the welding process.
With outputs of up to 6 kW and outstanding beam quality from fibers with a small core diameter, TruFiber P lasers are ideal for precise deep hole welding. The components are often made of different metals, which places high demands on the welding process.
Busbar welding of cylindrical battery cells
Busbar welding of cylindrical battery cells
During busbar welding, battery terminal contacts must be reliably connected - with low-spatter, conductive and minimal heat input. Particularly with cylindrical cells, the smallest contact surfaces must be welded precisely and reproducibly to ensure a stable and durable connection.
The TruFiber P singlemode lasers offer the highest beam quality for the smallest welding spots and enable the finest, reproducible seams even on the smallest components. BrightLine mode reduces spatter formation even at high welding speeds.
Fine welding in medical technology
Fine welding in medical technology
Maximum precision and reproducible weld seams are essential in the manufacture of endoscopic instruments. The surfaces must be flawless and must not require any post-processing, while at the same time the smallest components must be reliably connected.
The outstanding single-mode beam quality of the TruFiber P lasers enables the smallest welding spot diameters for precise, fine weld seams even on miniaturized components, while BrightLine Mode minimizes spatter formation. With active power regulation and appropriate process monitoring, we guarantee consistent quality for your medical technology applications.
Laser metal fusion for 3D printing
Laser metal fusion for 3D printing
Metallic 3D printing requires precise energy input in order to selectively melt metal powder layer by layer. Particularly in demanding industries such as dental and medical technology or aerospace, complex geometries with high material quality are required.
The singlemode lasers of the TruFiber P family enable maximum design freedom as well as material and weight reduction thanks to their precisely focusable beam quality. The stable laser power and beam guidance guarantee reproducible results and high-quality component properties - even with filigree structures and complex internal contours that could not be produced conventionally.
One system. Everything TRUMPF.
A laser alone is not a solution. Only in combination with precise optics, intelligent sensor technology and tailor-made services can a system be created that makes your applications possible and ensures reliable processes. With TRUMPF, you have a partner who not only supplies technology, but also reliable process results - solutions that measurably advance your production and pay off through sustainable success.
Optics
Guide and focus the laser beamOverview
Optics focus the laser beam precisely onto the workpiece - exactly at the point where the processing takes place. TRUMPF offers two variants for this:
Classic processing optics (BEO) focus a laser beam on a fixed processing point. To cover the processing surface, either the optics or the workpiece must be moved.

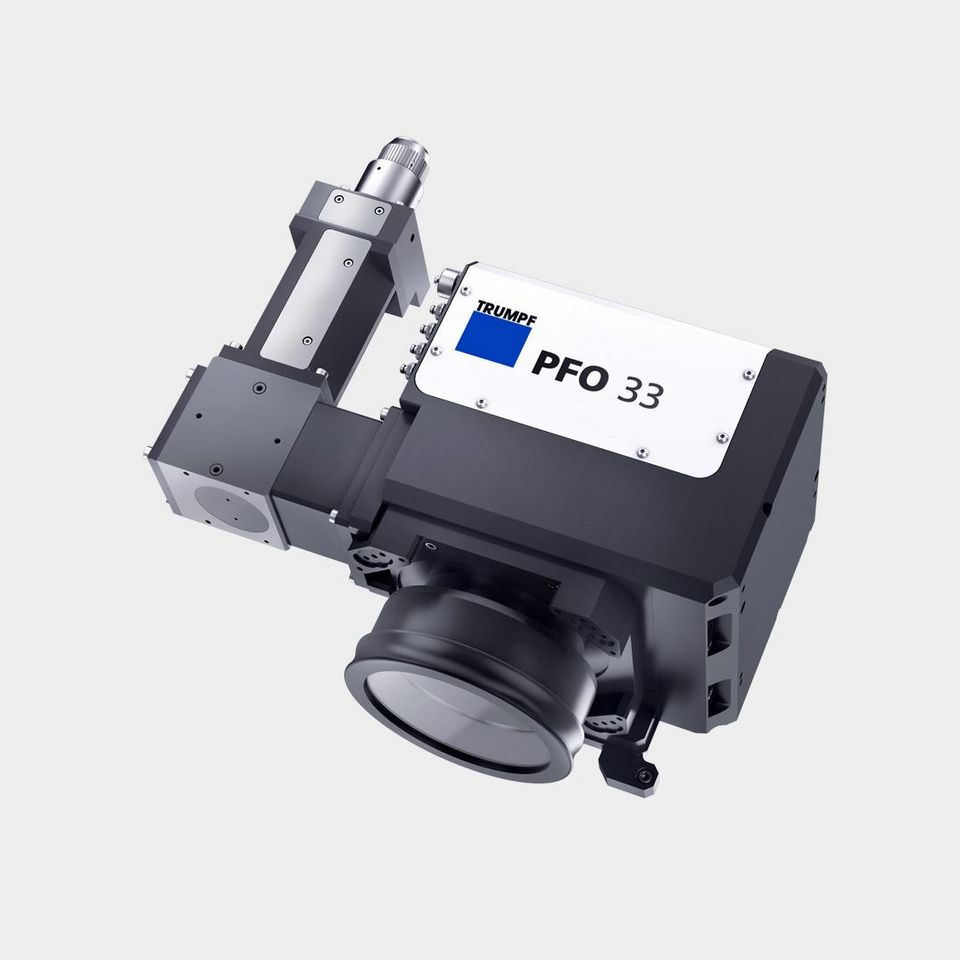

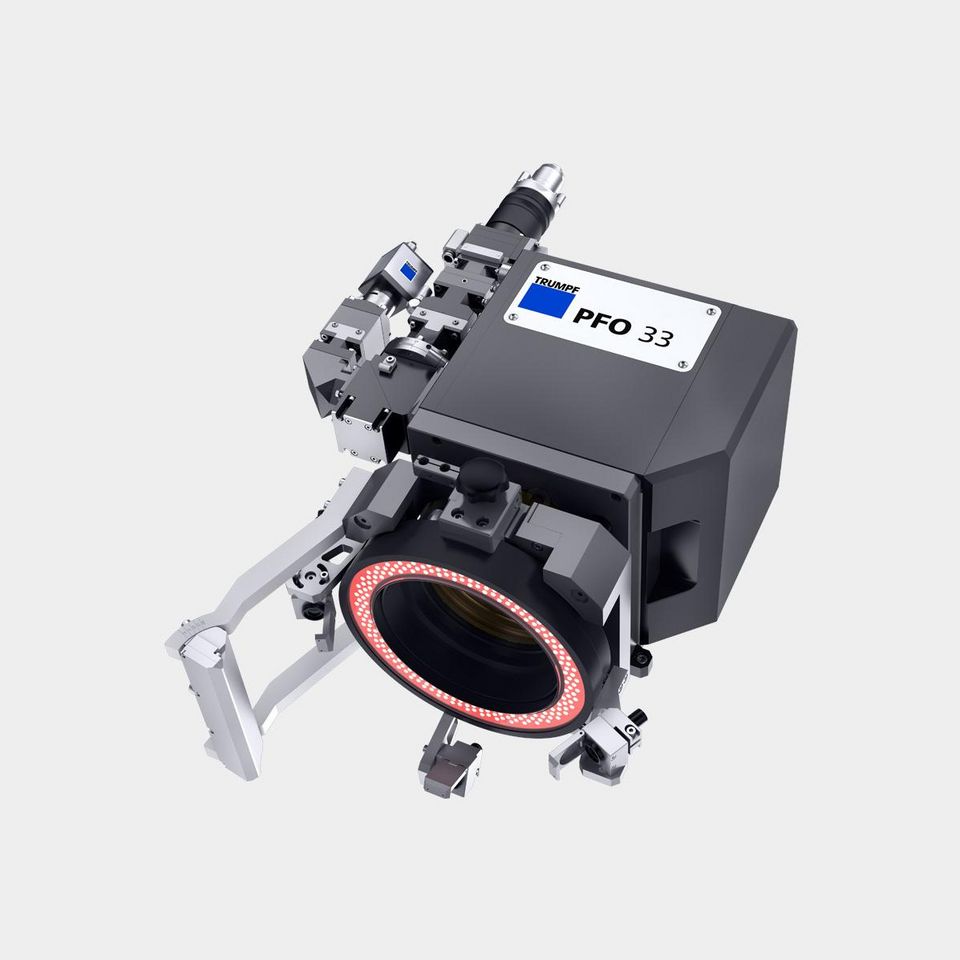

Programmable focusing optics (PFO) use mirrors to flexibly direct the laser beam to any position in the processing field - without any mechanical movement of the workpiece or optics. All optics can be combined via an interface with various sensors for process monitoring - from TRUMPF or third-party suppliers.
Services for maximum system availability
to keep your production runningOverview
How much standstill can you afford? Production downtime costs time, money - and, in the worst case, customers. To ensure that your lasers and laser systems remain operational in the long term, we support you with sophisticated services. This includes predictive condition monitoring, rapid assistance in the event of an emergency and individual service packages at fixed, predictable costs - tailored precisely to your needs.
Condition Monitoring for lasers and laser systems
With Condition Monitoring, our experts - supported by TRUMPF's own algorithms - keep a constant eye on the condition of your lasers. Critical changes are detected at an early stage before unplanned downtime occurs.
Technical Service
No matter where you produce: Our service engineers will be there for you quickly if the worst comes to the worst. Thanks to in-depth manufacturer know-how and regular training, they have outstanding expertise - and ensure that your lasers and laser systems are quickly ready for use again.
Remote Support
In the event of a fault, every minute counts: With TRUMPF Remote Support, you receive immediate help from our experts - via secure remote access, without having to travel or wait for a service technician.
Genuine Parts
Our TRUMPF Genuine Parts are perfectly matched to your lasers and laser systems, available worldwide - and can be delivered to you quickly in an emergency. For maximum performance, minimum downtime and long-term investment security.
Service Agreements
As much service as you need: Our Service Agreements offer graduated service packages - tailored precisely to your needs and at fixed, predictable costs. From Remote Support and maintenance to full service packages.
Services for performance optimization
so that performance becomes best performanceOverview
Do you want to get more out of your production? Unclear data, complex requirements or unexpected errors often slow down production. Our solutions help you to overcome these hurdles - with structured data management, individual application support and training or AI-supported process optimization. This allows you to improve your processes, reduce errors and react more flexibly to new challenges.
Quality Data Storage
Use Quality Data Storage to record the process data of your lasers and laser systems locally, seamlessly and in a structured manner - audit-proof, transparent and optimally prepared for verifications, analyses and process optimizations.
Smart View for lasers and laser systems
Keep an eye on all relevant data: With Smart View, you can create individual dashboards with precisely the information and key figures that are crucial for the optimal use of your lasers and laser systems - from performance data to statuses and energy consumption through to program changes.
Easy Model AI
More independence from component and ambient conditions: EasyModel AI is an AI training tool that, in combination with TRUMPF's VisionLine Detect image sensor technology, significantly improves feature detection before welding - even in the presence of interfering influences such as shadows, reflections or dirt. The laser beam is positioned precisely and an even more exact welding result is achieved, which leads to higher production quality, shorter cycle times and more robust processes.
Training and education
Whether operation, programming or maintenance: With TRUMPF training courses &, your employees will get the most out of machines and software - and master changing orders and new customer requirements with confidence.
Advice in our application centers
In our laser application centers at eight locations worldwide, we work with you to optimize processes, solve application-specific challenges - and thus create the basis for consistent quality, shorter start-up phases and a faster time to market.
Is the laser suitable for your project?
Let us find out!
In our laser application centers (LAC), we work with you to determine the optimum parameters for your application - even directly on your component.
Questions? Ideas? Concrete plans?
We can help you!
Whether technical details, prices or individual requirements: Whatever your concerns - we will give you the answer that will help you move forward.
| Product |
TruFiber POur tailor-made products - individually configurable for precise details or broader seam requirements, modularly expandable, at the optimum price |
TruFiber SOur high-end fiber lasers - made for efficient welding: Compact design, unique features, flexibly expandable |
TruFiber GOur purists among the fiber lasers - the economical laser source for integrators |
TruFiber P CompactOur compact fiber lasers - for processing the smallest components |
|---|---|---|---|---|
|
|
|
|
|
|
| Laser power range | 0.5 kW - 6 kW | 3 kW - 12 kW | 1 kW - 12 kW | 0.1 kW - 2 kW |
| Laser outputs | 1 | 2 | 1 | 1 |
| Modular selectable optics/sensor system | yes | yes | no | no |
| Beam-shaping for low-spatter welding | yes | yes | yes | no |
| Available digital solutions | yes | yes | no | no |
| LLK version | LLK-D, PIPA-Q | LLK-D/X | LLK-D, PIPA-Q | PIPA-C, PIPA-Q |
| Mean output power (range) | 5 W - 12 W |
